Pacific Laser Systems | SKU: PLSH2Z | Barcode: 095969878418

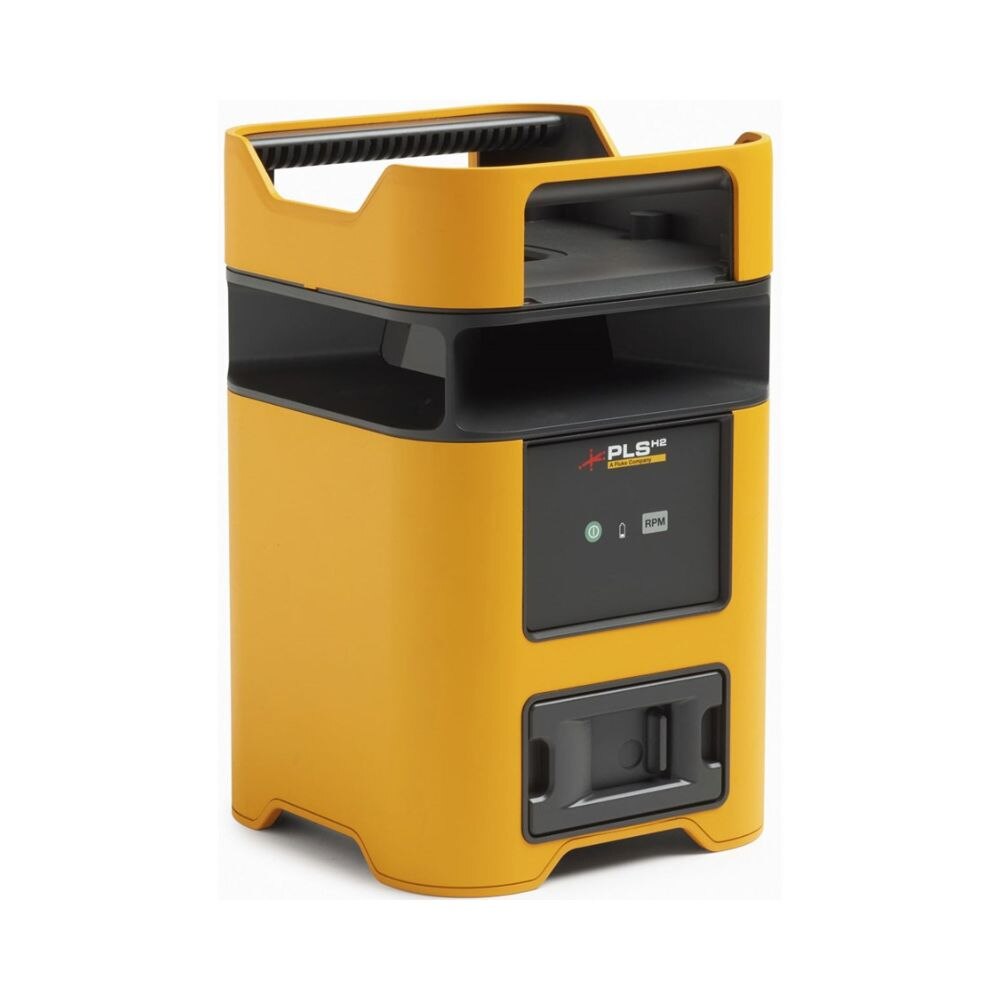

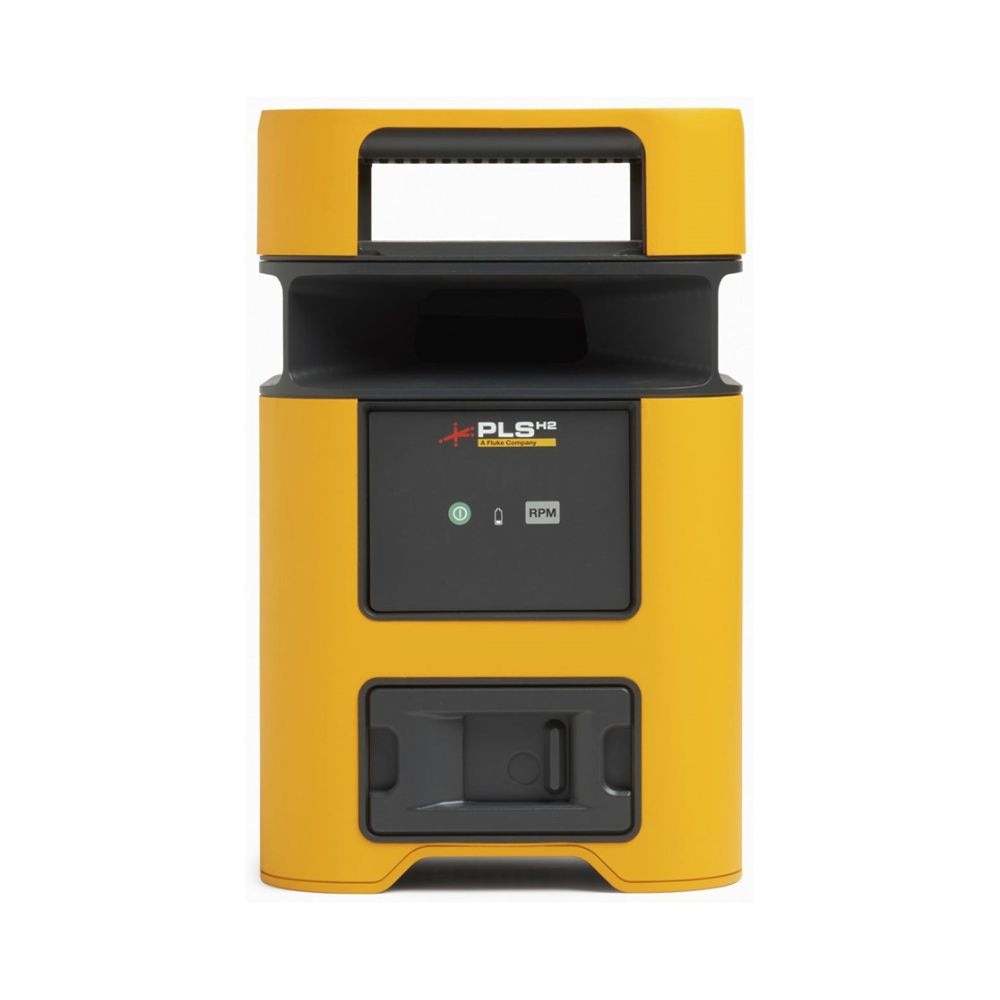

Pacific Laser Systems 5022470 PLS H2 Z, Horizontal Red Rotary Laser Bare Tool

Name: Pacific Laser Systems 5022470 PLS H2 Z, Horizontal Red Rotary Laser Bare Tool
Brand: Pacific Laser Systems
SKU: 428629
Price: 1058.87 USD
Availability: BackOrder

Free Shipping

$1,058.87 ~~$1,159.99~~

Description

Pacific Laser Systems 5022470 Description

The PLS H2 Bare Tool is a red horizontal-only rotary laser level for level alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

Pacific Laser Systems 5022470 Includes

(1) PLS H2 Rotary laser level
(1) PLS BP10 Alkaline Battery Tray
(4) D Batteries
(1) PLS C19 Carrying Case
(1) Quick Reference Guide
(1) Safety Documentation

Pacific Laser Systems 5022470 Features

Red Horizontal Rotary Laser Level
Class II Red Laser
Self-leveling within ±5 degrees
One-Button Operation
Alkaline Battery Tray

Rotary levels	PLS H2
Laser	Class II red

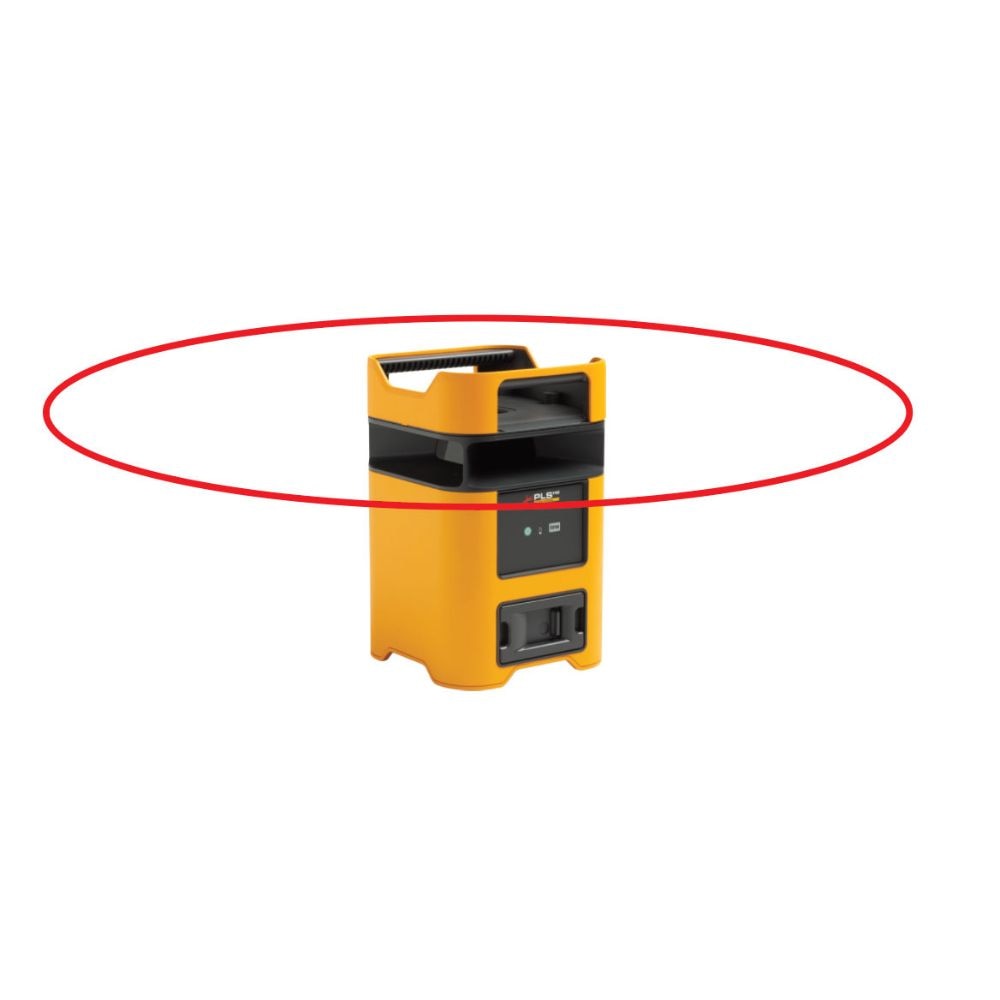

Laser axis	Horizontal only
Accuracy	≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
Auto-leveling range	± 5-degrees
Manual slope range	± 5-degrees
Working range	Without XLD laser detector	≤ 30 m (100 ft)
Working range	With XLD laser detector	≤ 300 m (1000 ft)
Weight	2.89 kg (6.4 lb)
Drop test	1 m
IP rating	IP67
Operating temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Battery	4 x D Alkaline or NiMH rechargeable
Battery life	> 60 hours

Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
	Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
	Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
Korea (KCC)	Class B Equipment (Broadcast communications equipment for home)
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Rotary levels

PLS H2

Laser

Class II red

Laser axis

Horizontal only

Accuracy

≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)

Auto-leveling range

± 5-degrees

Manual slope range

± 5-degrees

Working range

Without XLD laser detector

≤ 30 m (100 ft)

With XLD laser detector

≤ 300 m (1000 ft)

Weight

2.89 kg (6.4 lb)

Drop test

1 m

IP rating

IP67

Operating temperature

-20 °C to 50 °C (-4 °F to 122 °F)

Battery

4 x D Alkaline or NiMH rechargeable

Battery life

> 60 hours

Electromagnetic Compatibility (EMC)

International

IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B

Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object

Korea (KCC)

Class B Equipment (Broadcast communications equipment for home)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
