Pacific Laser Systems | SKU:
PLSHV2GZ
Pacific Laser Systems 5022535 PLS HV2G Z, Manual Slope Green Rotary Laser Bare Tool
Free Shipping
$1,724.33
$1,888.99
Unit price
/
Unavailable
Description
Description
Pacific Laser Systems 5022535 Description
The PLS HV2G Bare Tool is a green horizontal with vertical plumb point rotary laser level for level, slope, and square alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

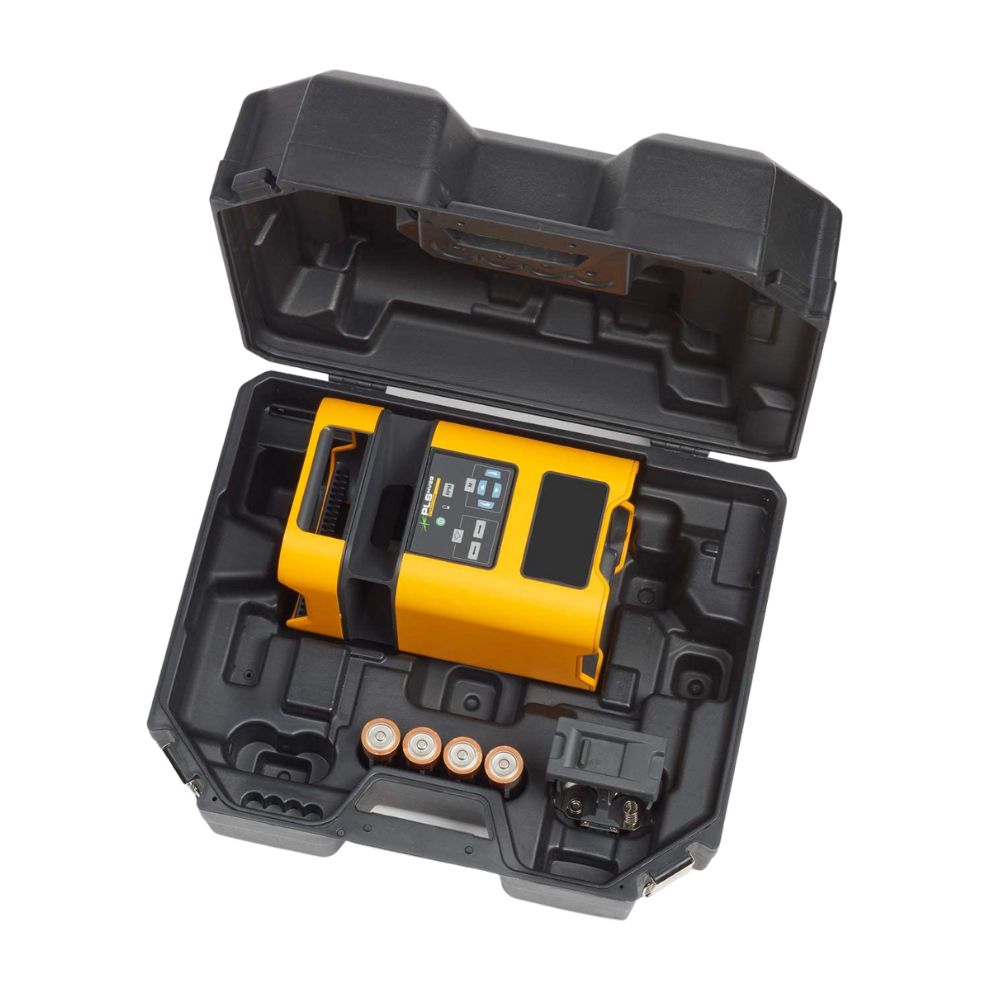

Pacific Laser Systems 5022535 Includes
- (1) PLS HV2G
- (1) PLS BP10 Alkaline Battery Tray
- (4) D Batteries
- (1) PLS C19 Carrying Case
- (1) Quick Reference Guide
- (1) Safety Documentation
Pacific Laser Systems 5022535 Features
- Green Horizontal/Vertical Rotary Laser Level
- Class II Green Laser
- Self-leveling within ±5 degrees
- Dual Manual Slope
- Up-Point for Layout Tasks
- Alkaline Battery Tray
| Rotary levels | PLS HV2R | PLS HV2G | |
|---|---|---|---|
| Laser | Class II red | Class II green | |
| Laser axis | Horizontal and Vertical | Horizontal and vertical | |
| Accuracy | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | |
| Auto-leveling range | ± 5-degrees | ± 5-degrees | |
| Manual slope range | ± 5-degrees | ± 5-degrees | |
| Working range | |||
| Without XLD laser detector |
≤ 30 m (100 ft) | ≤ 30 m (100 ft) | |
| With XLD laser detector |
≤ 300 m (1000 ft) | ≤ 300 m (1000 ft) | |
| Weight | 3 kg (6.6 lb) | 3 kg (6.6 lb) | |
| Drop test | 1 m | 1 m | |
| IP rating | IP67 | IP67 | |
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) | -20 °C to 50 °C (-4 °F to 122 °F) | |
| Battery | 4 x D Alkaline or NiMH rechargeable | 4 x D Alkaline or NiMH rechargeable | |
| Battery life | > 60 hours | > 60 hours | |
| Electromagnetic compatibility (EMC) | |||
| International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object |
||
| Korea (KCC) | Class B Equipment (Broadcast communications equipment for home) | ||
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | ||
