Exact | SKU:
7048121US
Exact Pipe Beveling System PB220E Pipe Capacity 25mm-220mm (0.98"-8.6")
Free Shipping
$3,349.50
Unit price
/
Unavailable
Description
Description
Pipe Beveling System PB220E Pipe Capacity 25mm-220mm (0.98"-8.6") 7048121US Includes

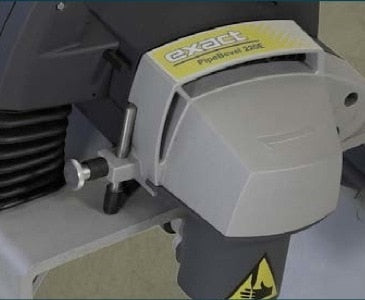

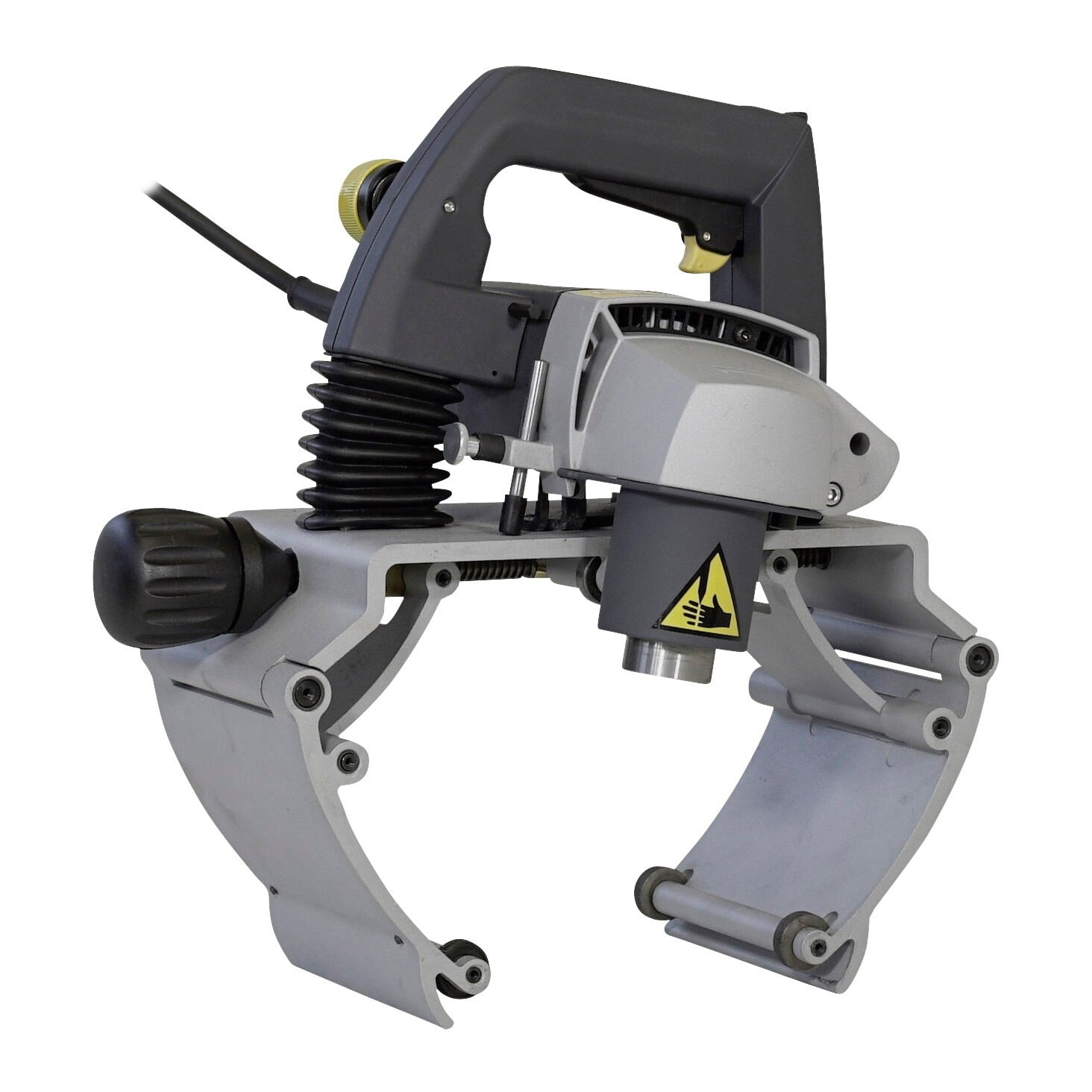

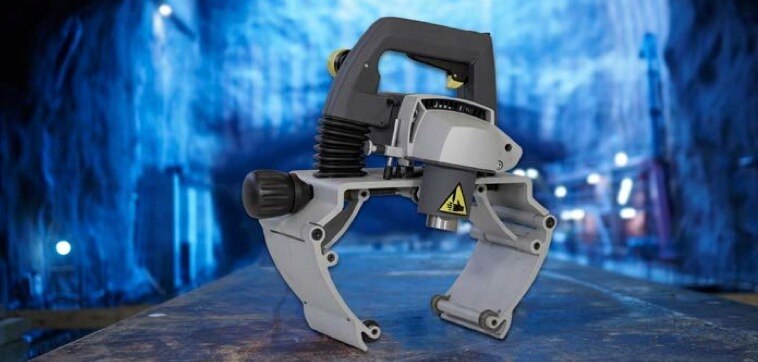

- Exact Pipe Bevel 220E The Exact PipeBevel 220E is a portable and lightweight pipe beveller that produces continuous good results for on-site pipe bevelling applications. With this machine you will make easy, fast and consistent bevels to a variety of pipe materials of steels and stainless steels. The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 25 mm – 220 mm (0.98”- 8.6”) and up with a maximum wall thickness of 10mm (0.39”). The cutting head of the beveller has 3 cutting tips, each of them having 4 cutting edges to rotate once becoming blunt. Thanks to this, you will have a prolonged beveller blade tip life. The cutting tips are also ordered separately.
- (1) PipeBevel 220E Beveller
- (2) Pipe Supports
- (1) Allen Key (5 mm)
- (1) Shoulder Bag
Pipe Beveling System PB220E Pipe Capacity 25mm-220mm (0.98"-8.6") 7048121US Features
- Suitable for pipes of steels and stainless steels
- Suitable for pipe sizes of 25 mm – 220 mm (0.98”- 8.6”) and up with a wall thickness of 10mm (0.39”).
- Does not create flames or sparks.
- External cutting head is available in three bevel angles (30°, 37.5° and 45°).
- Fast and simple set-up.
Pipe Beveling System PB220E Pipe Capacity 25mm-220mm (0.98"-8.6") 7048121US Specifications
| Pipe OD | 25mm-220mm (0.98"-8.6") |
| Max. Wall Thickness | 10mm (0.39") Steel |
| Pipe Material | Aluminum, Stainless Steel, Steel |
| Voltage / Power / Current | 220-240V / 1400W / 6.1A |
| No-Load Speed | 3500-8000 r/min |
| Blade Holder Diameter | 48 mm (1.89") |
| Different Bevel Angles | 30° | 37.5° | 45° |
| Weight | 14.8 lbs |
