Exact | SKU:
7048122US
Exact Pipe Beveling System PB360E Pipe Capacity 110mm-360mm (4"-15")
Free Shipping
$3,845.00
$4,037.25
Unit price
/
Unavailable
Description
Description
Pipe Beveling System PB360E Pipe Capacity 110mm-360mm (4"-15") 7048122US Includes

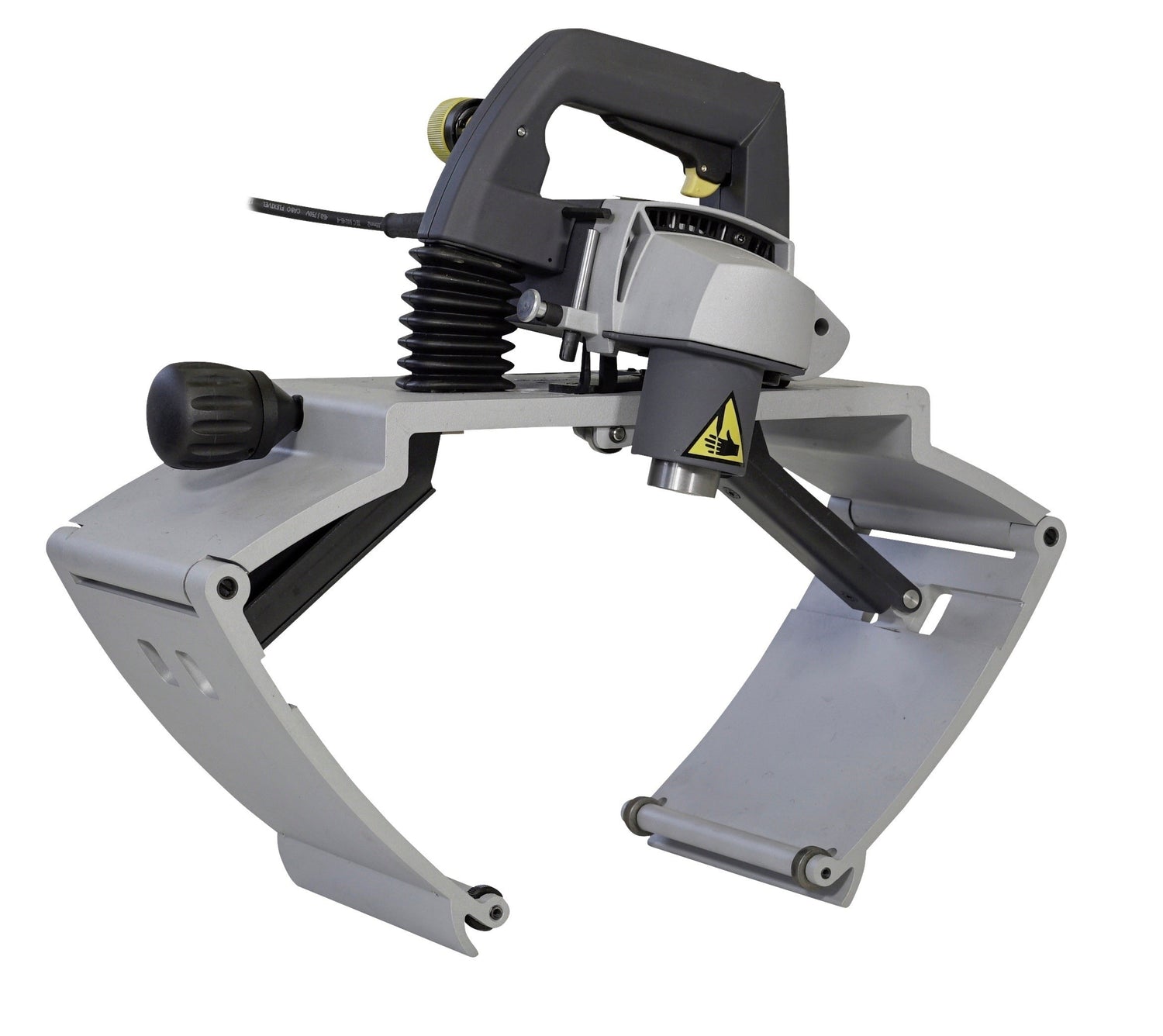

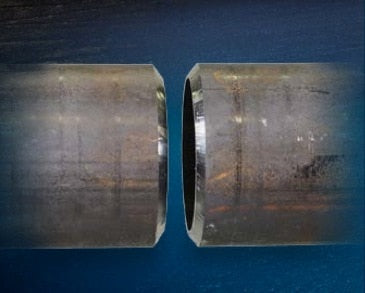

- Exact Pipe Bevel 360E The Exact PipeBevel 360E is a portable and easily transportable pipe beveller that produces continuous good results for on-site pipe bevelling applications. With this machine you will make easy, fast and consistent bevels to a variety of pipe materials of steels and stainless steels. The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 110 mm – 360 mm (4.33”- 14.17”) and up with a maximum wall thickness of 10mm (0.39”). The built-in stopper feature enables and makes it easy for the operator to make similar additional bevels to the same pipe outside diameter. This reduces the cycle times dramatically and ultimately improves the workflow.
- (1) PipeBevel 360E Beveller
- (2) Pipe Support
- (1) Allen Key (5 mm)
- (1) Shoulder Bag
- (1) Operating Instructions
Pipe Beveling System PB360E Pipe Capacity 110mm-360mm (4"-15") 7048122US Features
- Suitable for pipes of steels and stainless steels
- Does not create flames or sparks.
- External cutting head is available in three bevel angles (30°, 37.5° and 45°).
- Built-in bevel stopper for consistent bevels
Pipe Beveling System PB360E Pipe Capacity 110mm-360mm (4"-15") 7048122US Specifications
| Pipe OD | 110mm-360mm (4"-15") |
| Max. Wall Thickness | 10mm (0.39") Steel |
| Pipe Material | Aluminum, Stainless Steel, Steel |
| Voltage / Power / Current | 220-240V / 1400W / 6.1A |
| No-Load Speed | 3500-8000 r/min |
| Blade Holder Diameter | 48 mm (1.89") |
| Different Bevel Angles | 30" | 37.5" | 45° |
| Weight |
