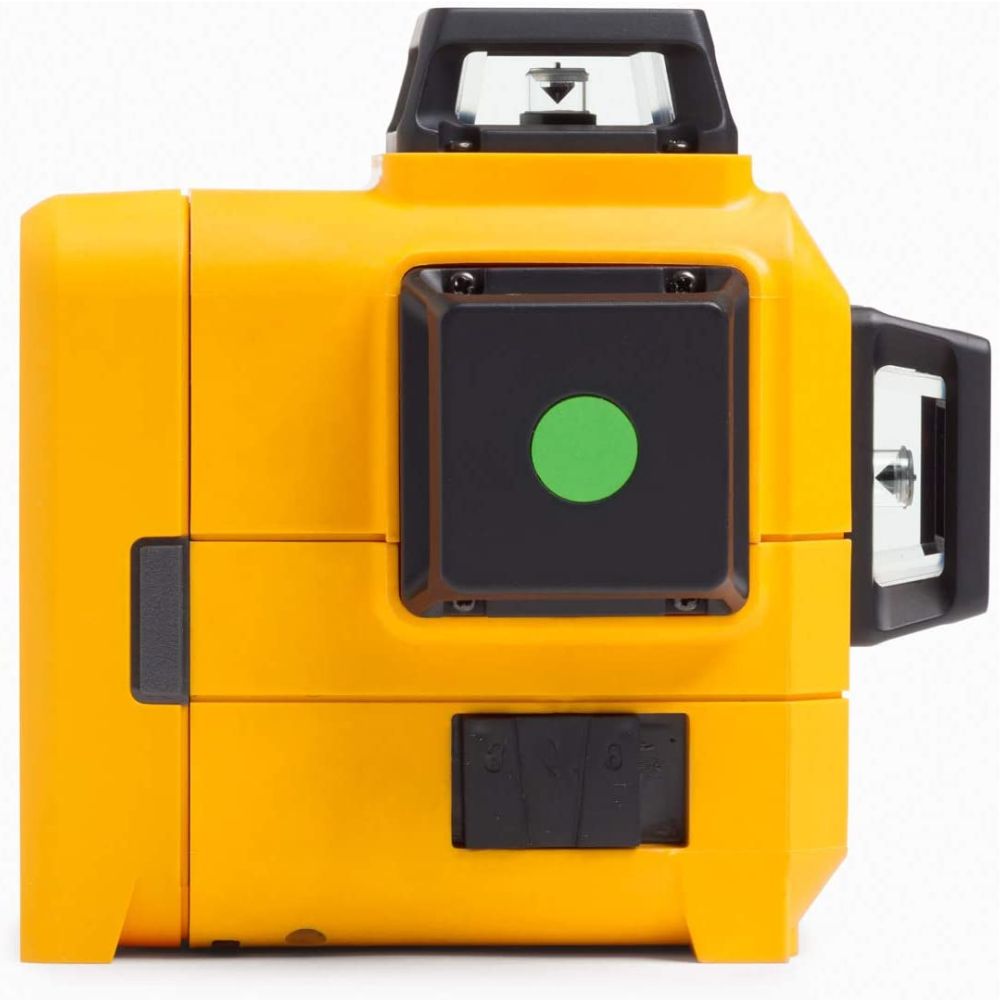

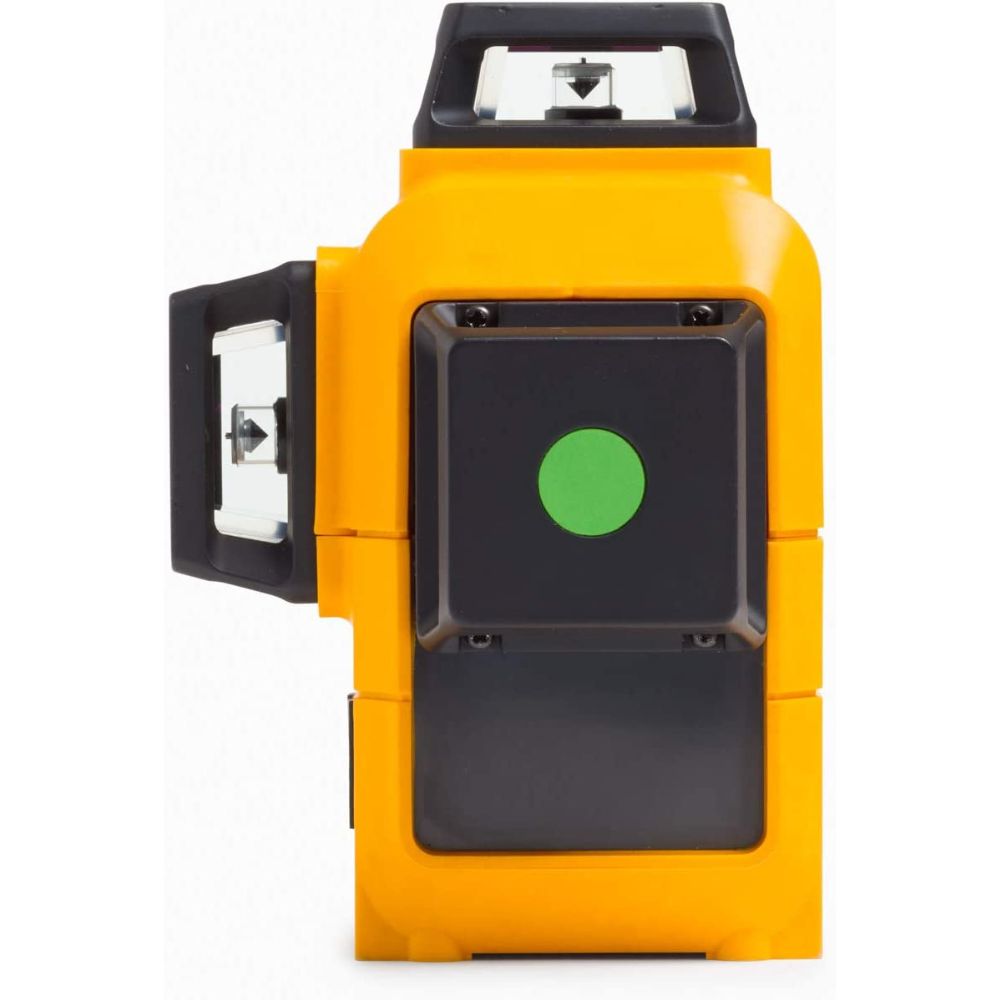

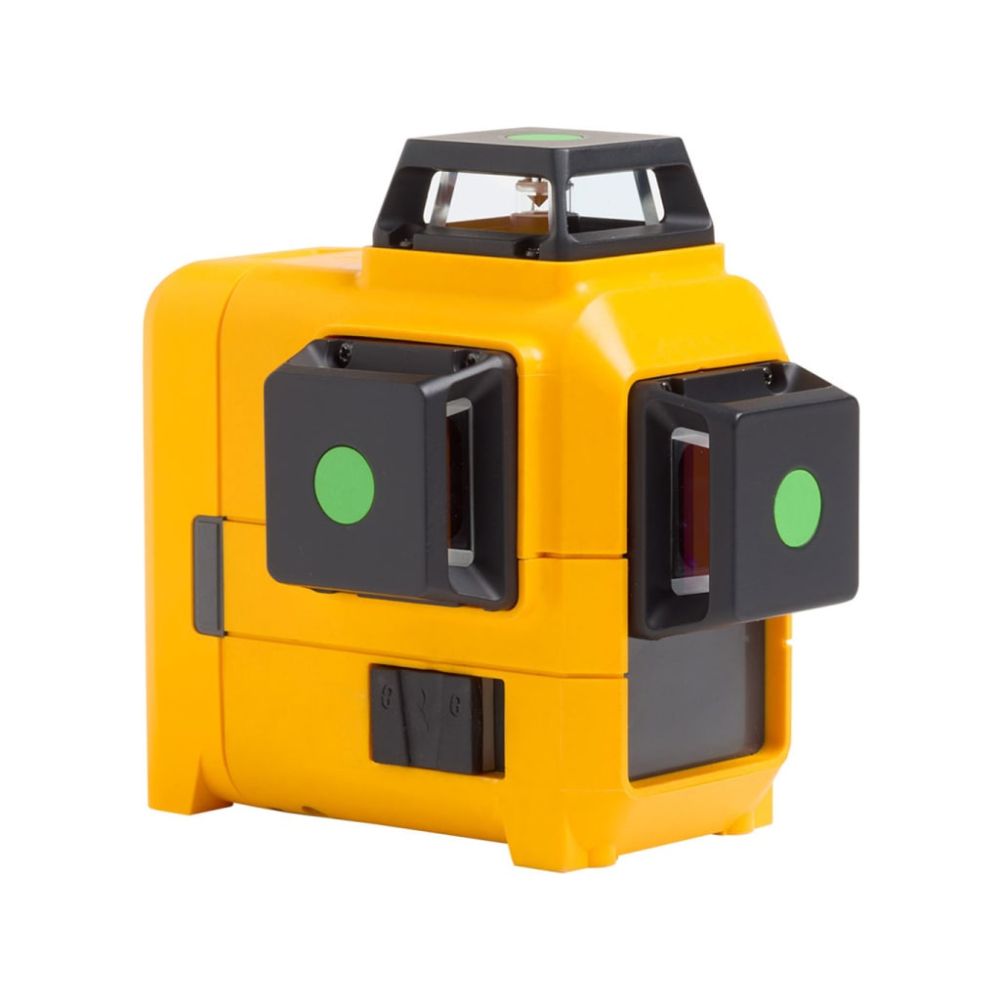

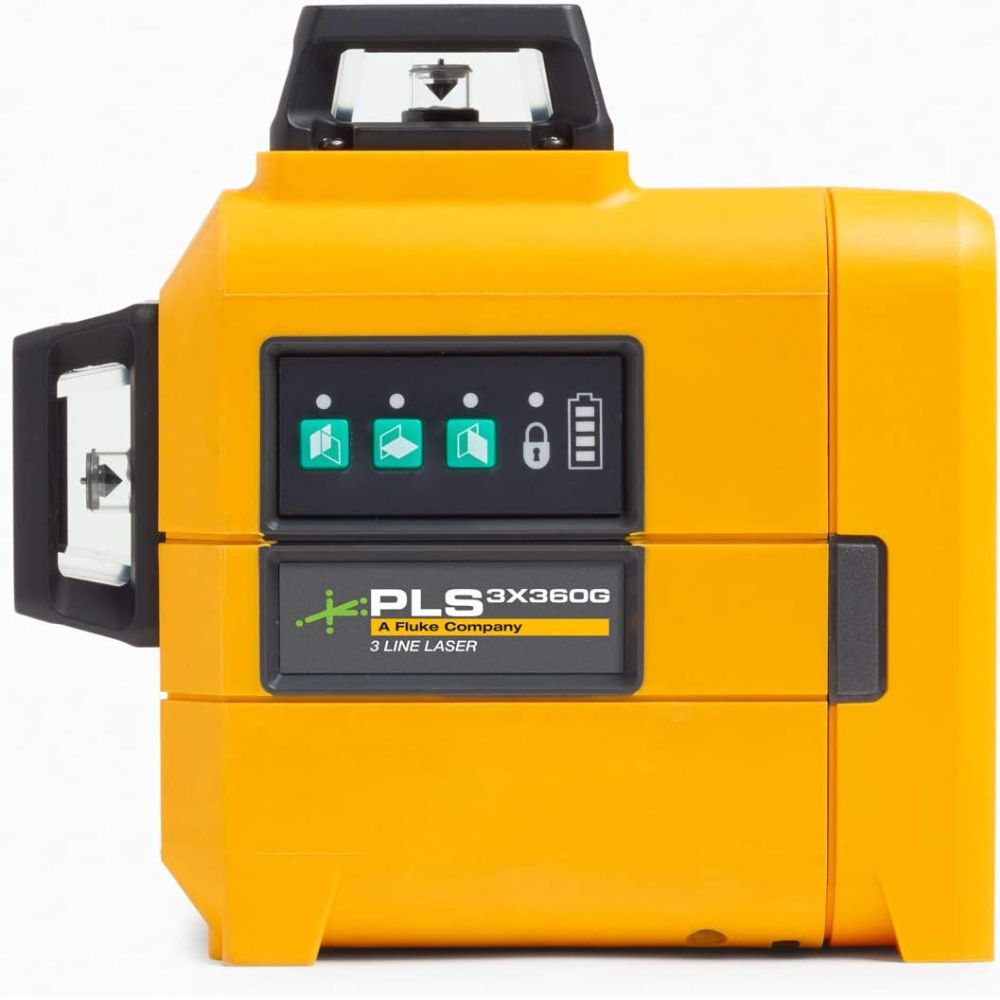

PLS 3X360G KIT 3X360 Green line laser level, RBP5, Case and Bracket
Description
Description
3X360 Green line laser level, RBP5, Case and Bracket 5114153 Description
Lighten your tool-belt with the 3x360 green laser levels. These versatile tools combine all the best qualities of your favorite PLS gear, now with best-in-class accuracy and new features such as a rechargeable battery pack with charging adapter and a pendulum lock for added protection during transportation.

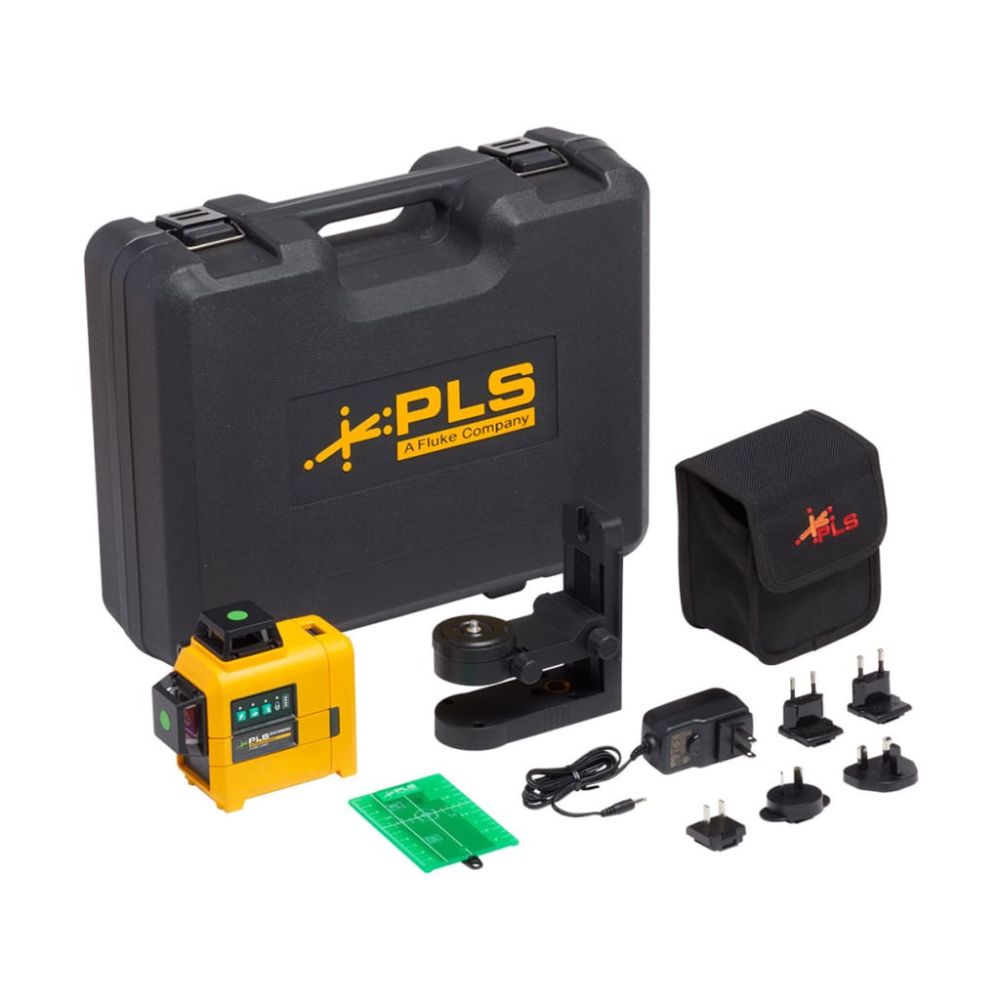

3X360 Green line laser level, RBP5, Case and Bracket 5114153 Includes
- 3X360G Tool
- RBP5 (Li-Ion)
- Power Supply

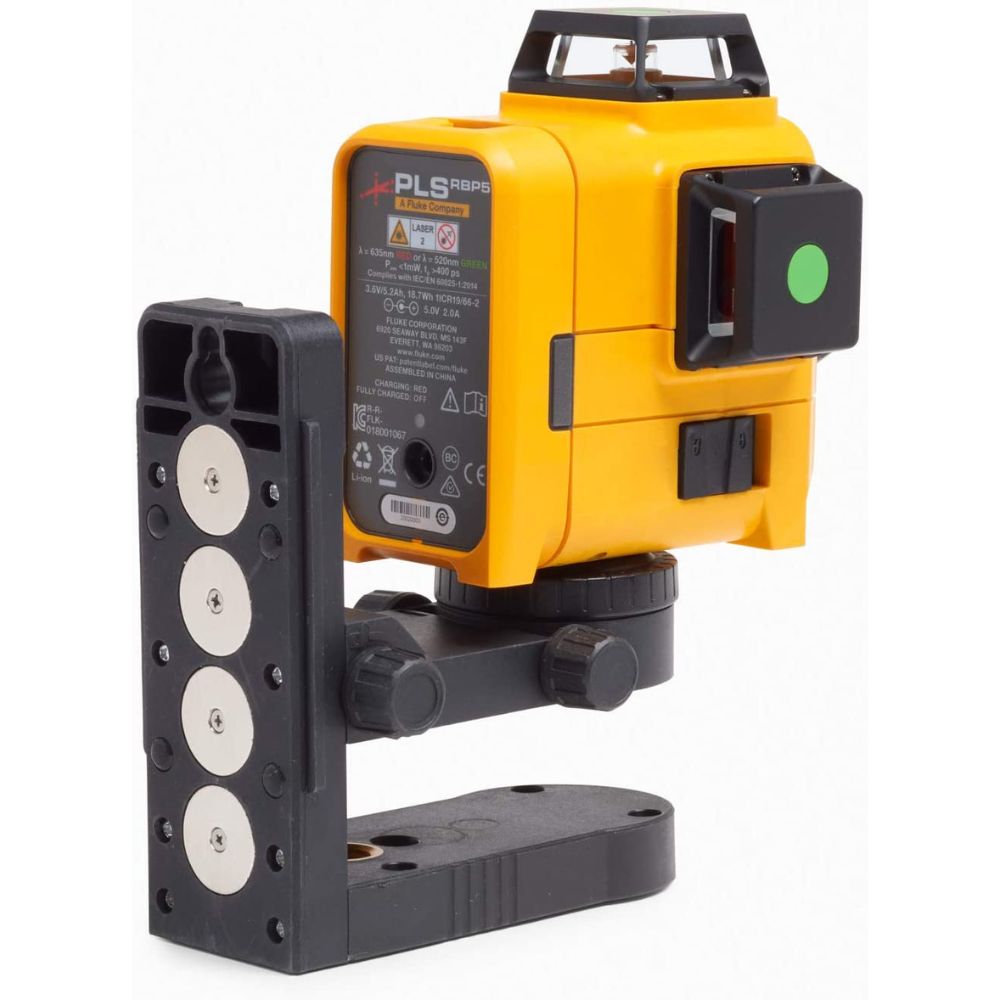

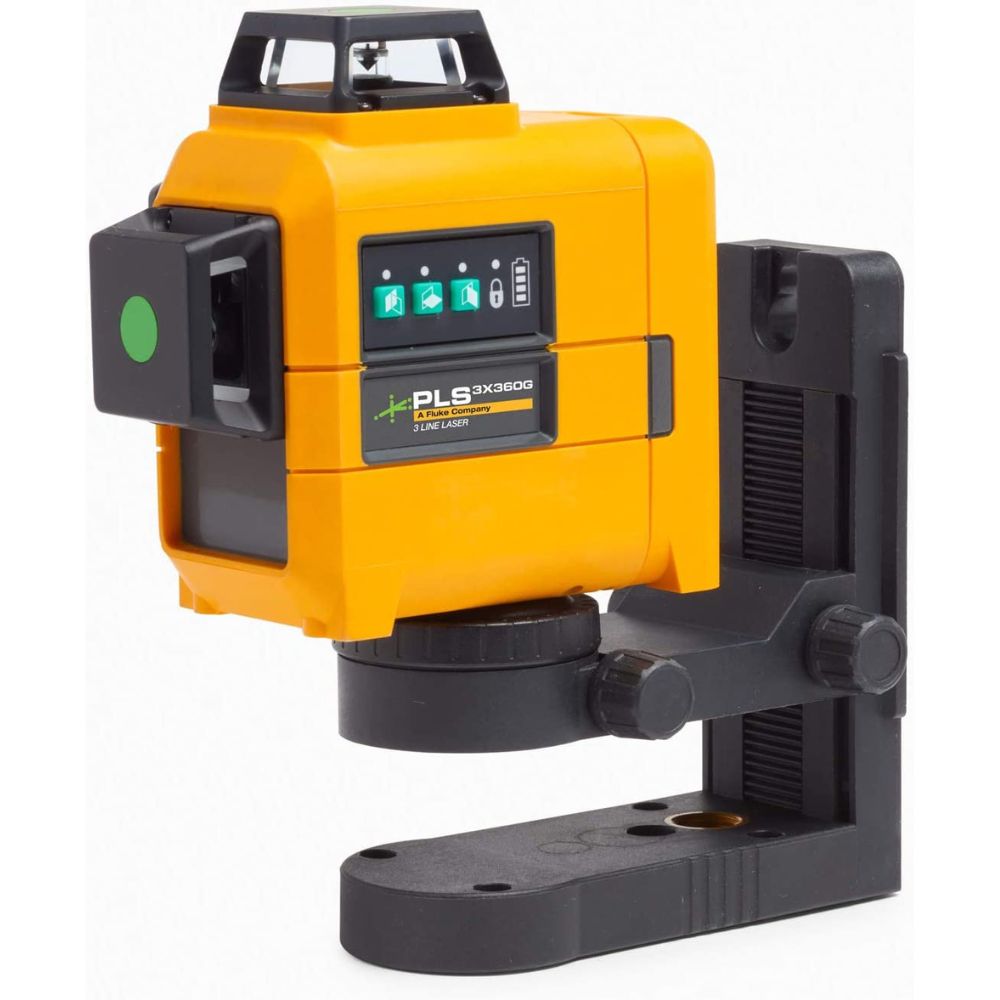

- 3X360 Magnetic L-Bracket
- Green Reflective Target
- Canvas Pouch
- Blow Mold Case
3X360 Green line laser level, RBP5, Case and Bracket 5114153 Features

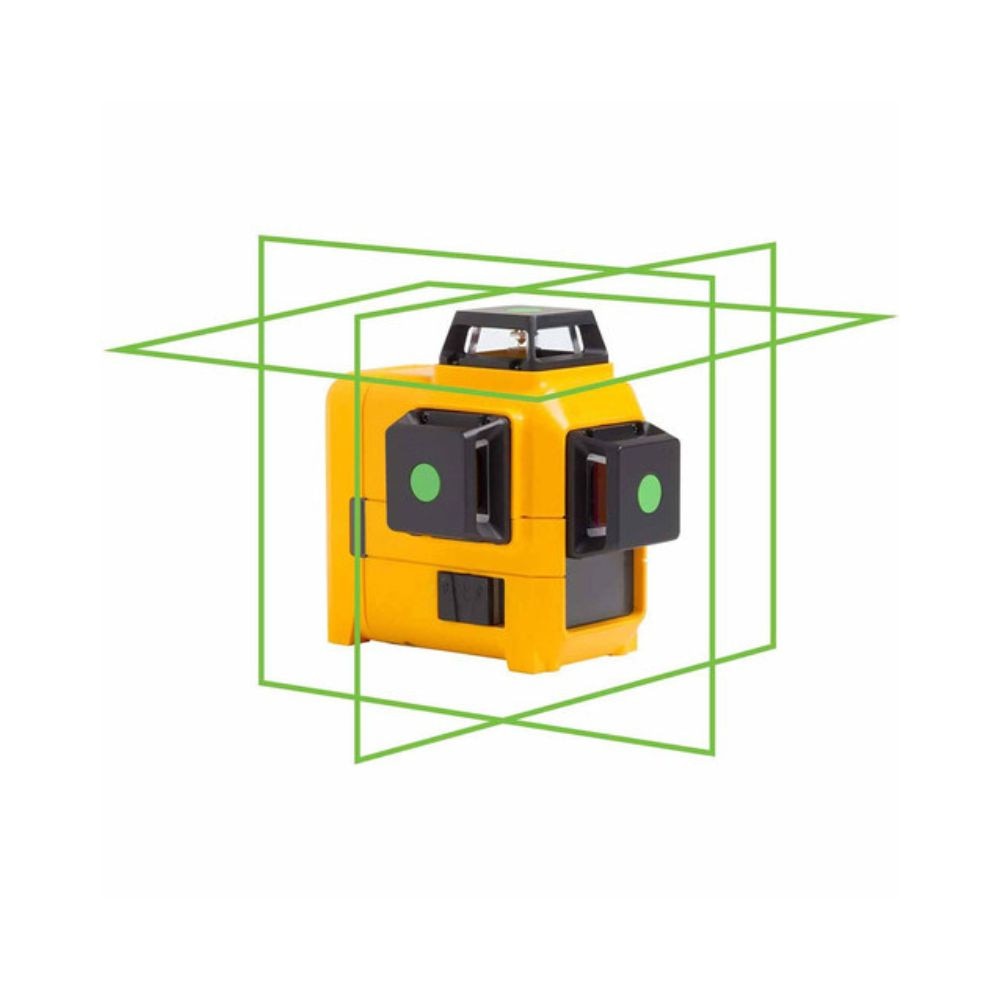

- First PLS laser with 3-beam laser technology integrated to automatic pendulum
- For easy Plumb, Level and Square alignment
- 1m drop tested
3X360 Green line laser level, RBP5, Case and Bracket 5114153 Specifications
Batteries | Li-ion |
Laser Class | Class II |
Accuracy | 5/64 " @ 33 ' (2mm @ 10m) |
IP Rating | Product IP Rating 54 |
Working Range | 115 ' / 35 m (without line detector), 210 ' / 65 m (with line detector) |
Operating Time | 17 hours (1 beam), 5 hours (3 beams) |
Specifications | |

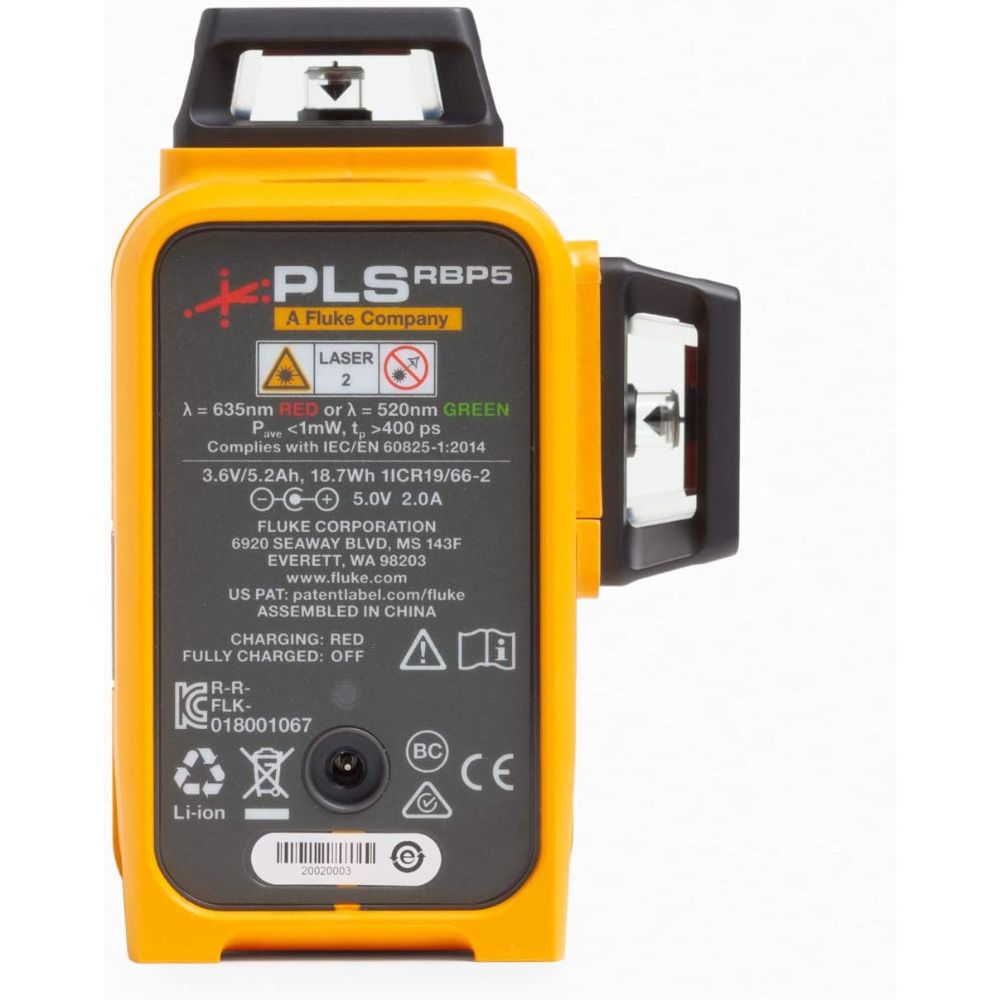

Battery | Lithium-Ion, 3.6V, 5200 mh (RBP5) |
Battery Life, Continuous Use | 3 beams: ≥ 5 hours; 1 beam: ≤ 17 hours |
Line Fan Angle | |
Horizontal | 360° |
Vertical | 360° |
Side Vertical | 360° |
Working Range | |
Without Line Detector | 35 m (115 ft.) |
With Line Detector | 65 m (210 ft.) |
Laser Leveling | |
System | Automatic, Pendulum |
Range | Self-leveling: ≤ 4°; Out of self-levelling: > 6° |
Temperature | |
Operating | -10 °C to 50 °C (14 °F to 122 °F) |
Storage | |
With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) |
Without Batteries | -20 °C to 70 °C (-13 °F to 158 °F) |
Relative Humidity | 0 % to 90 % (0 °C to 35 °C) |
0 % to 75 % (35 °C to 40 °C) | |
0 % to 45 % (40 °C to 50 °C) | |
IP Rating | IP 54 |
Drop Test | (1 M) 3.28 ft |
Size (H x W x L) with Battery | 5.12 in x 3.58 in x 5.25 in (13 cm x 9.09 cm x 13.33 cm) |
Weight with Battery | 1.76 lbs (0.8 kg) |
Safety | IEC 61010-1: Pollution Degree 2 |
Laser | IEC 60825-1:2014 Class 2 |
Light Source | Semiconductor laser diode |
Max Output Power | < 1 mW |
Wavelength | |
Green | 520 nm ± 10 nm |
Electromagnetic compatibility (EMC) | |
International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B |
