Powermatic PM1-477 Description

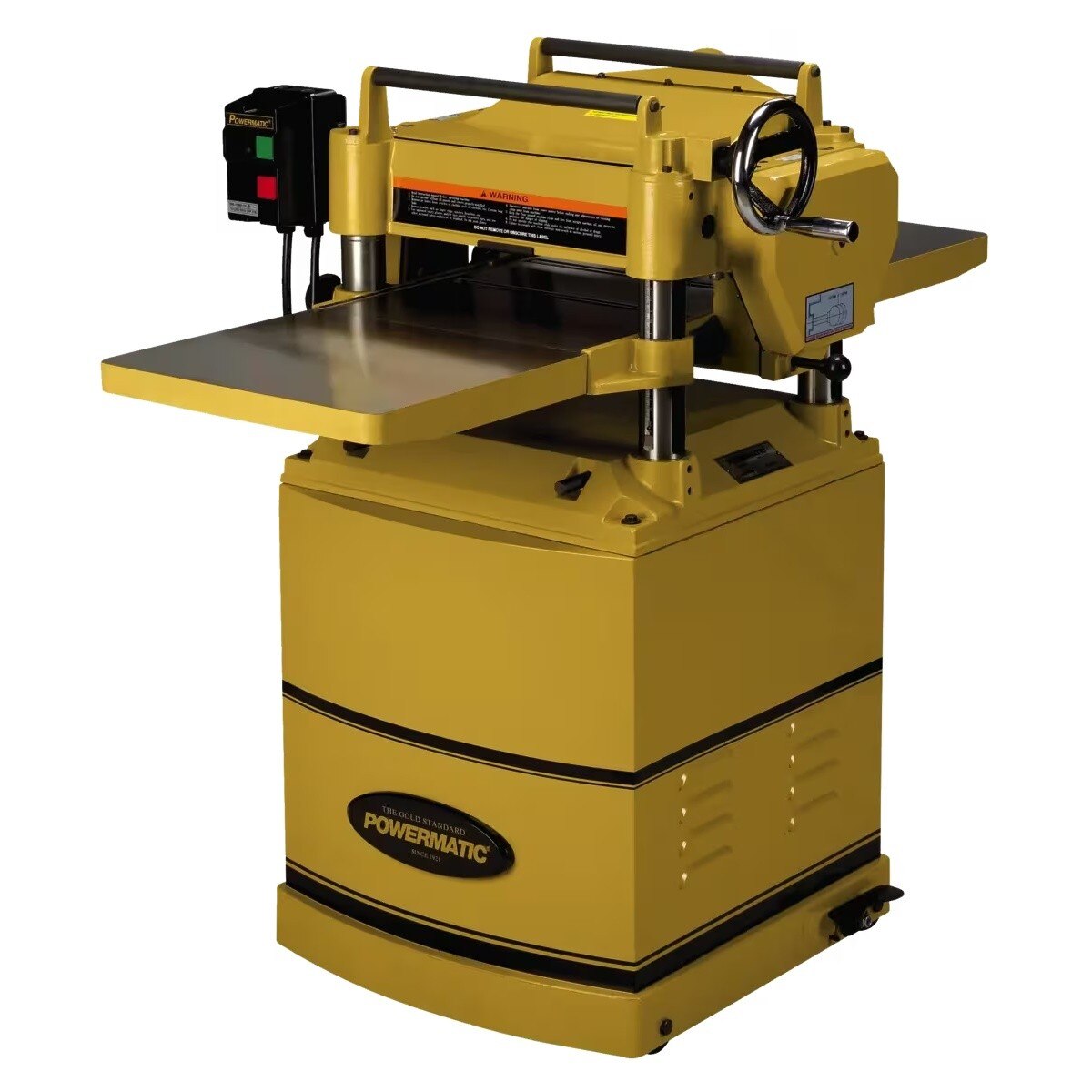

The Powermatic, 15BHH, PM1-477, 15-inch planer is designed for woodworking shops that require industrial durability in a versatile stationary format. Powered by a 3 HP, 230V, 1 PH motor, this planer delivers consistent cutting performance for hardwoods and softwoods alike. Its 15-inch cutting width and 6-inch maximum thickness capacity provide the flexibility to surface a wide range of stock. A four row helical cutterhead with 48 four sided carbide inserts operating at 5200 RPM produces a refined surface finish with reduced noise and extended insert life, while convenient cutterhead access simplifies insert rotation and replacement. The built in digital readout allows accurate, repeatable thickness adjustments, and two feed speeds of 16 and 28 FPM give operators the choice between efficient stock removal and finer finishing passes. Heavy cast iron tables with a full 48-inch table surface provide rigidity and vibration reduction for consistent results. A 4-inch bi-directional dust port supports effective chip evacuation with a 900 CFM requirement, while the upgraded caster locking and braking system and oversized emergency stop enhance shop mobility and operator safety.
Powermatic PM1-477 Includes
- (1) 15 in. Planer
- (1) Dust Hood
- (1) Handwheel
- (1) Key
- (1) Handle
- (1) Hardware Bag for Dust Hood (Hex Cap Screws, Flat Washers)
- (3) Open-End Wrenches (10-13mm, 12-14mm, 17-19mm)
- (4) Hex Wrenches (3mm, 4mm, 5mm, 6mm)
- (1) Owner's Manual
- (1) Warranty Card
- (2) Star Point Screwdrivers
- (10) Knife Inserts
- (10) Knife Insert Screws
- (2) Cast Iron Extension Tables
- (1) Hardware Bag for Extension Tables (Hex Cap Screws, Socket Set Screws)

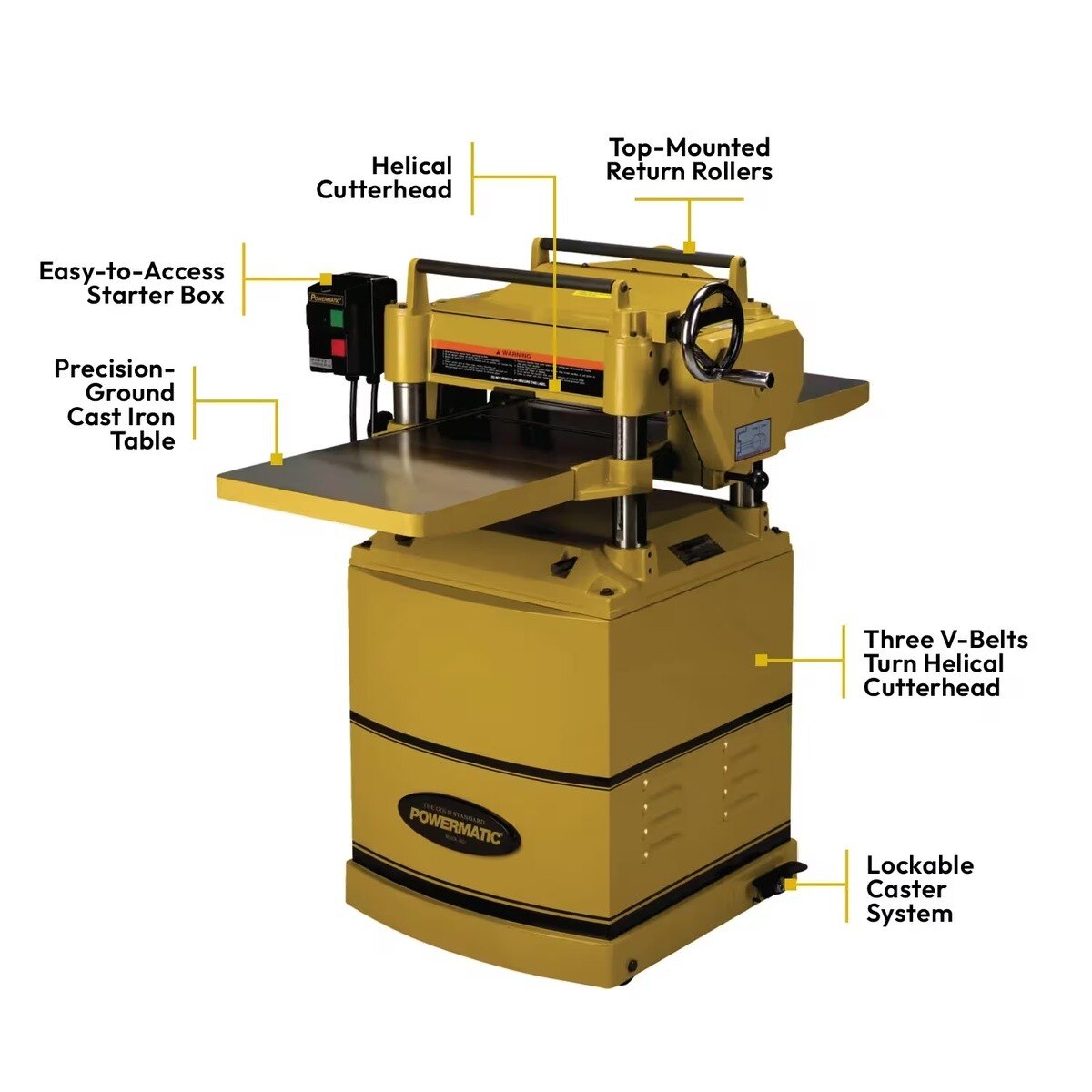

Powermatic PM1-477 Features
- Improved Large E Stop - Oversized, easy access emergency stop improves operator safety and visibility.
- Solid Cast Iron Infeed and Outfeed Tables - Provides stability, reduces vibration, and supports long boards for consistent results.

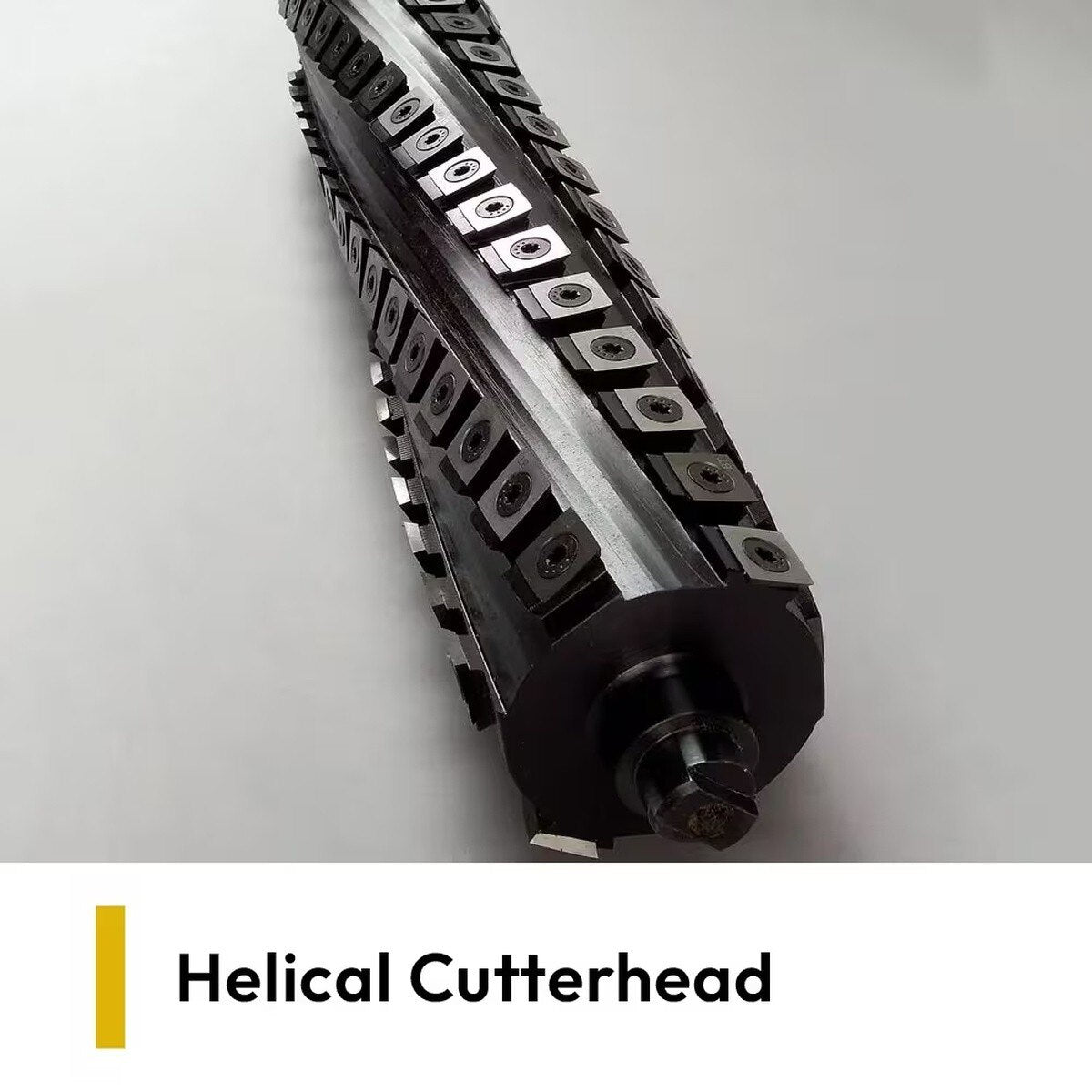

- True Helical Cutterhead - Delivers quieter operation, improved surface finish, and longer insert life.
- Cutterhead Access for Insert Change or Rotation - Simplifies maintenance and reduces downtime when rotating or replacing inserts.

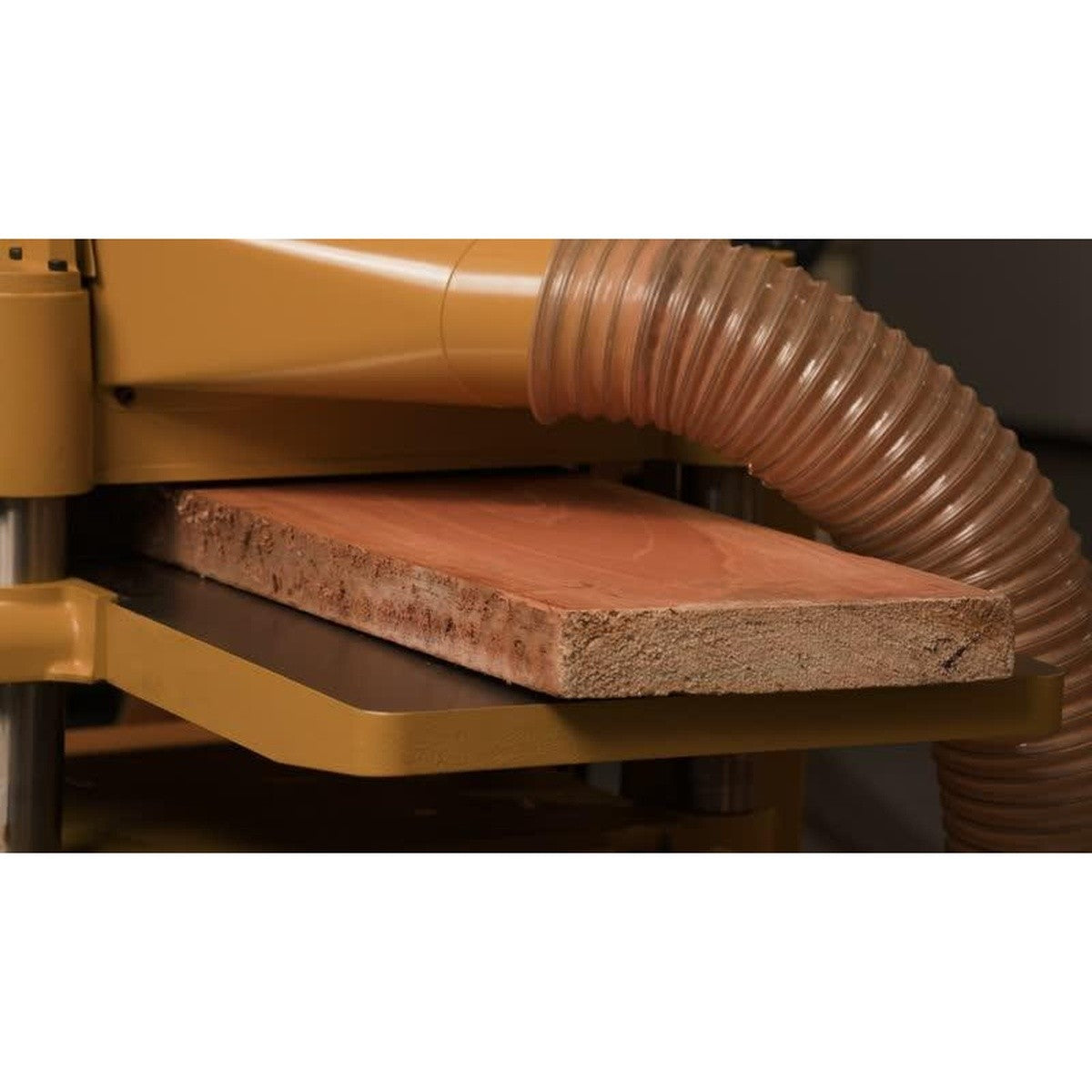

- 4 Inch Bi-Directional Dust Port - Efficient chip evacuation with flexible dust collection setup.
- Digital Read Out (DRO) - Accurate, repeatable thickness adjustments for precision planing.
- Two Speed Feed Rate - Allows selection between faster stock removal or finer finish cuts.

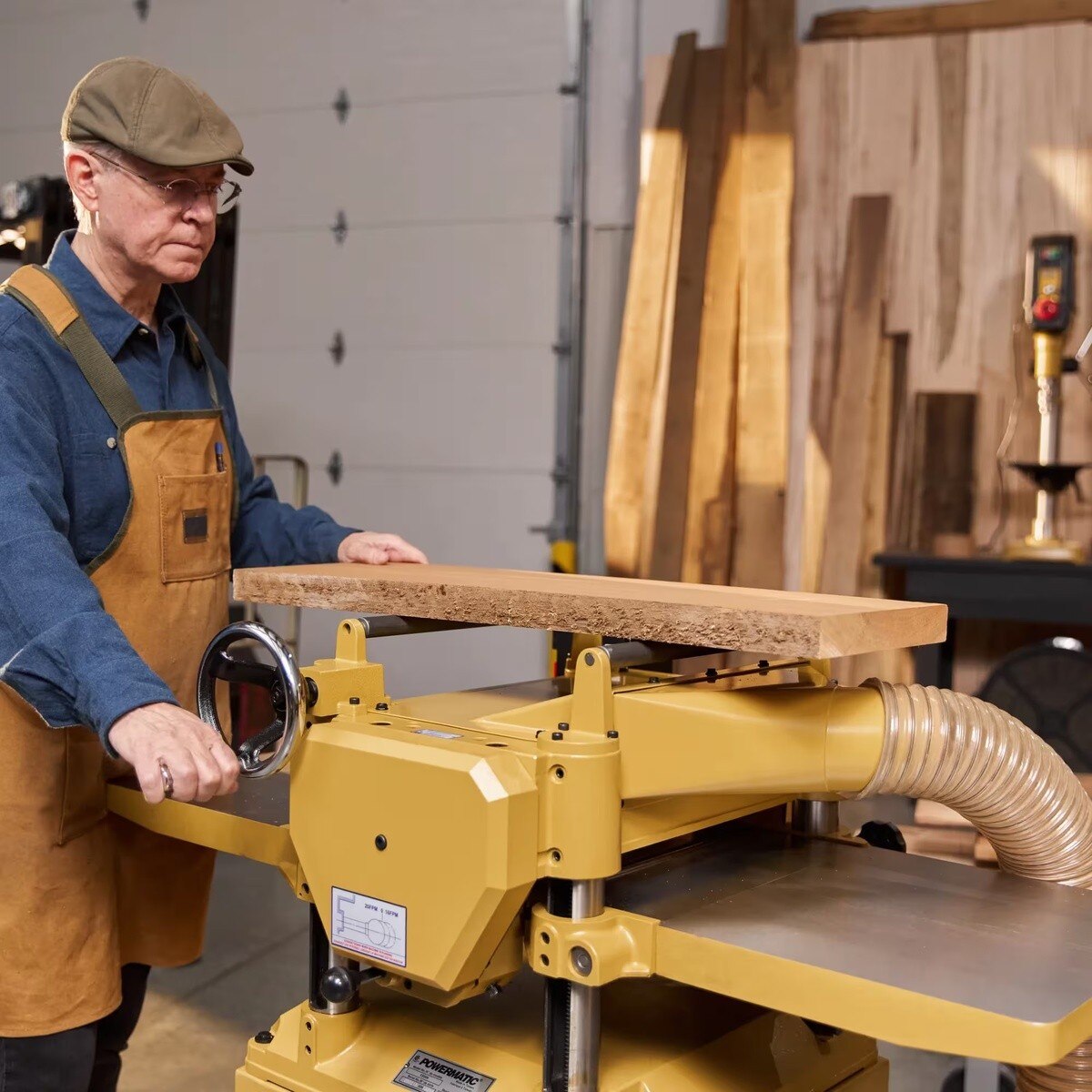

- Height Adjustment Handle - Smooth, controlled table movement for accurate depth setting.
- Caster Locking and Braking System - Provides mobility when needed and stability during operation
- Dual Lifting Handles - Assists with easier setup or relocation within the shop.
Powermatic PM1-477 Specifications
| Model Number | 15BHH |
| Manufacturer Part Number | PM1-477 |
| Motor Horsepower | 3 HP |
| Motor Voltage | 230V |
| Motor Phase | Single |
| Motor Amps | 14.5 A |
| Prewired Voltage | 230V |
| Feed Rate | 16/28 FPM |
| Number of Speeds | 2 |
| Type of Cutterhead | Helical Cutterhead |
| Cutterhead Speed | 5200 RPM |
| Cutterhead Diameter | 3 in. |
| Number of Knives | 48 |
| Maximum Board Width | 15 in. |
| Maximum Board Thickness | 6 in. |
| Minimum Board Length | 8 in. |
| Full Width Depth of Cut | 3/32 in. |
| Table Size | 48 in. x 15 in. |
| Table Material | Cast Iron |
| Dust Port Size | 4 in. |
| Required CFM | 900 |
| Digital Readout (DRO) | Yes |
| Style Type | Floor Standing |
| Net Weight | 411 lbs |
| Overall Dimensions | 48 in. x 31-1/2 in. x 42-3/8 in. |
| Warranty | 5 Year |
| Country of Origin | TW |
