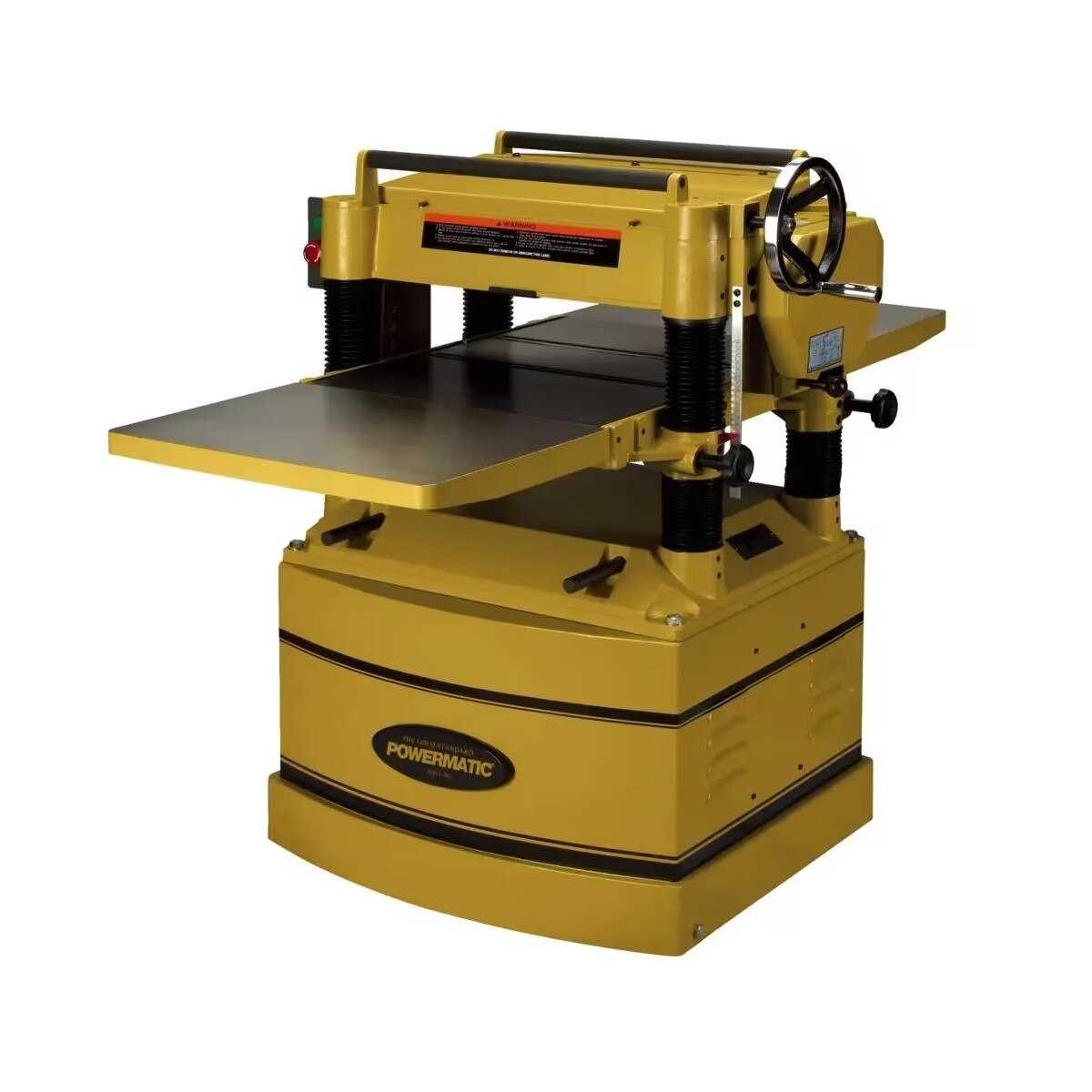

Powermatic PM1-478 Description
The Powermatic 20-inch planer is built for shops that need increased capacity and cutting strength with 230V single-phase power. Driven by a 5 HP motor, it planes wide panels and dense hardwoods with confidence. The helical cutterhead uses four-sided inserts for a smooth finish with reduced tear out and noise, and provides easy access for insert rotation or replacement to minimize downtime. A digital readout supports precise thickness control, while dual feed speeds help balance fast stock removal and fine finishing. Heavy-duty cast iron tables provide stability, and a dust port supports efficient chip collection.
Powermatic PM1-478 Includes
- (1) 20 in. Planer
- (1) Dust Hood
- (1) Handwheel
- (1) Handle
- (1) Key
- (1) Hardware Bag for Dust Hood
- (6) Hex Cap Screws M6 x 1.0P x 12
- (6) Flat Washers M6
- (3) Open-End Wrenches (10-13mm, 12-14mm, 17-19mm)
- (4) Hex Wrenches (3mm, 4mm, 5mm, 6mm)
- (2) Star Point Screwdrivers
- (10) Knife Inserts
- (10) Knife Insert Screws
- (2) Cast Iron Extension Tables
- (1) Owners Manual and Warranty Card

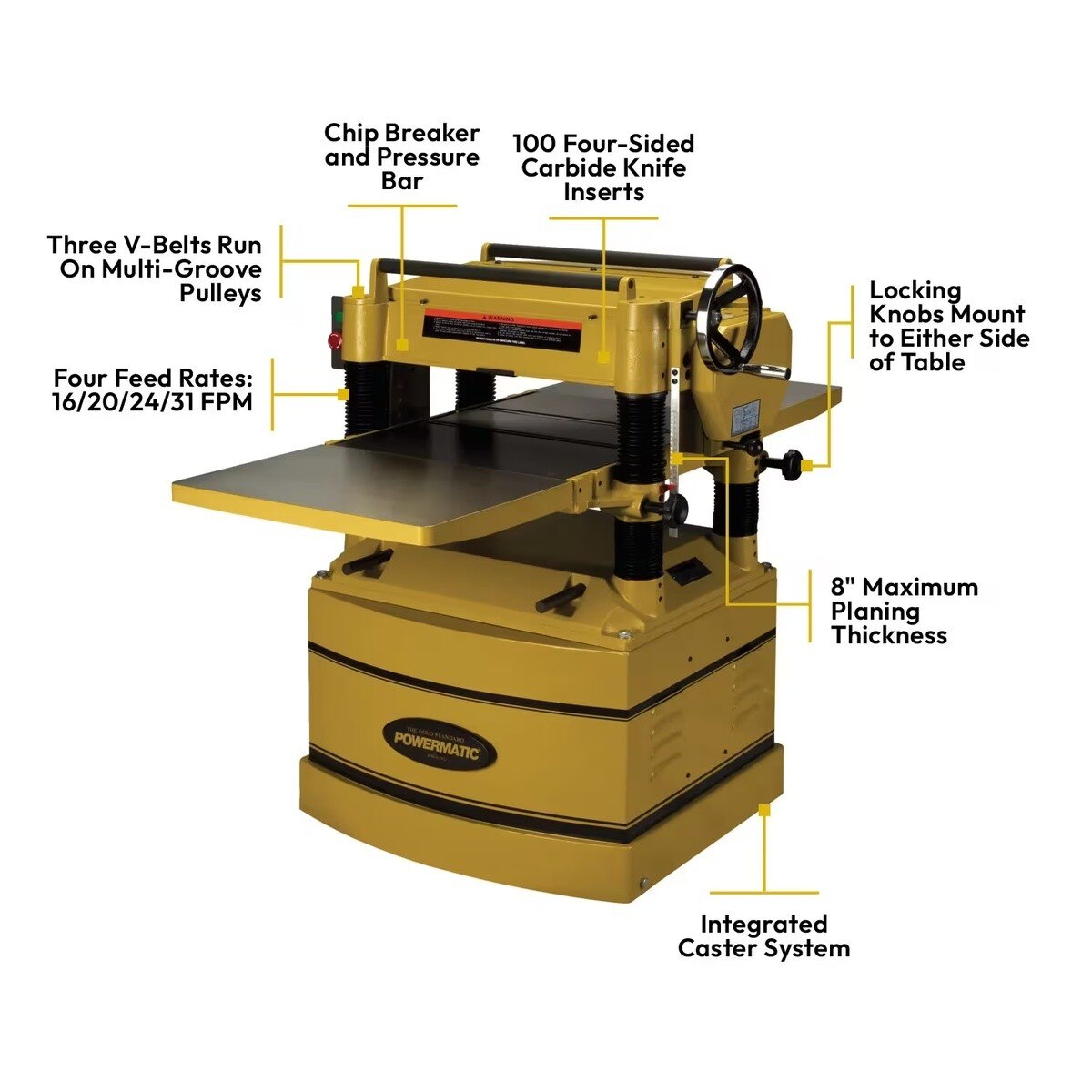

Powermatic PM1-478 Features
- Oversized emergency stop improves operator safety and visibility
- Cast iron infeed and outfeed tables provide stability and reduce vibration
- Helical cutterhead delivers quieter operation and improved surface finish

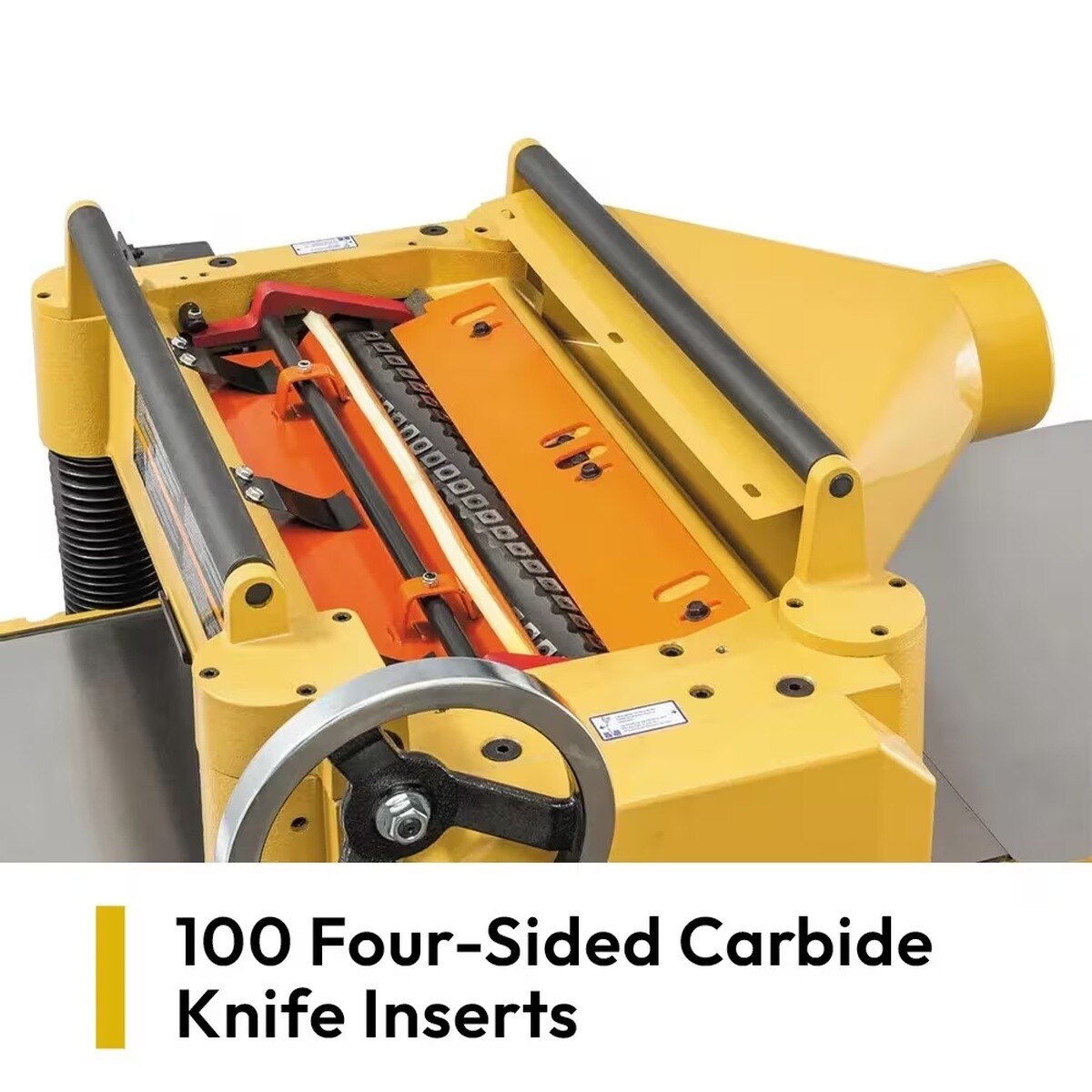

- Cutterhead access simplifies insert rotation or replacement to reduce downtime
- Digital readout supports accurate, repeatable thickness adjustments
- Two-speed feed rate for faster stock removal or finer finish cuts
- Smooth height adjustment for controlled table movement and accurate depth setting
- Caster locking and braking system provides mobility and stability
- Dual lifting handles assist with setup or shop relocation
Powermatic PM1-478 Specifications
| Model Number | 209BHH |
| Motor Horsepower | 5 HP |
| Voltage | 230V |
| Phase | Single |
| Motor Amps | 20 |
| Recommended Circuit Size | 40 Amp |
| Maximum Board Width | 20 in. |
| Maximum Board Thickness | 8 in. |
| Minimum Board Length | 8 in. |
| Full Width Depth of Cut | 3/32 in. |
| Cutterhead Type | Helical Cutterhead |
| Cutterhead Speed | 5200 RPM |
| Cutterhead Diameter | 3-1/4 in. |
| Number of Inserts | 68 |
| Number of Speeds | 2 |
| Feed Rate | 16/28 FPM |
| Dust Port Size | 4 in. |
| Required CFM | 900 |
| Table Size | 51-1/2 in. x 20 in. |
| Table Material | Cast Iron |
| Digital Readout | Yes |
| Style Type | Floor Standing |
| Net Weight | 606 lbs |
| Overall Dimensions | 51-1/2 in. x 37-3/8 in. x 43-3/8 in. |
| Warranty | 5 Year |
| Country of Origin | TW |
