Powermatic PM1-479 Description

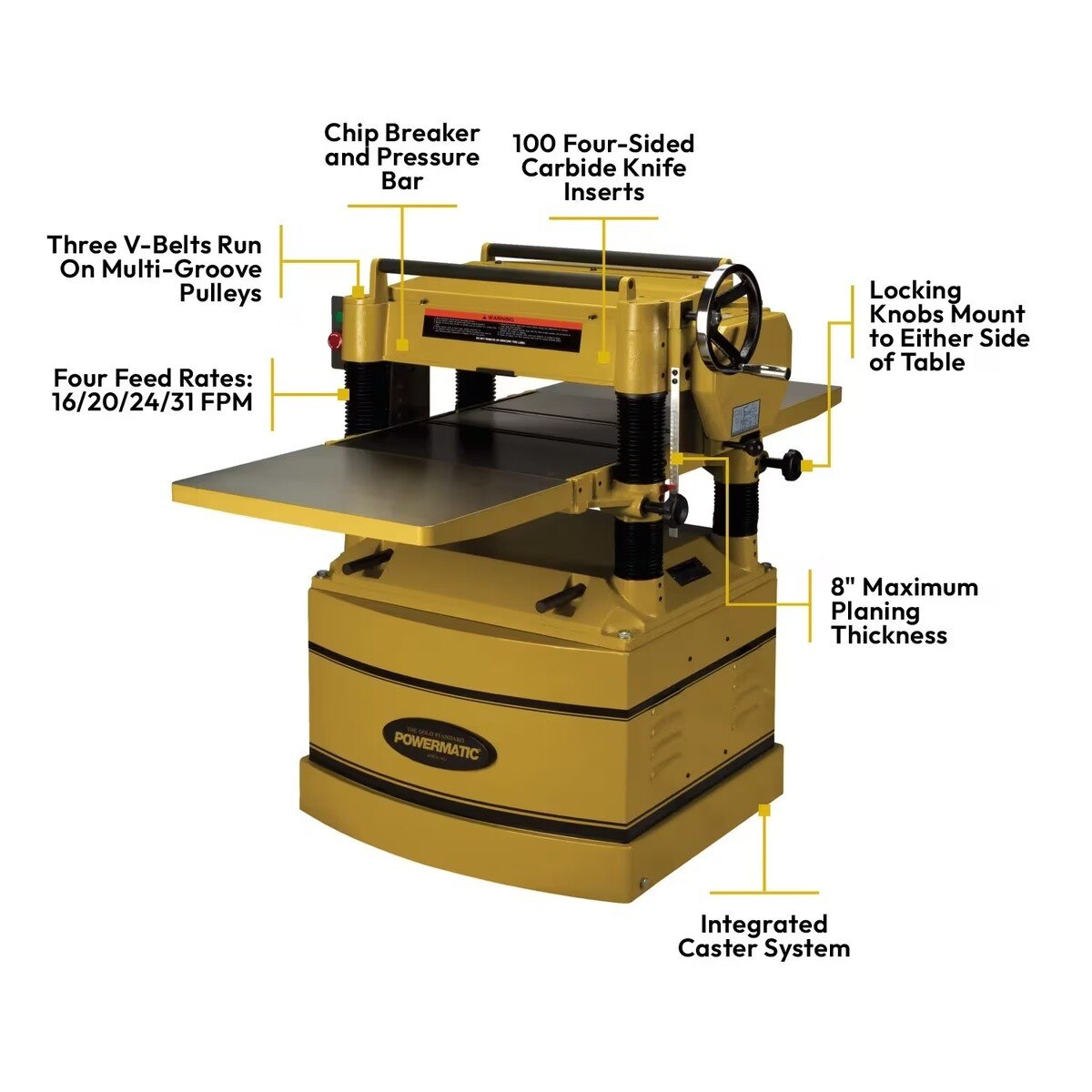

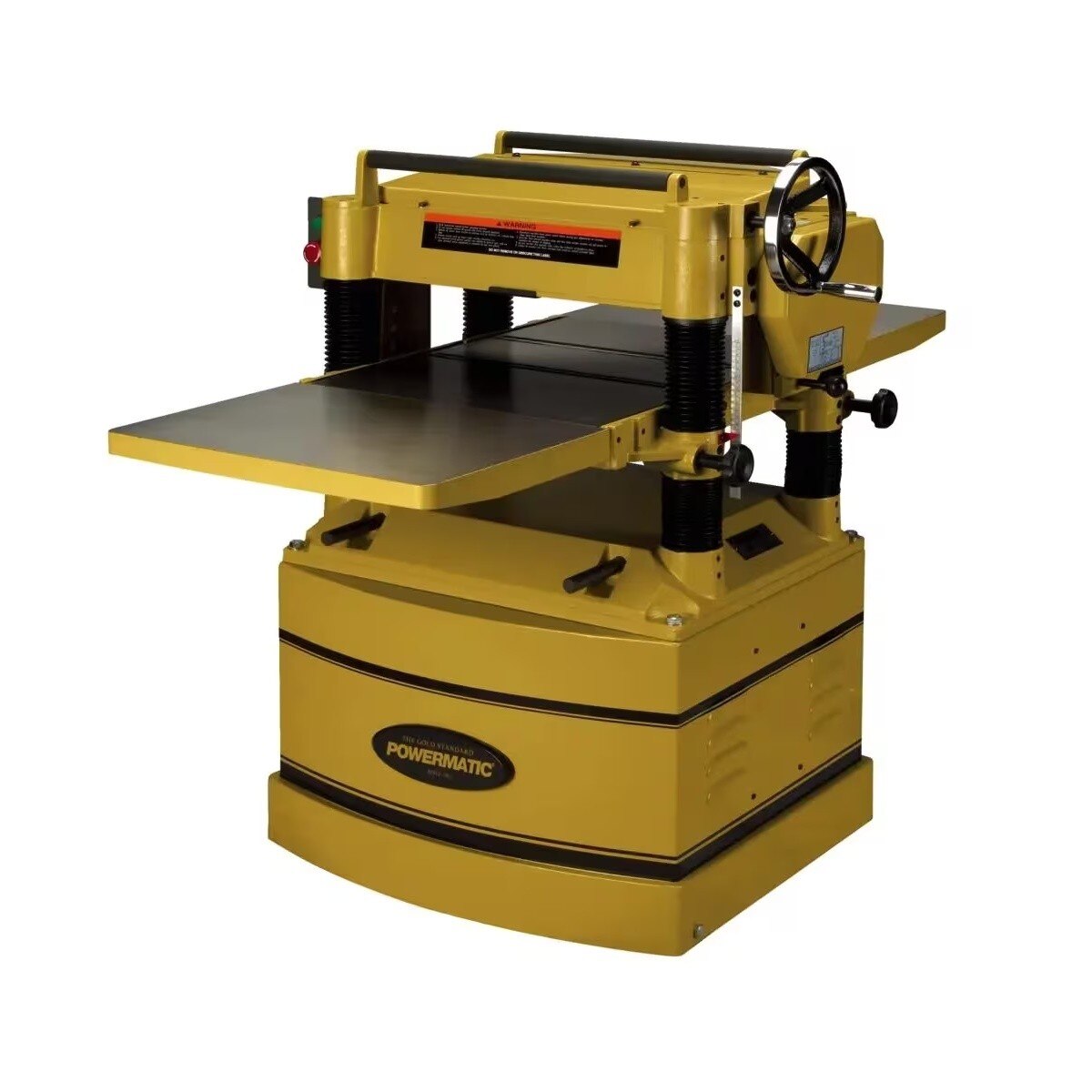

The Powermatic, 209BHH-3, PM1-479, 20-inch planer is engineered for environments equipped with three phase power. Featuring a 5 HP, 3 PH motor rated for 230V or 460V operation, this planer delivers consistent high output performance for demanding production settings. A 20-inch cutting width and 8-inch maximum thickness capacity provide the capability to process wide and heavy stock efficiently. Its four row helical cutterhead with 68 four sided inserts operating at 5200 RPM produces a refined surface finish with long insert life and reduced noise, and cutterhead access allows fast insert rotation and replacement. The integrated digital readout supports precise thickness adjustments, and two feed speeds of 16 and 28 FPM allow operators to balance productivity and finish quality. Solid cast iron tables and a 51-1/2 inch overall table surface provide the rigidity needed for consistent results, while a 4-inch dust port with a 900 CFM minimum requirement maintains effective chip management. Enhanced mobility features and an oversized emergency stop complete a platform built for both performance and safety.
Powermatic PM1-479 Includes
- (1) 20 in. Planer (PM1-479)
- (1) Dust Hood
- (1) Handwheel
- (1) Key
- (1) Handle
- (1) Hardware Bag for Dust Hood
- (3) Open-End Wrenches
- (4) Hex Wrenches (3, 4, 5, 6mm)
- (2) Star Point Screwdrivers
- (10) Knife Inserts
- (10) Knife Insert Screws
- (2) Cast Iron Extension Tables
- (1) Hardware Bag for Extension Tables
- (1) Owner's Manual
- (1) Warranty Card
Powermatic PM1-479 Features
- Floor-standing 20 in. planer designed for production environments
- 5 HP three-phase motor with 230/460V operation (prewired 230V)
- Helical cutterhead with four-sided inserts for quieter operation and improved surface finish
- Cutterhead access simplifies insert rotation and replacement to reduce downtime
- Digital readout (DRO) supports accurate, repeatable thickness adjustments
- Two-speed feed rate (16/28 FPM) to balance finish quality and material removal
- Solid cast iron infeed and outfeed tables reduce vibration and support long stock
- 4 in. dust port and 900 CFM minimum requirement for effective chip management
- Oversized emergency stop improves operator safety and visibility
- Caster locking and braking system provides mobility and stability
Powermatic PM1-479 Specifications
| Model Number | 209BHH-3 |
| Cutterhead Type | Helical Cutterhead |
| Motor Horsepower | 5 HP |
| Motor Phase | Three |
| Motor Voltage | 230/460V |
| Prewired Voltage | 230V |
| Motor Amps | 13.5/6.7 |
| Recommended Circuit Size | 40 Amp |
| Maximum Board Width | 20 in. |
| Maximum Board Thickness | 8 in. |
| Minimum Board Length | 8 in. |
| Full Width Depth of Cut | 3/32 in. |
| Cutterhead Diameter | 3-1/4 in. |
| Cutterhead Speed | 5200 RPM |
| Number of Knives | 68 |
| Number of Speeds | 2 |
| Feed Rate | 16/28 FPM |
| Table Size | 51-1/2 in. x 20 in. |
| Table Material | Cast Iron |
| Table Height | Manually Adjusted |
| Overall Dimensions | 51-1/2 in. x 37-3/8 in. x 43-3/8 in. |
| Dust Port Size | 4 in. |
| Required CFM | 900 |
| Style Type | Floor Standing |
| Net Weight | 606 lbs |
| Warranty | 5 Year |
| Digital Readout (DRO) | Yes |
| Country of Origin | TW |
| Prop 65 | Cancer and Reproductive Harm |
