Powermatic PM1-480 Description

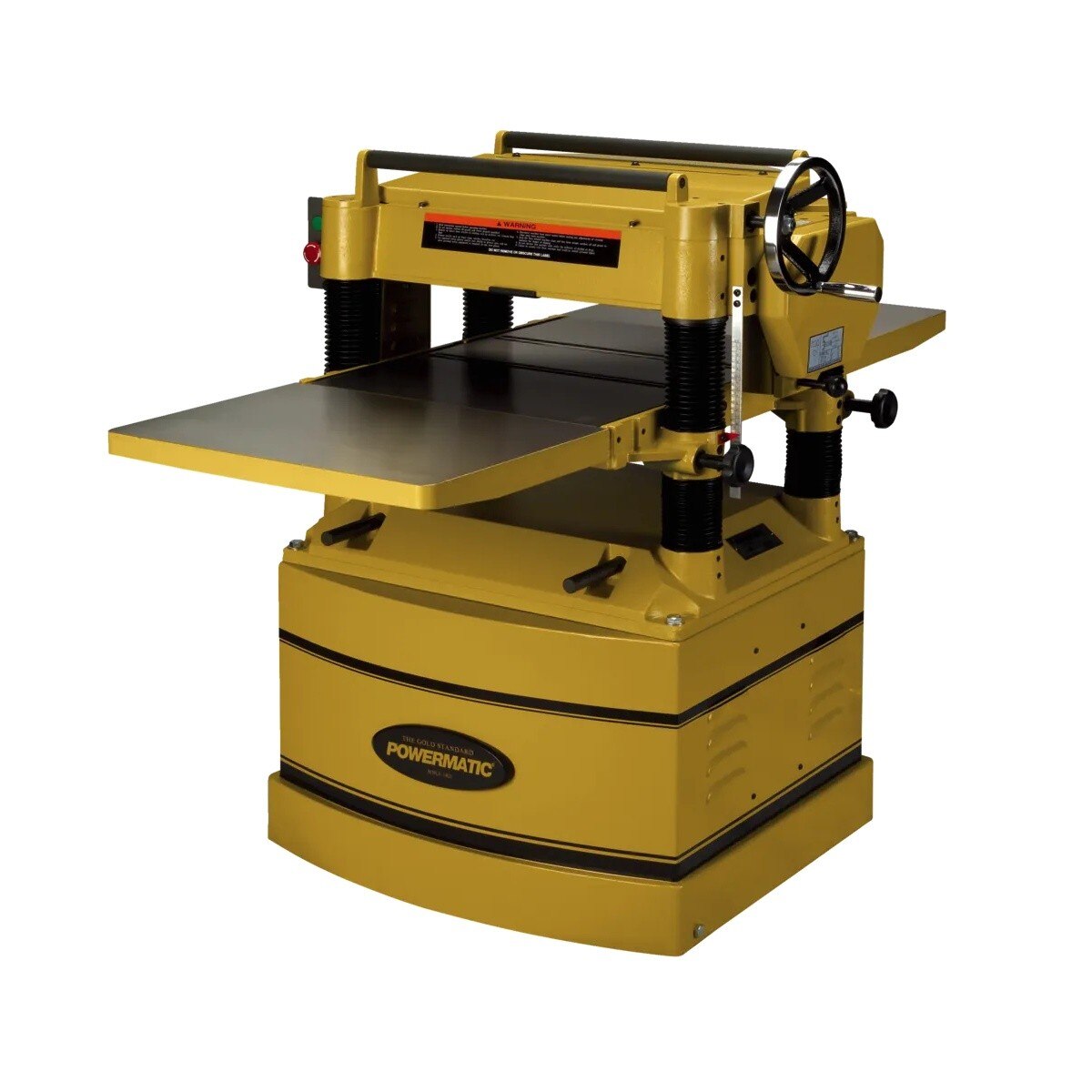

This Powermatic 20 in. floor standing planer is built for shops running 460V, 3-phase power. A 5 HP motor and 20 in. capacity support continuous production use, while the helical cutterhead with 68 four-sided inserts running at 5200 RPM delivers smooth results with reduced noise and simplified maintenance. Dual feed speeds (16 and 28 FPM) and a built-in digital readout help balance fast stock removal with accurate, repeatable thickness settings. Heavy cast iron tables provide stability and reduced vibration, and a 4 in. dust port supports effective chip evacuation when paired with adequate dust collection.
Powermatic PM1-480 Includes
- (1) 20 in. Planer
- (1) Dust Hood
- (1) Handwheel
- (1) Key
- (1) Handle
- (1) Hardware Bag for Dust Hood
- (3) Open-End Wrenches
- (4) Hex Wrenches
- (1) Owner's Manual
- (1) Warranty Card
- (2) Star Point Screwdrivers
- (10) Knife Inserts
- (10) Knife Insert Screws
- (2) Cast Iron Extension Tables
- (1) Hardware Bag for Extension Tables
Powermatic PM1-480 Features
- Oversized emergency stop for improved visibility and safer operation
- True helical cutterhead for quieter cutting and improved surface finish
- 68 four-sided carbide inserts for extended edge life and reduced knife-change downtime
- Accessible cutterhead design simplifies insert rotation or replacement
- Two-speed feed rate (16 and 28 FPM) to balance finish quality and productivity
- Digital readout (DRO) for accurate, repeatable thickness adjustments
- Solid cast iron infeed and outfeed tables reduce vibration and support long stock
- Full 51-1/2 in. table surface supports consistent planing on large workpieces
- Integrated caster locking and braking system for mobility and in-use stability
- Dual lifting handles help with setup and in-shop relocation
Powermatic PM1-480 Specifications
| Maximum Board Width | 20 in. |
| Maximum Board Thickness | 8 in. |
| Minimum Board Length | 8 in. |
| Motor | 5 HP, 3-Phase, 460V |
| Cutterhead Type | Helical |
| Cutterhead Speed | 5200 RPM |
| Feed Rate | 16/28 FPM |
| Table Size | 51-1/2 in. x 20 in. |
| Dust Port Size | 4 in. |
| Required CFM | 900 |
| Net Weight | 606 lbs |
| Shipping Weight | 704 lbs |
| Country of Origin | TW |
| Warranty | 5 Year |
