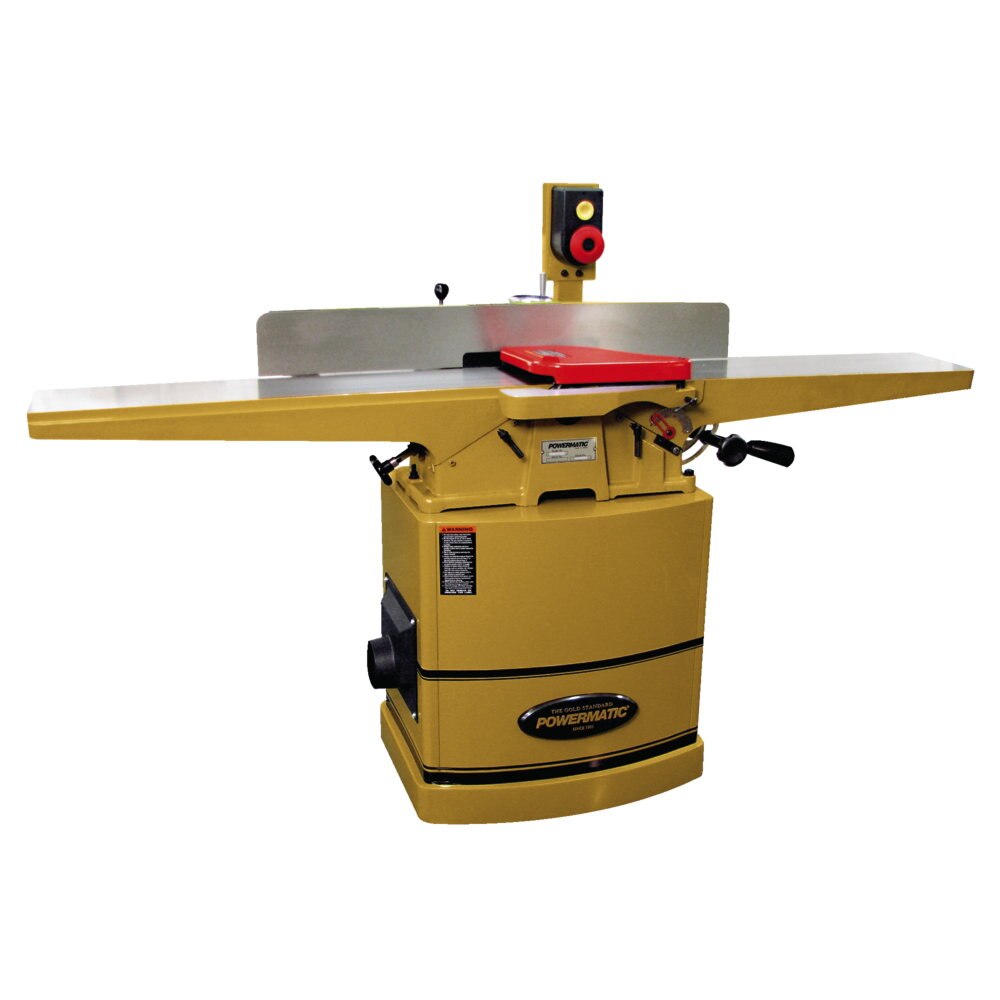

Powermatic PM9-1610084K 60C 8" Jointer, 2HP, 1PH, 230V
Description
Description
Powermatic 1610084K Description
This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Powermatic 1610084K Features
- High-speed heat-treated steel knives
- Extra long tables are mounted on dovetailed ways, for extended workpiece support
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
- High mount switch for operator convenience
- Handwheel operated worm gear system for smooth fence tilting
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface
- Large extension rest on infeed table for rabbeting
Powermatic 1610084K Specifications
| Rabbeting Capacity (In.) | 1/2 |
| Table Size (L x W) (In.) | 73 x 8-1/2 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 2 |
| Cutterhead Speed (RPM) | 7,000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutterhead Diameter (In.) | 3 |
| Outfeed Table Length (In.) | 35-1/2 |
| Motor Voltage (V.) | 230 only |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Motor Phase | 1 |
| Number of Knives | 3 |
| Cuts Per Minute | 21,000 |
| Recommended Circuit Size (Amps.) | 20 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (Amps) | 9 |
| Standard Knife Size (L x W x T) (In.) | 8 x 11/16 x 1/8 |
| Fence Size (L x H) (In.) | 38 x 4-3/4 |
| Table Height from Floor (In.) | 32 |
| Infeed Table Length (In.) | 35-1/4 |
