Powermatic 1790818 Description

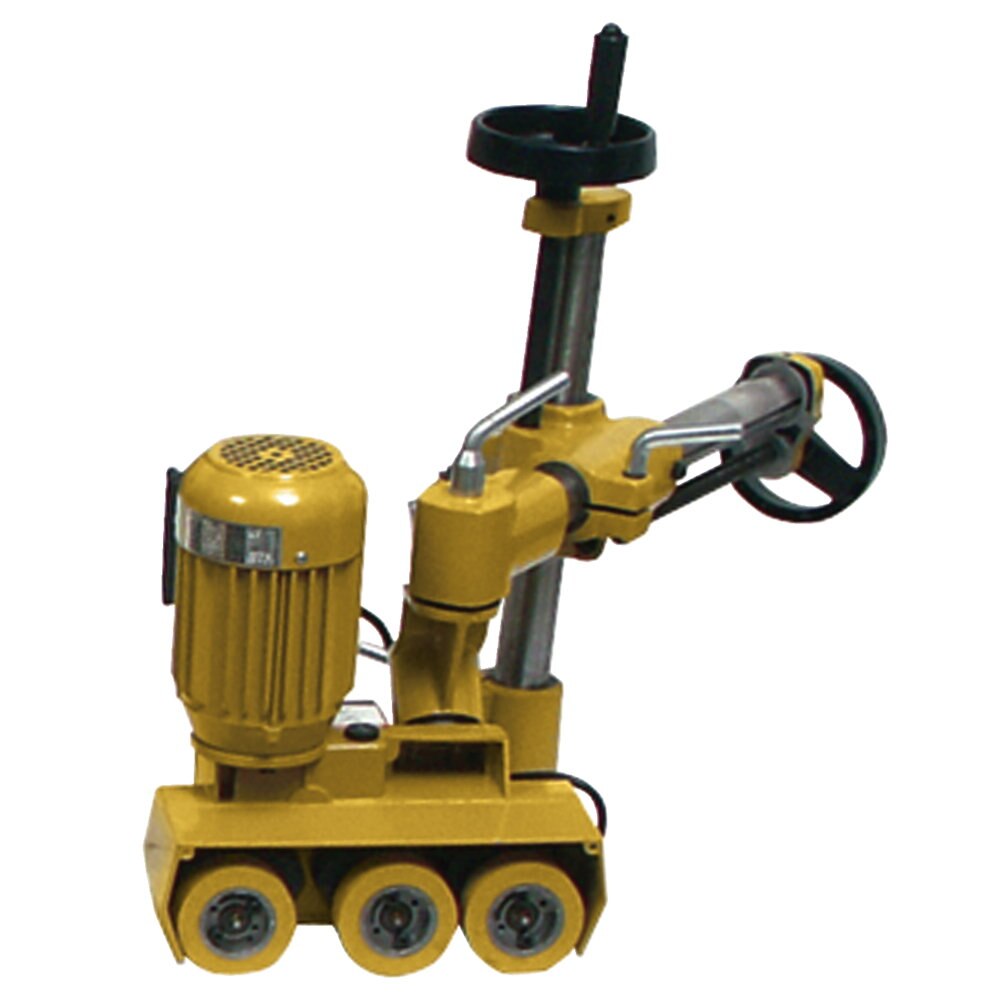

This rugged, heavy-duty stock feeder features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support column features moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of body, base and universal joints provides stability with vibration-free feeding. The roller system provides money-saving wheel changes by allowing the replacement of a single roller, instead of a complete set.
Powermatic 1790818 Features
- Roller chain and sprockets provide positive feeding for a variety of work
- Support column is fully adjustable for horizontal, vertical or angled feeder position
- Feeder body, column base and joints are cast iron for heavy duty operation
- Rollers can be changed out easily and quickly
Powermatic 1790818 Specifications
| Maximum Height of Rollers Parallel to Tabletop (In.) | 6 |
| Movement - Vertical (In.) | 6.52 |
| Swing (Deg.) | 360 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115 only |
| Distance Between Rollers - Center to Center (In.) | 4.32 - 3.34 |
| Movement - Horizontal (In.) | 9.8 |
| Rotation | Forward/Reverse |
| Motor Power (HP) | 1/4 |
| Number of Speeds | 4 Speeds |
| Number of Rollers | 3 |
| Column Diameter (In.) | 1.6 |
