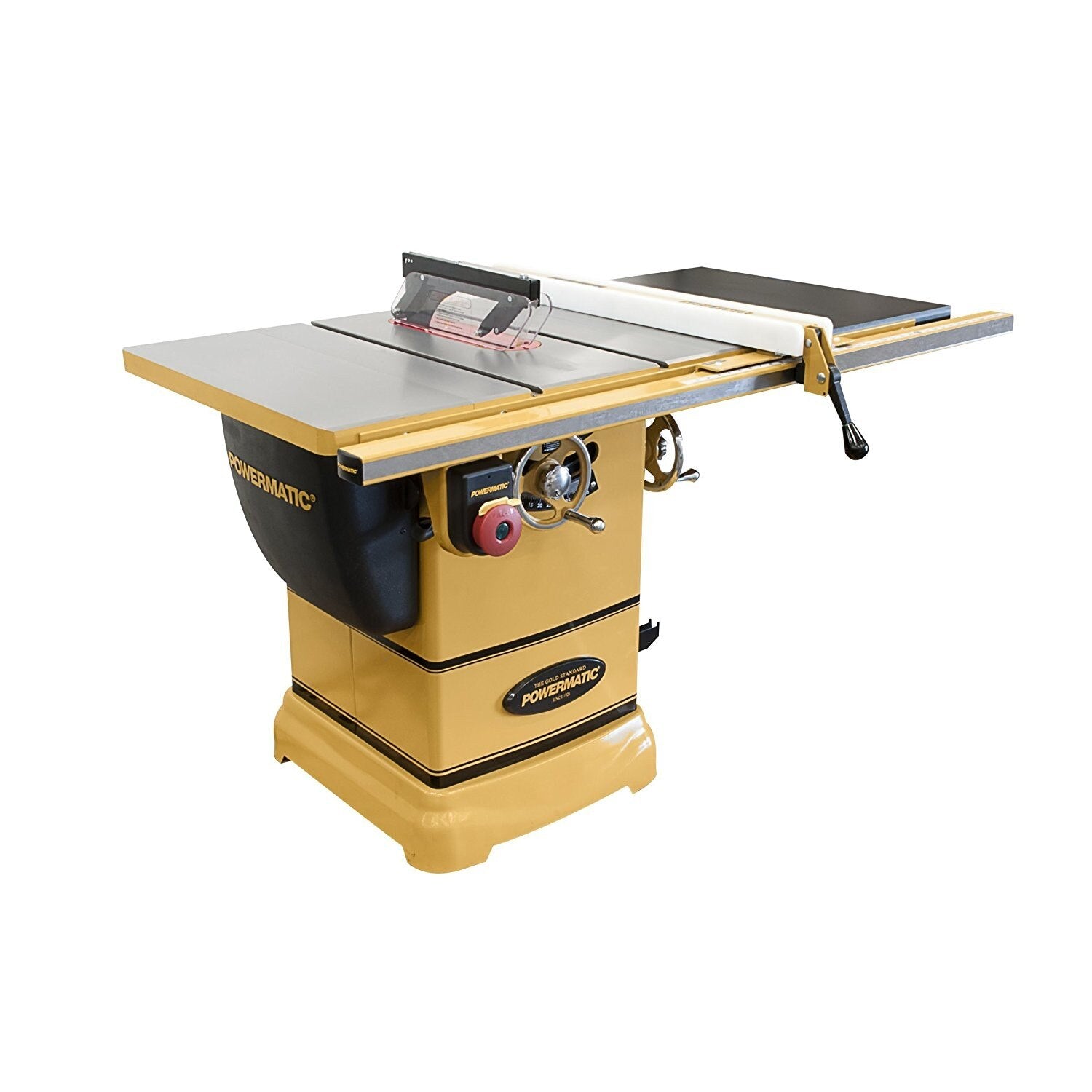

Powermatic PM9-1791000K PM1000 1-3/4HP, 1PH Table Saw with 30" Accu-Fence System
$280.00 off
Free Shipping
See Price In Cart
Unit price
/
Unavailable
Description
Description
Powermatic 1791000K Description
Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.
Powermatic 1791000K Features
- Cabinet saw that only requires 115V power
- A blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Conveniently located hands free power switch
- Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
- The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
- Exclusive AccuFence provides rigidity and precision
- The poly-V belt drive system reduces vibration and maximizes efficiency
- Ergonomically designed 7” handwheels provide momentum – making blade height and bevel adjustments easy
- Arbor lock allows for one handed blade changes with minimal tools
- Cast iron work surface features a beveled edge
Powermatic 1791000K Specifications
| Weight (Lbs.) | 346.8 |
| Style (Type) | Cabinet |
| Prewired Voltage (V.) | 115 |
| Table Height from Floor (In.) | 34-1/4 |
| Maximum Diameter of Dado (In.) | 8 |
| Arbor Speed (RPM) | 4200 |
| Maximum Rip Left of Blade (In.) | 12 |
| Table Size (In.) | 20 x 27 |
| Maximum Width of Dado (In.) | 13/16 |
| Motor Power (HP) | 1-3/4 |
| Blade Diameter (In.) | 10 |
| Table Type | Cast Iron |
| Maximum Rip Right of Blade (In.) | 30 |
| Motor Voltage (V.) | 115/230 |
| Dust Port Outside Diameter (In.) | 4 |
| Table Size with Full Extensions (In.) | 57 x 27 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Motor Phase | 1 |
| Arbor Diameter (In.) | 5/8 |
| Recommended Circuit Size (Amps.) | 20 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Motor Current (Amps) | 15/7.5 |
| Table Size with Extensions (In.) | 40 x 27 |
| Maximum Depth of Cut at 90 Degrees (In.) | 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
