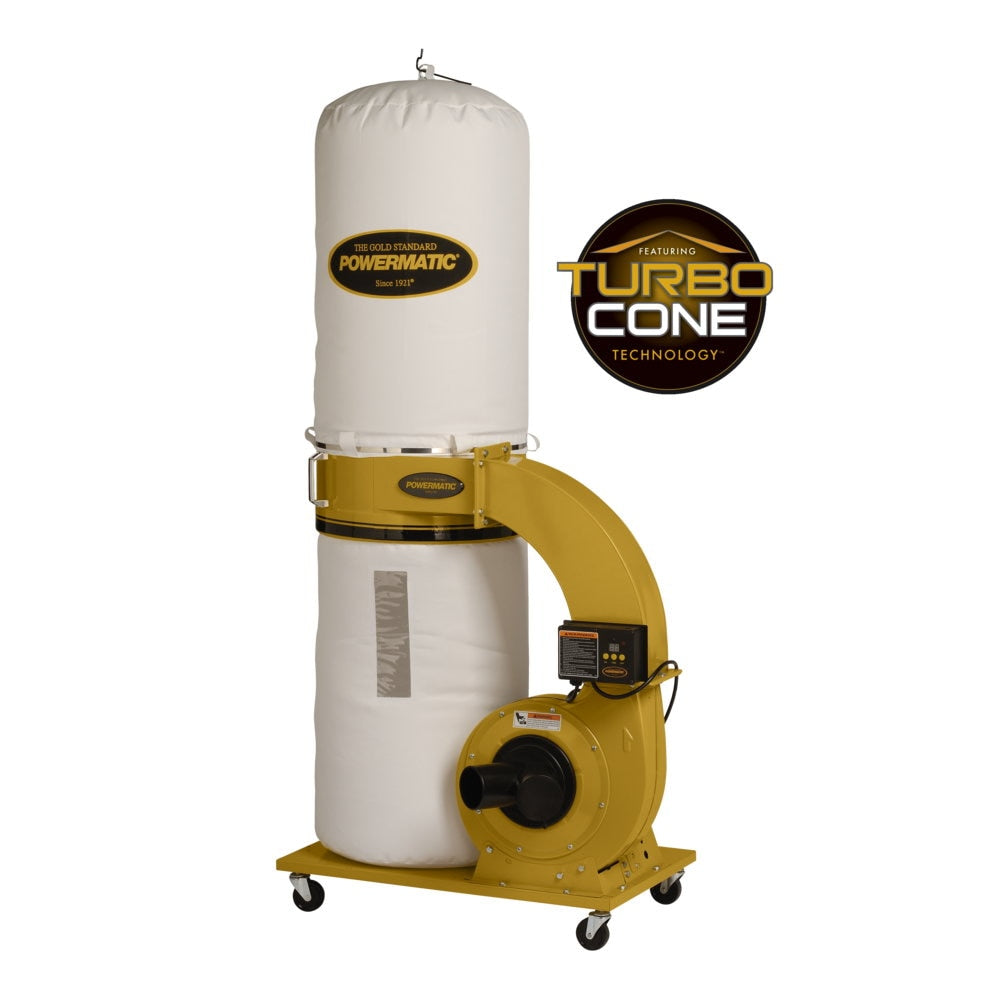

Powermatic PM9-1791078K PM1300TX-BK Dust Collector, 30-Micron Bag Filter Kit, 1.75HP
Description
Description
Powermatic 1791078K Description
The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
Powermatic 1791078K Features
- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- All-metal duct construction for rigidity and improved air flow
- Dual 4" dust ports for simultaneous collection from two machines
- 1-3/4HP motor offers plenty of power for effective air movement
- Cloth collection bag with view window uses snap ring for rapid installation/removal
- 10 cubic feet capacity collection bag reduces number of bag changes.
- Tall filter bag requires less cleaning due to the larger surface area
- Four swivel casters for easy maneuverability
Powermatic 1791078K Specifications
| Motor Voltage (V.) | 115/230 |
| Impeller Diameter (In.) | 12 |
| Prewired Voltage (V.) | 115 |
| Impeller Fins | 6 |
| Recommended Circuit Size (Amps.) | 20/15 |
| Motor Current (Amps) | 15/7.5 |
| Static Pressure (WC) | 11.31 |
| Filter Bag/Canister Length (In.) | 48 |
| Number of Air Inlets | 1(6") or 2(4") |
| 1-Hose Connection Diameter (In.) | 6 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 6" (CFM) | 1,064 |
| Sound Rating (DB) | 75 - 90 |
| Efficiency (Micron) | 30 |
| Collection Bag Capacity (Cu. Ft.) | 10 |
| Bag Diameter (In.) | 20 |
| Collection Bag Length (In.) | 30 |
| Impeller Material | Steel |
| Velocity @ 6" (FPM) | 5,374 |
