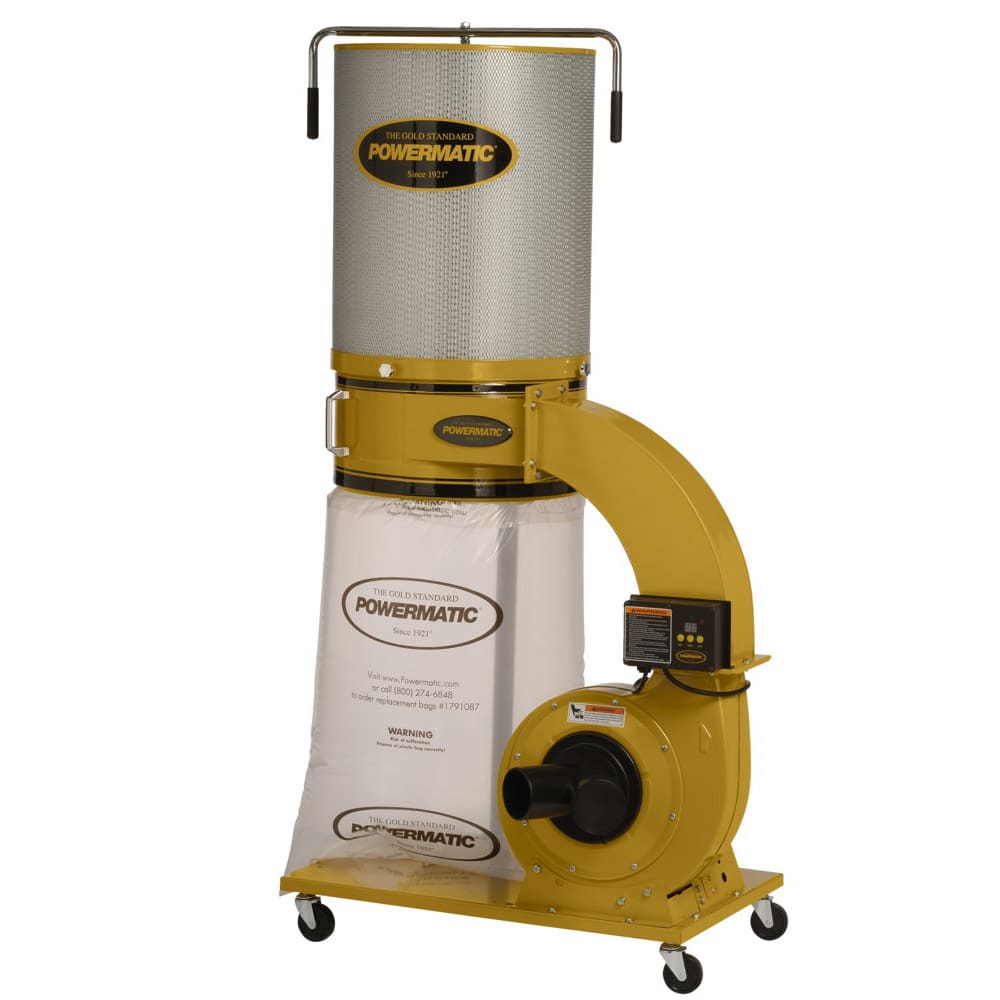

Powermatic PM9-1791079K PM1300TX-CK Dust Collector, 2-Micron Canister Kit, 1.75HP
Description
Description
Powermatic 1791079K Description
The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
Powermatic 1791079K Features
- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- Canister filter offers over six times filtering surface area of standard bags
- All-metal duct construction for rigidity and improved air flow
- Dual 4" dust ports for simultaneous collection from two machines
- 1-3/4HP motor offers plenty of power for effective air movement
- Collection bag uses a snap ring for rapid installation and removal
- 10 cubic feet capacity collection bag reduces number of bag changes.
- Four swivel casters for easy maneuverability
Powermatic 1791079K Specifications
| Motor Voltage (V.) | 115/230 |
| Impeller Diameter (In.) | 12 |
| Prewired Voltage (V.) | 115 |
| Impeller Fins | 6 |
| Recommended Circuit Size (Amps.) | 20/15 |
| Motor Current (Amps) | 15/7.5 |
| Static Pressure (WC) | 11.31 |
| Filter Bag/Canister Length (In.) | 26 |
| Number of Air Inlets | 1(6") or 2(4") |
| 1-Hose Connection Diameter (In.) | 6 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 6" (CFM) | 1,064 |
| Sound Rating (DB) | 75 - 90 |
| Efficiency (Micron) | 2 |
| Collection Bag Capacity (Cu. Ft.) | 10 |
| Bag Diameter (In.) | 20 |
| Collection Bag Length (In.) | 30 |
| Impeller Material | Steel |
| Velocity @ 6" (FPM) | 5,374 |
