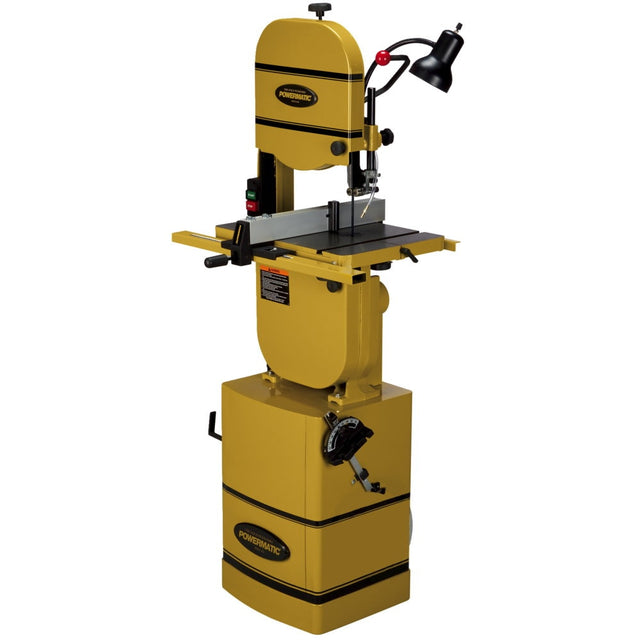

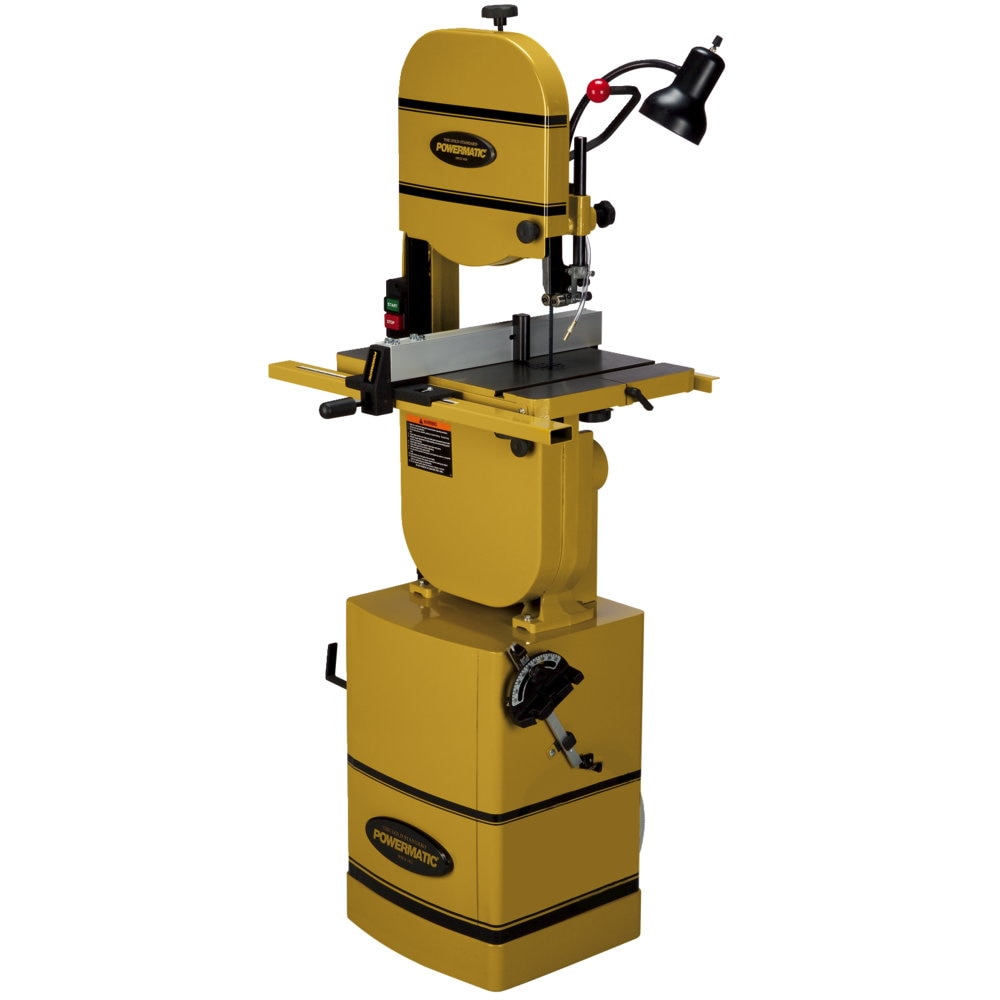

Powermatic PM9-1791216K PWBS-14CS 14" Bandsaw, 1-1/2HP, 1PH, 115V/230V
Description
Description
Powermatic 1791216K Description
The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Powermatic 1791216K Features
- CARTER™ quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
- Extra-large, two piece cast iron table consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20"
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Exclusive design, quick-release precision T-square style rip fence with 4" resaw attachment
- Precision balanced, nine spoke cast iron wheels reduce vibration
- Easy to read tensioning gauge settings indicated in "blade width" increments
- Full 6" Resaw capacity (12" with riser block) with 13-1/2" width capacity
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Rigid one-piece welded stand requires no assembly
Powermatic 1791216K Specifications
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 11/5.5 |
| Motor Power (HP) | 1-1/2 |
| Table Size with Extension (L x W) | 15 x 20-1/2 |
| Table Height from Floor (In.) | 44 |
| Table Tilt (Deg.) | 10 Left, 45 Right |
| Blade Speed (SFPM) | 3,000 |
| Table Size (L x W) (In.) | 15 x 15 |
| Style (Type) | Bandsaw |
| Motor Voltage (V.) | 115/230 |
| Motor Phase | 1 |
| Blade Length (In.) | 93-1/2 |
| Band Saw Size/Wheel Diameter (In.) | 14 |
| Cutting Capacity Height (In.) | 6 |
| Cutting Capacity Width (In.) | 13-1/2 |
| Maximum Saw Blade Width (In.) | 3/4 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Dust Port Outside Diameter (In.) | 4 |
