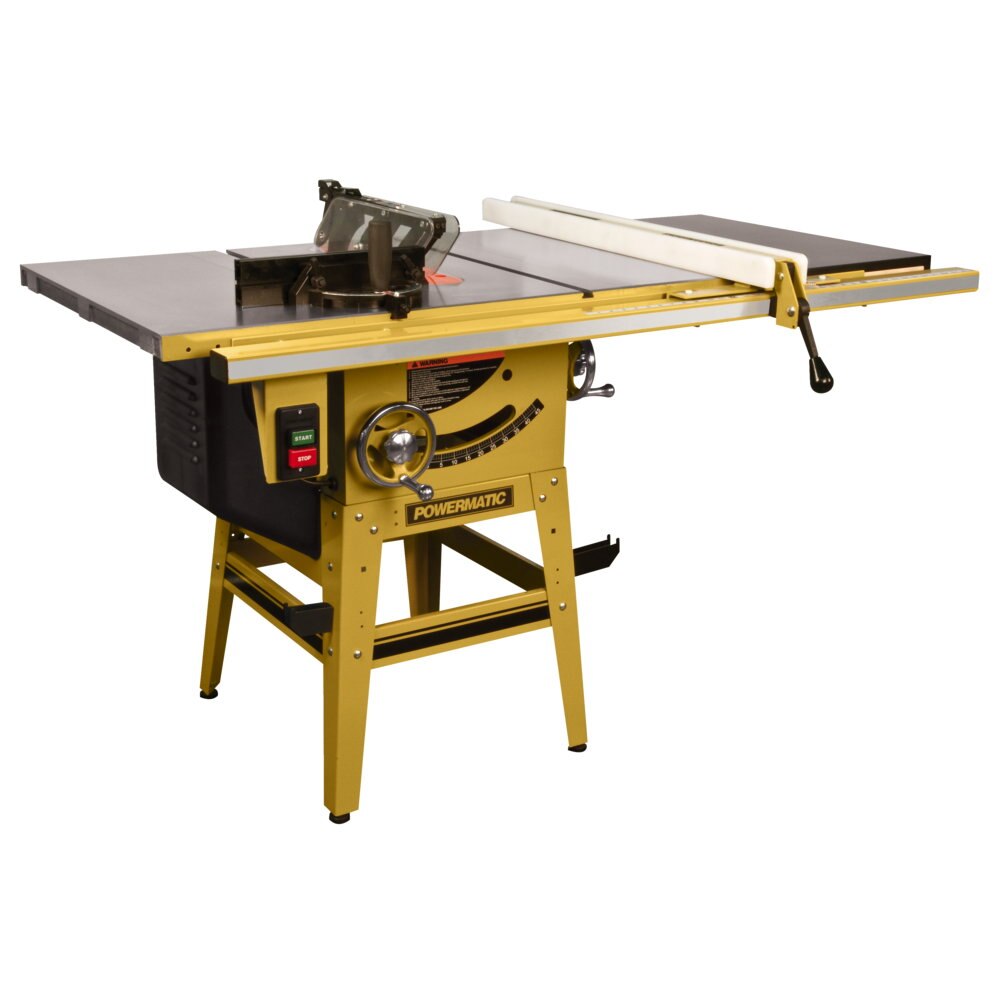

Powermatic PM9-1791230K 64B Table Saw with 50" Fence, Riving Knife, 1.75HP, 115/230V
Description
Description
Powermatic 1791230K Description
The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops, and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.
Powermatic 1791230K Features
- Riving knife maintains close blade proximity to reduce chance of kickback
- Micro-adjust miter gauge with extension plate offers wider crosscut support
- Blade guard and riving knife have quick release for tool-less mounting and removal
- Precision ground cast iron table and wings have beveled edge for smooth miter gauge entry
- Built-in extraction port increases dust collection efficiency
- Heavy cast iron trunnion ensures smooth blade positioning
- Chrome trimmed handwheels are ergonomically designed
- Accu-Fence locks to rail without play
- (Blade not included)
Powermatic 1791230K Specifications
| Style (Type) | Contractor |
| Prewired Voltage (V.) | 115 |
| Table Height from Floor (In.) | 36 |
| Maximum Diameter of Dado (In.) | 8 |
| Arbor Speed (RPM) | 3,800 |
| Maximum Rip Left of Blade (In.) | 12 |
| Table Size (In.) | 20-1/8 x 27 |
| Maximum Width of Dado (In.) | 13/16 |
| Motor Power (HP) | 1-3/4 |
| Blade Diameter (In.) | 10 |
| Table Type | cast iron |
| Maximum Rip Right of Blade (In.) | 50 |
| Motor Voltage (V.) | 115/230 |
| Dust Port Outside Diameter (In.) | 4 |
| Table Size with Full Extensions (In.) | 79-5/8 x 27 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Motor Phase | 1 |
| Arbor Diameter (In.) | 5/8 |
| Recommended Circuit Size (Amps.) | 20 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Motor Current (Amps) | 15,/7.5 |
| Table Size with Extensions (In.) | 44-1/4 x 27 |
| Maximum Depth of Cut at 90 Degrees (In.) | 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 11-1/2 |
