Powermatic PM9-1791260B PM2415B-3 24" Bandsaw, 5HP, 3PH, 230/460V
Description
Description

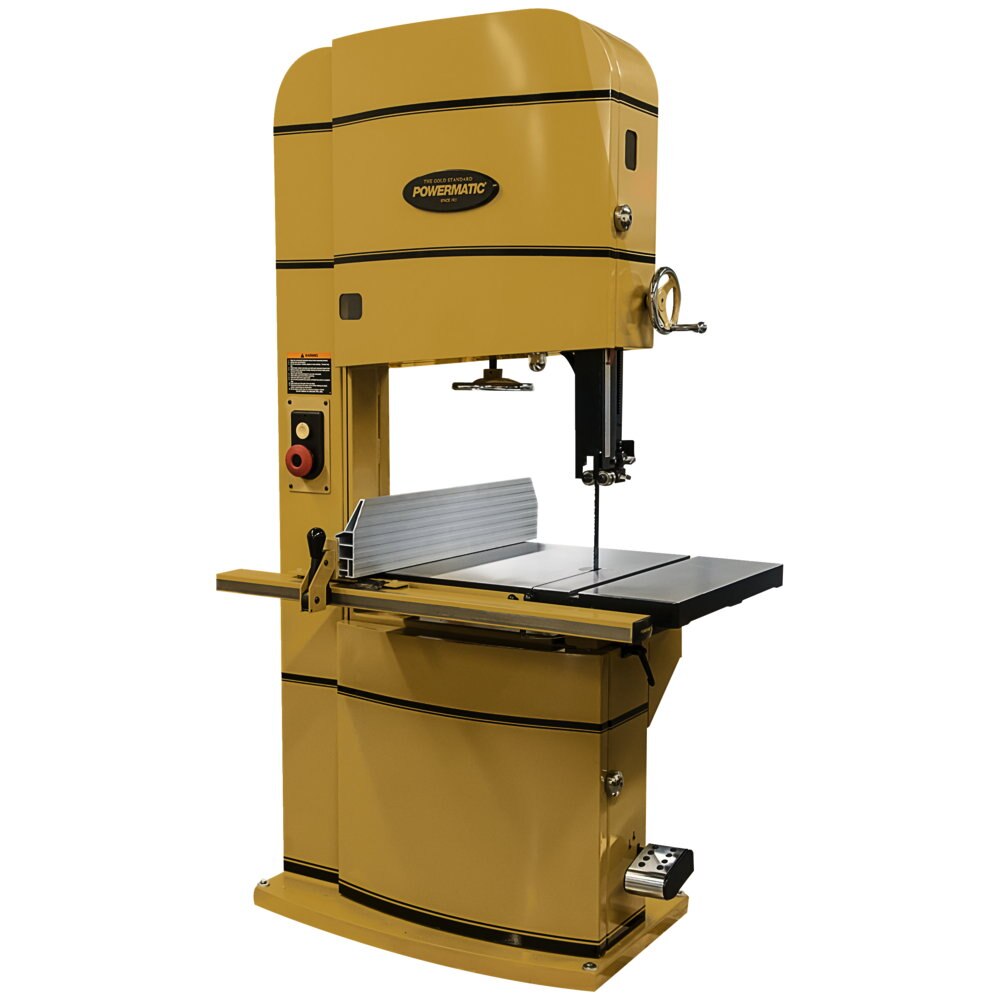

Powermatic 1791260B Description
At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.
Powermatic 1791260B Features
- Exclusive Powermatic T-Square style Accu-Fence® maximizes accuracy and safety
- The Accu-Fence has complete adjustability for aligning to blade and squaring to table
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Positive locking cam with pressure adjustment
- Oversized side plate can be used in the horizontal or vertical position
- Solid steel resaw post for optimum rigidity
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending)
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
Powermatic 1791260B Specifications
| Prewired Voltage (V.) | 230 |
| Motor Current (Amps) | 15/7.5 |
| Motor Power (HP) | 5 |
| Table Height from Floor (In.) | 35 |
| Table Tilt (Deg.) | 10 Left, 45 Right |
| Blade Speed (SFPM) | 2500/4800 |
| Table Size (L x W) (In.) | 24 x 34 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Miter Gauge Positive Stops | 45, 90 |
| Motor Voltage (V.) | 230/460 |
| Motor Phase | 3 |
| Blade Length (In.) | 183 |
| Cutting Capacity Height (In.) | 15 |
| Cutting Capacity Width (In.) | 24 |
| Maximum Saw Blade Width (In.) | 1-1/2 |
| Minimum Saw Blade Width (In.) | 1/4 |
| Dust Port Outside Diameter (In.) | 4 |
