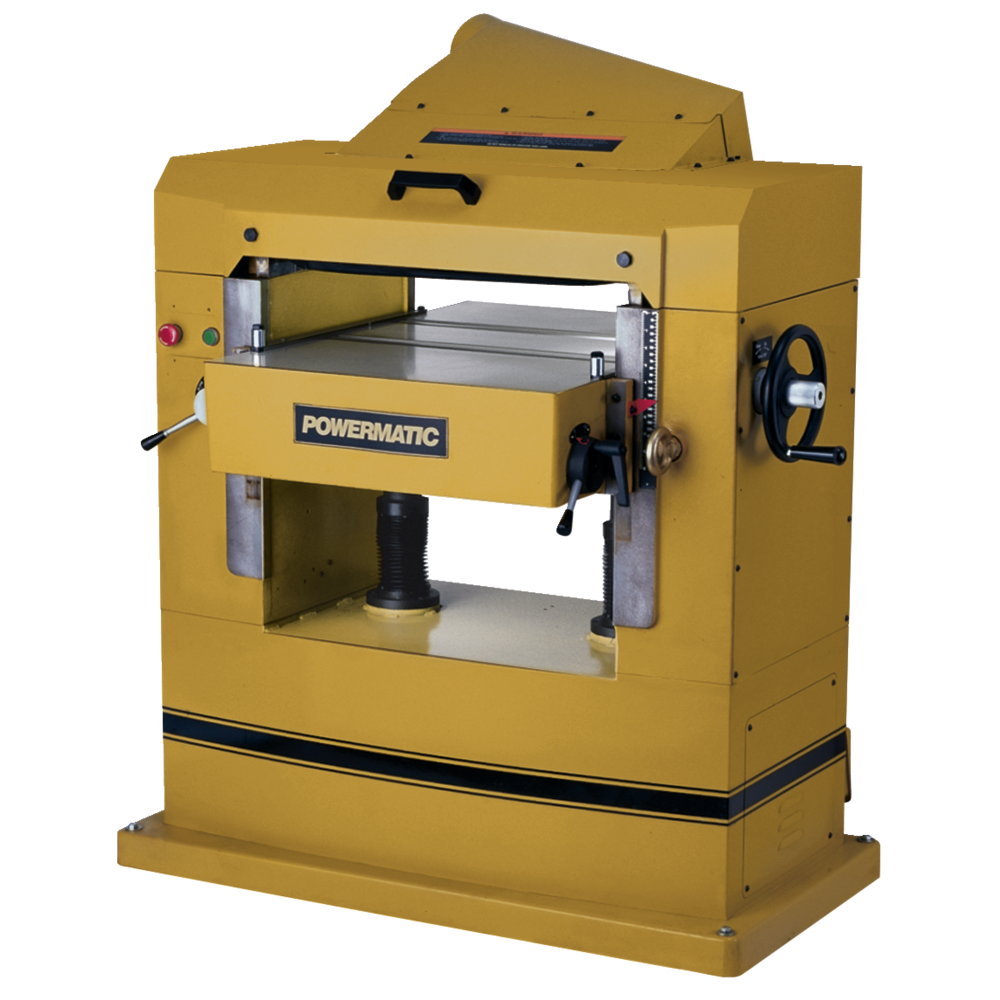

Powermatic PM9-1791267 201HH 22" Planer with Helical Cutterhead, 7.5HP, 1PH, 230V
Description
Description
Powermatic 1791267 Description
This 1,300-pound heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives, and has a 5” dust port for easy attachment to any dust collection system. The cutterhead is a helical design with 150 four sided knife inserts – these produce a superior finish and much quieter operation compared to conventional cutterheads, and the inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7-1/2 horsepower motor, the 201HH Planer is perfect for the small to medium shop with continuous planing requirements.
Powermatic 1791267 Features
- Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- Cast iron 1300 lb. construction for solid performance without vibration
- 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
- Segmented infeed roller with sectional chipbreaker allows multiple board planing
- Roller bearing-mounted feed rollers for long life
- Adjustable bed rollers allow smooth feeding of rough or finished workpieces
- Oversized cast iron table travels on 2 large lead screws for heavy duty support
- Dust chute with 5" port for dust collection
- Standard Equipment:
- Dust collection port
Powermatic 1791267 Specifications
| Motor Phase | 1 |
| Infeed Roller Diameter (In.) | 3 |
| Cutterhead Diameter (In.) | 3-1/4 |
| Recommended Circuit Size (Amps.) | 50 |
| Maximum Depth of Cut (In.) | 3/16 |
| Maximum Planing Width (In.) | 22 |
| Motor Voltage (V.) | 230 only |
| Column Diameter (In.) | 2-1/2 |
| Feed Rate (FPM) | 20/30 |
| Table Size (L x W) (In.) | 32-1/4 x 24 |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Number of Speeds | 2 |
| Knife Size (L x W x T) | 15 x 15 x 2.5 |
| Number of Knives | 150 Four-Sided Inserts |
| Segmented Infeed Roller Diameter (In.) | 3 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 0.05 |
| Bed Rollers Adjustable from Front | 2 |
| Type of Cutterhead | Helical |
| Style (Type) | Planer |
| Outfeed Roller Diameter (In.) | 3 |
| Maximum Planing Thickness (In.) | 9-1/4 |
| Table Support | 2 Column |
| Motor Power (HP) | 7-1/2 |
| Minimum Planing Length (In.) | 10 |
| Cutterhead Speed (RPM) | 4,800 |
| Dust Port Outside Diameter (In.) | 5 |
