Powermatic PM9-1791276 DS20 20" Disc Sander, 2HP, 1PH, 230V
$330.00 off
Free Shipping
See Price In Cart
Unit price
/
Unavailable
Description
Description
Powermatic 1791276 Description

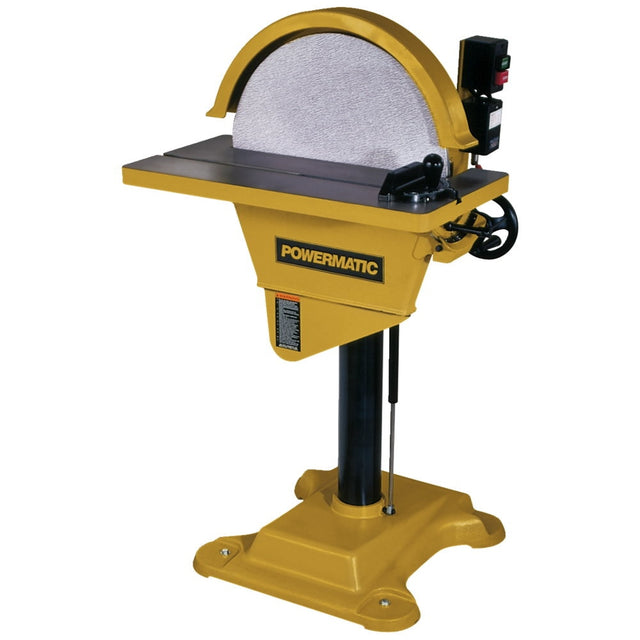

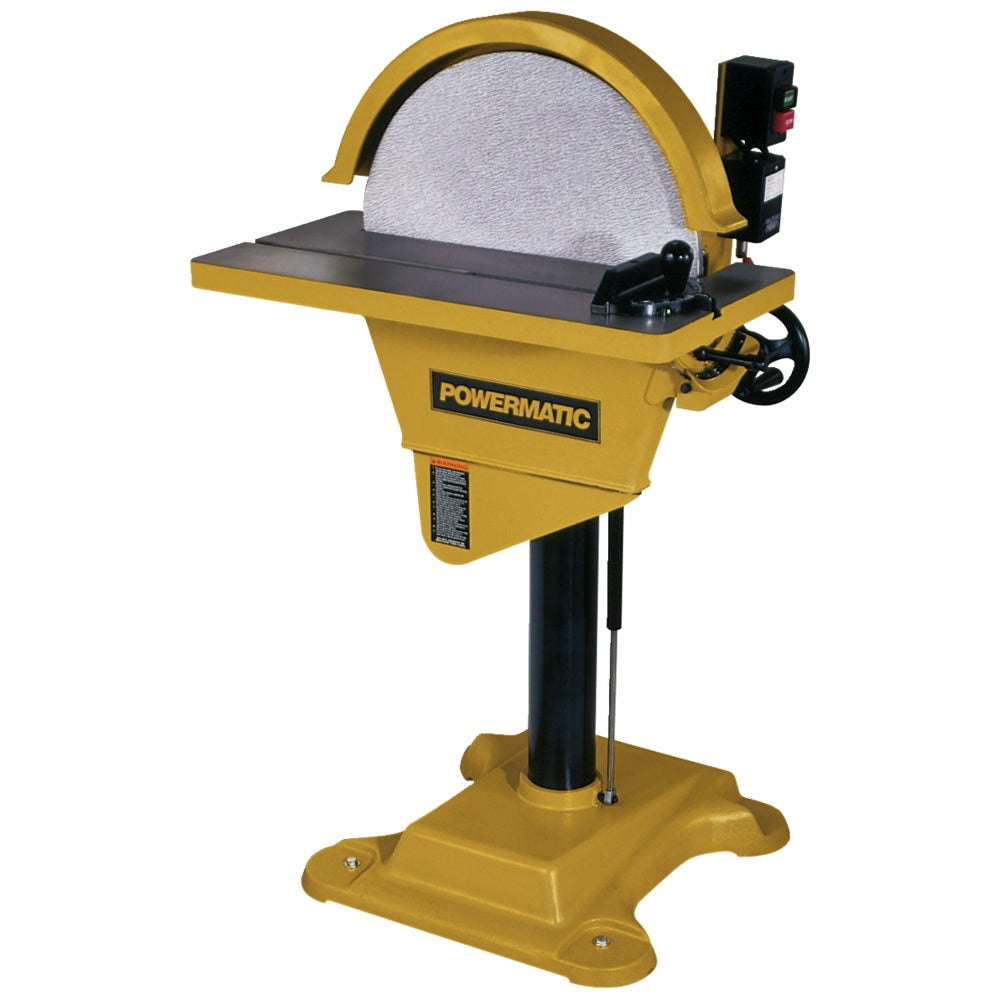

The DS20 20" Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.
Powermatic 1791276 Features
- Direct drive from motor to disc for maximum efficiency
- Tilting table allows bevel sanding
- Miter gauge for angle sanding
- 20" sanding disc for larger workpieces
- 4" port for connection to any dust collection system
- Cast iron base for rigidity
Powermatic 1791276 Specifications
| Disc Diameter (In.) | 20 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Style (Type) | Disc |
| Dust Port Outside Diameter (In.) | 4 |
| Disc Table Size (L x W) (In.) | 10-1/2 x 27-1/2 |
| Motor Phase | 1 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 only |
| Recommended Circuit Size (Amps.) | 30 |
| Motor Current (Amps) | 14 |
| Disc Speed (RPM) | 1,720 |
| Disc Table Tilt (Deg.) | 30 Up, 45 Down |
