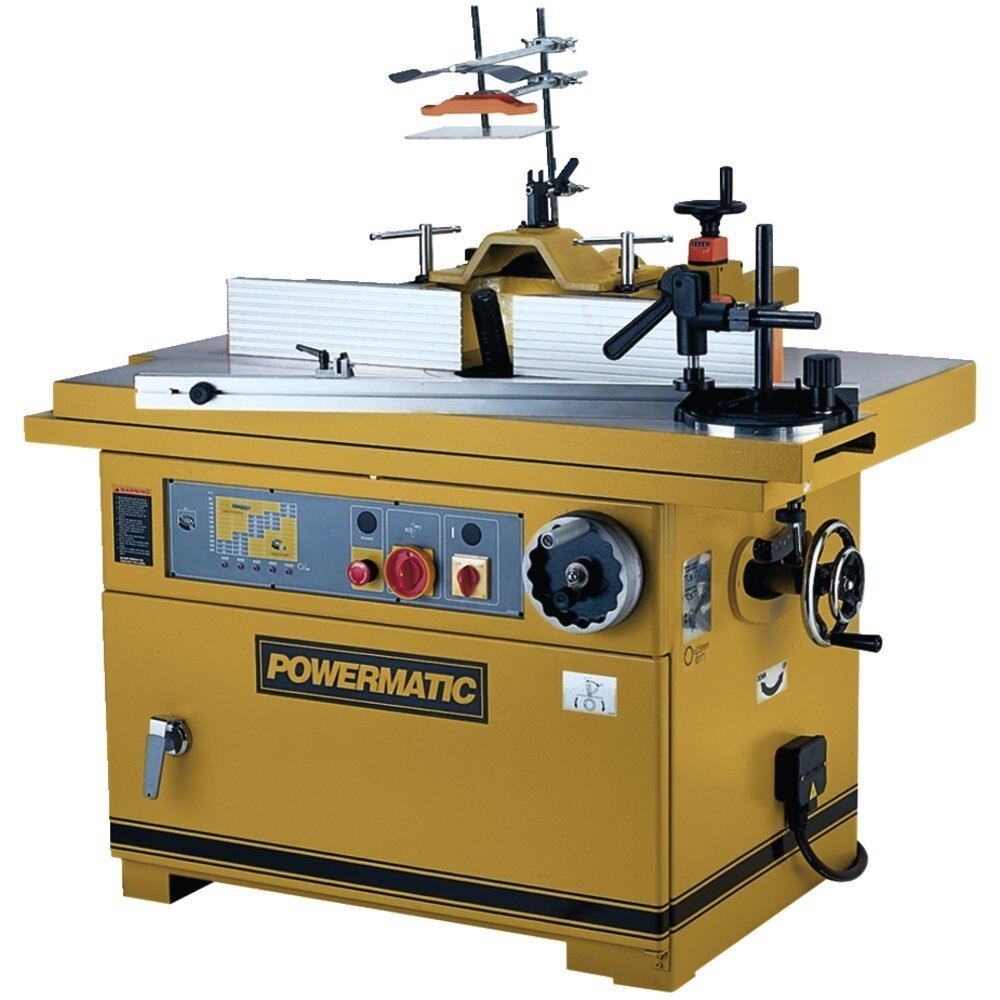

Powermatic PM9-1791284 TS29 Shaper with Sliding Table, 7-1/2HP, 3PH, 230/460V
Description
Description
Powermatic 1791284 Description
The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
Powermatic 1791284 Features
- Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons
- Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
- Large table with built-in slider with room for stock feeder
- 7" vertical spindle travel allows stacked tooling
- Spindle tilts negative 5° to positive 45° for increased versatility
- Large diameter multiple table inserts accommodate virtually any size cutter
- Five spindle speeds in forward and reverse with lighted indicator
Powermatic 1791284 Specifications
| Electrical Controls | 24 volt |
| Table Inserts (In.) | 2-1/5, 5-1/2, Oval (Tilting) |
| Reversible | Yes |
| Spindle Size Under Nut (In.) | 3/4 (3-1/2), 1 (6), 1-1/4 (6-1/2) |
| Recommended Circuit Size (Amps.) | 30/15 |
| Table Travel (In.) | 49-1/4 |
| Maximum Diameter Cutter Above Table (In.) | 12 |
| Maximum Diameter Cutter Below Table (In.) | 9 |
| Motor Phase | 3 |
| Router Bit Collet Included | 1/4, 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Fence Travel (Major and Minor) (In.) | 5-3/8, 3-5/8 |
| Spindle Speed (RPM) | 3,000, 4,000, 6,000, 8,000, 10,000 |
| Motor Voltage (V.) | 230/460 |
| Table Size (In.) | 51-1/2 x 33-1/2 |
| Fence Size (L x H) (In.) | 46 x 5 |
| Dust Port Outside Diameter (In.) | 5 (x2) |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Style (Type) | Shaper |
| Spindle Tilt (Deg.) | 45 Forward, 5 Back |
| Spindle Travel (In.) | 7 |
| Prewired Voltage (V.) | 230 |
| Spindles Included | 3/4, 1, 1-1/4 |
| Sliding Table Size (In.) | 11-1/4 x 51-1/4 |
| Motor Power (HP) | 7-1/2 |
