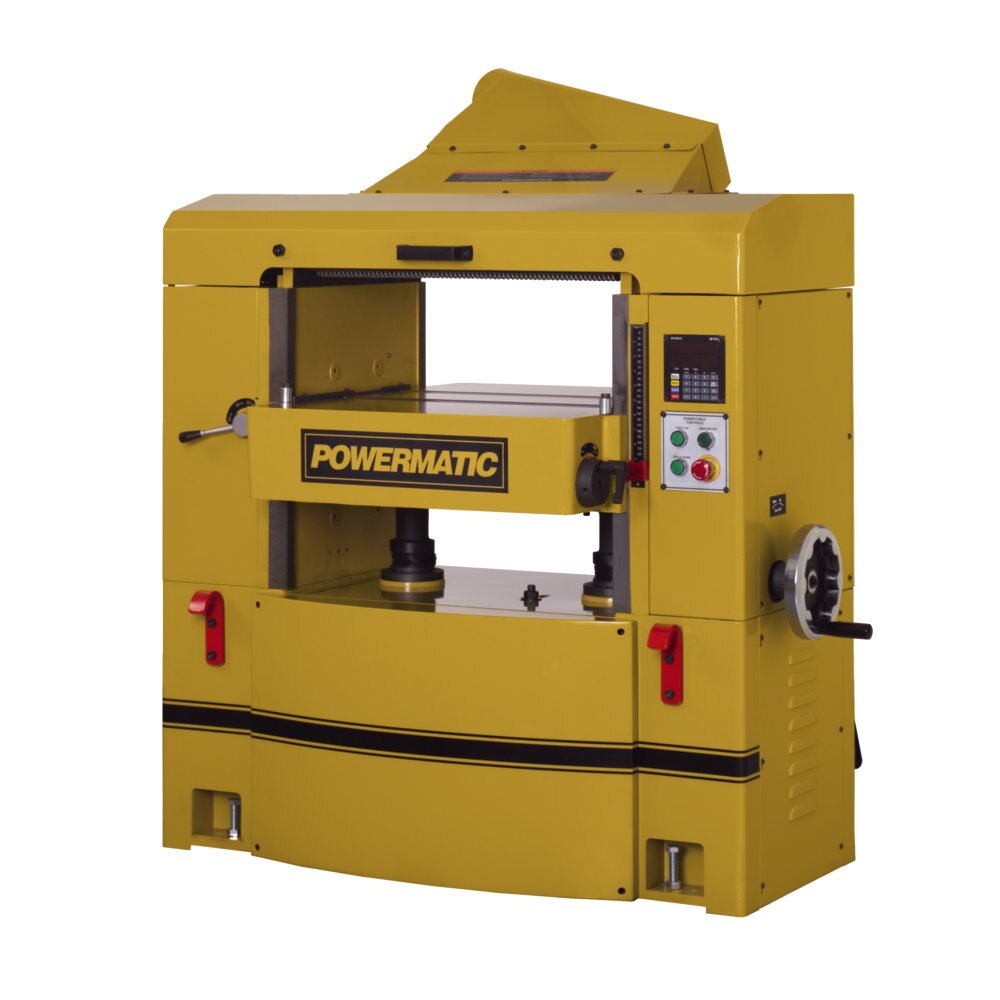

Powermatic PM9-1791303 WP2510 25" Planer with Helical Cutterhead, 15HP, 230/460V
Description
Description
Powermatic 1791303 Description
The POWERMATIC® WP2510 Planer has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3" diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05". The hood features a built-in 5" diameter dust chute.
Powermatic 1791303 Features
- Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
- Digital readout and simple PC controller make quick and easy table height set ups
- Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
- Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
- 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
- 3 speed feed selector allows you to quickly change feed rates
- Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
Powermatic 1791303 Specifications
| Motor Phase | 3 |
| Cutterhead Diameter (In.) | 3-3/8 |
| Recommended Circuit Size (Amps.) | 50/25 |
| Maximum Depth of Cut (In.) | 1/4 |
| Maximum Planing Width (In.) | 25 |
| Motor Voltage (V.) | 230/460 |
| Column Diameter (In.) | 2-1/2 |
| Cuts Per Minute | 30,000 |
| Maximum Full Width Depth of Cut (In.) | 1/8 |
| Motor Current (Amps) | 37/18.5 |
| Prewired Voltage (V.) | 230 |
| Feed Rate (FPM) | 20/25/30 |
| Table Size (L x W) (In.) | 32-3/16 x 26 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Knife Size (L x W x T) | 15 x 15 x 2.5 |
| Number of Knives | 174 Four-Sided Inserts |
| Segmented Infeed Roller Diameter (In.) | 3 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 0.05 |
| Bed Rollers Adjustable from Front | 0 - 0.05 |
| Digital Readout | Inch / Metric |
| Type of Cutterhead | Helical |
| Style (Type) | Planer |
| Outfeed Roller Diameter (In.) | 3 |
| Maximum Planing Thickness (In.) | auto 9/manual 10 |
| Table Support | 2 Column |
| Motor Power (HP) | 15 |
| Minimum Planing Length (In.) | 10 |
| Cutterhead Speed (RPM) | 5,000 |
| Dust Port Outside Diameter (In.) | 5 |
