Powermatic  |  SKU: PM9-1791304  |  Barcode: 662755505065

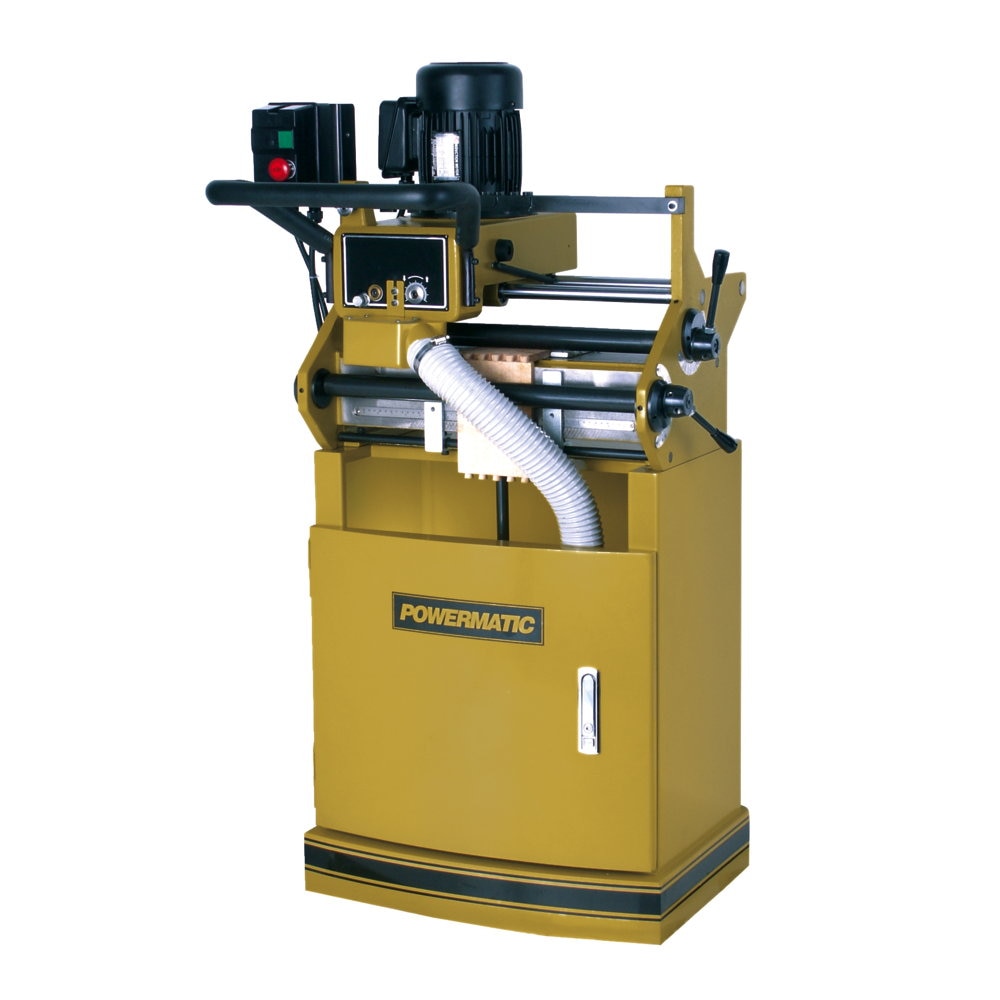

Powermatic PM9-1791304 DT45 Dovetailer, 1HP, 1PH, 230V, Manual Clamping

Free Shipping
$5,899.99 $6,879.99

Description

Powermatic 1791304 Description

The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.

Powermatic 1791304 Features

  • Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
  • Manual eccentric clamping will keep boards firm
  • Eccentric spindle collet for resharpened cutters
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
  • Extra large soft grip handle provides positive control and comfort
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage
  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability

Powermatic 1791304 Specifications

Number of Spindles 1
Maximum Work Piece Size (In.) 31 x 11
Minimum Dovetail Height (In.) 3/16
Maximum Side Thickness (In.) 1-3/16
Minimum Front Thickness (In.) 9/32
Center to Center Dovetail Spacing (In.) 1, 1-1/2, 2, 2-1/2
Motor Power (HP) 1
Dust Collection Minimum CFM Required (CFM) 500
Prewired Voltage (V.) 115
Maximum Front Thickness (In.) 1-3/4
Motor Voltage (V.) 115/230
Maximum Dovetail Height (In.) 3/4
Number of Dovetail Center Lines 4
Minimum Work Piece Size (L x W)(In.) 7-7/8 x 2-3/8
Spindle Speed (RPM) 18,500
Motor Phase 1
Minimum Side Thickness (In.) 9/32
Dust Port Outside Diameter (In.) 2-1/2, Rear 4
Style (Type) Manual
Table Height From Floor (In.) 35
