Powermatic  |  SKU: PM9-1791305  |  Barcode: 662755511837

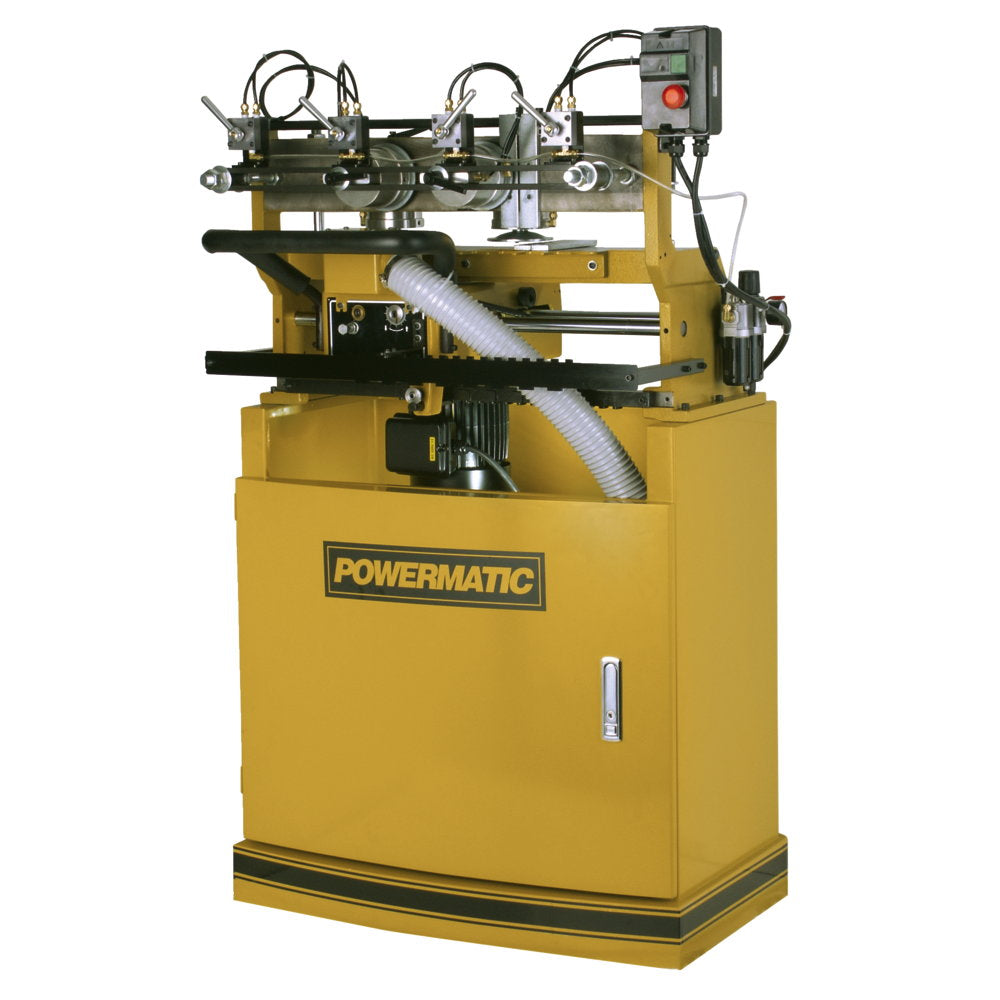

Powermatic PM9-1791305 DT65 Dovetailer, 1HP, 1PH, 230V, Pneumatic Clamping

$800.00 off Free Shipping
See Price In Cart

Description

Powermatic 1791305 Description

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.

Powermatic 1791305 Features

  • Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
  • Pneumatic clamping provides quick locking and unlocking of the work piece
  • Eccentric spindle collet for resharpened cutters
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
  • Extra large soft grip handle provides positive control and comfort
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage
  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability

Powermatic 1791305 Specifications

Number of Spindles 1
Maximum Work Piece Size (In.) 59 x 16-1/2
Minimum Dovetail Height (In.) 3/16
Maximum Side Thickness (In.) 1-3/16
Minimum Front Thickness (In.) 9/32
Center to Center Dovetail Spacing (In.) 1, 1-1/2, 2, 2-1/2
Motor Power (HP) 1
Dust Collection Minimum CFM Required (CFM) 500
Maximum Front Thickness (In.) 2-3/8
Motor Voltage (V.) 230 only
Maximum Dovetail Height (In.) 3/4
Number of Dovetail Center Lines 4
Minimum Work Piece Size (L x W)(In.) 7-7/8 x 2-3/8
Spindle Speed (RPM) 18,500
Motor Phase 1
Minimum Side Thickness (In.) 3/8
Dust Port Outside Diameter (In.) 2-1/2, Rear 4
Style (Type) Pneumatic
Table Height From Floor (In.) 45
