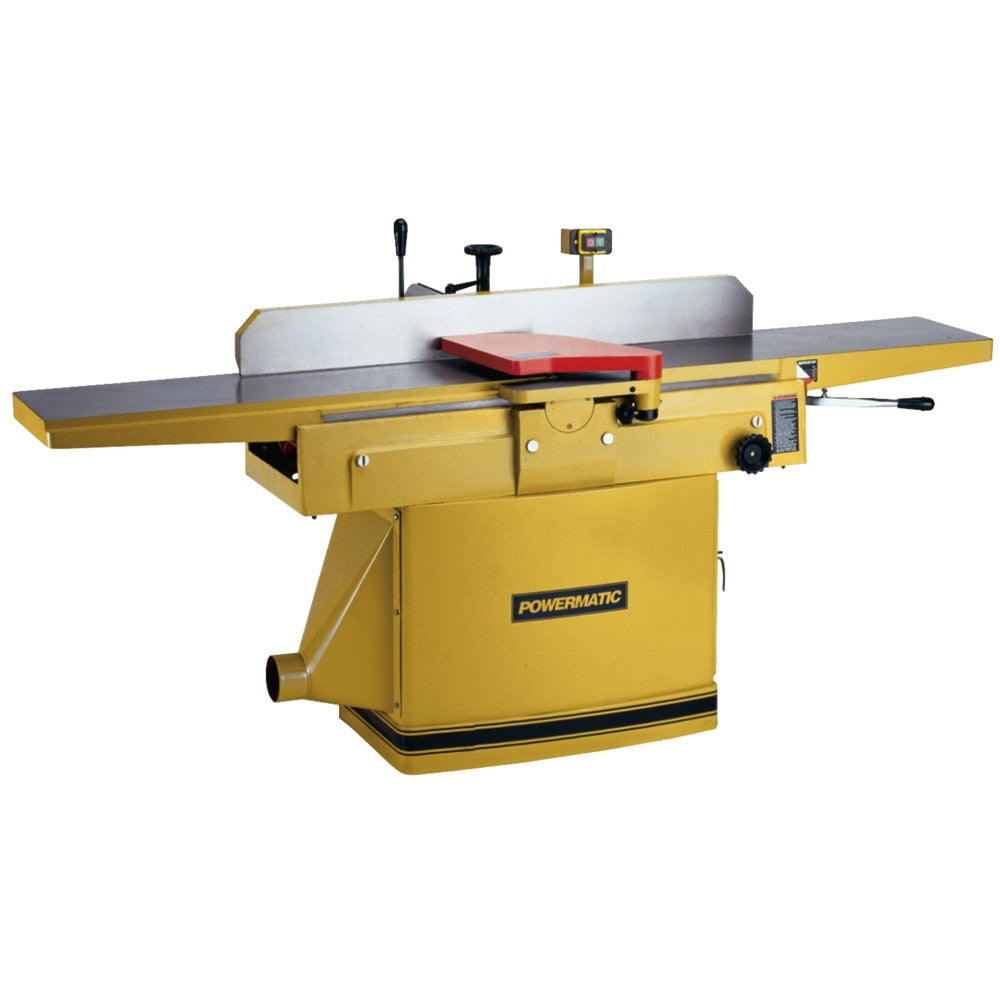

Powermatic PM9-1791308 1285 12" Jointer with Helical Cutterhead, 3HP, 3PH
Description
Description
Powermatic 1791308 Description
This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.
Powermatic 1791308 Features
- Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments
- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Large 84" x 12" table surface for heavy-duty work
- Table "lips" on both sides of cutterhead aid in noise reduction
- Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
- 3HP motor provides plenty of power
- Standard Equipment:
- Cutterhead guard
- Heavy duty fence
Powermatic 1791308 Specifications
| Rabbeting Capacity (In.) | 3/4 |
| Table Size (L x W) (In.) | 84 x 12 |
| Helical Knife Size (L x W x T) (In.) | 1.18 x .472 x .079 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Cutterhead Speed (RPM) | 5,000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Motor Voltage (V.) | 230/460 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 3 |
| Number of Knives | 42 |
| Recommended Circuit Size (Amps.) | 15/10 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Standard Knife Size (L x W x T) (In.) | 30 x 12 x 2 |
| Fence Size (L x H) (In.) | 47 x 5-1/2 |
| Table Height from Floor (In.) | 31-1/2 |
