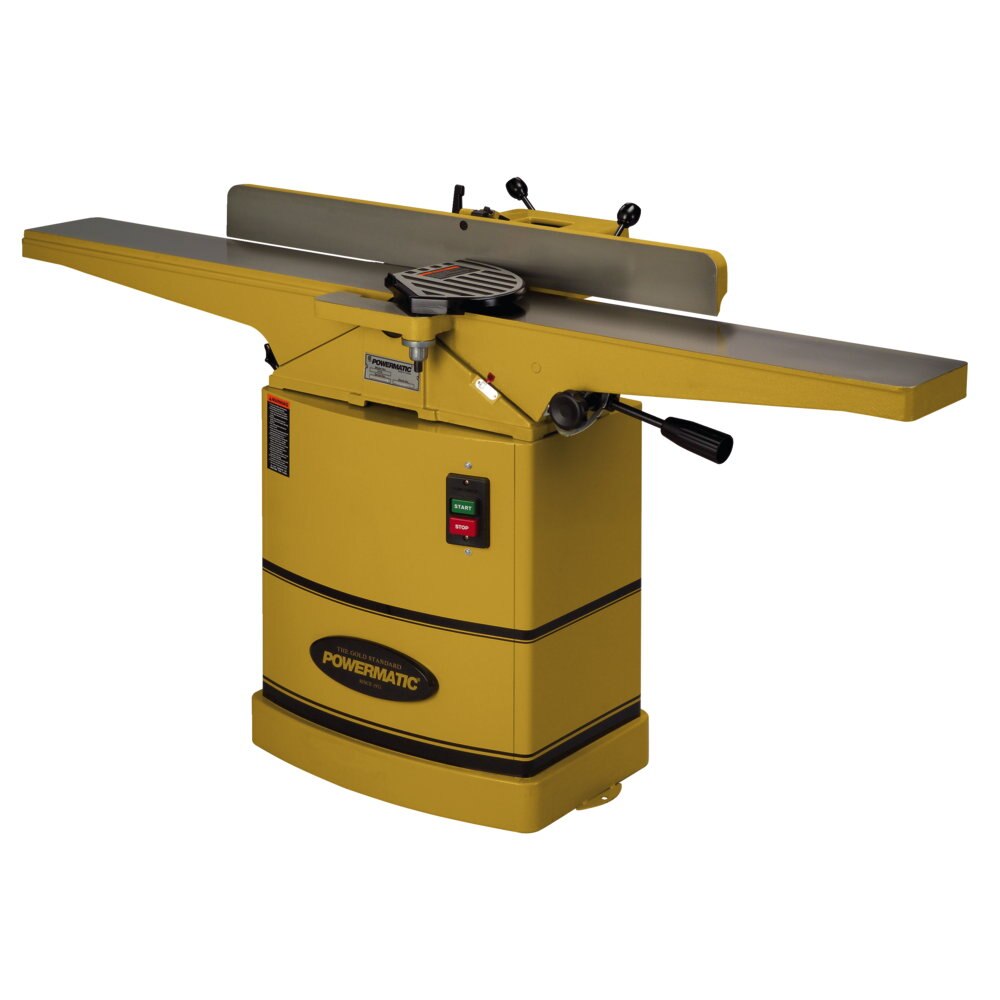

Powermatic PM9-1791317K 54HH 6" Jointer with Helical Cutterhead, 1HP, 1PH, 115/230V
Description
Description
Powermatic 1791317K Description
This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
Powermatic 1791317K Features
- Helical cutterhead with 4-sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
- 66" long adjustable infeed and outfeed tables provide more working surface
- Fine/quick adjustment lever on infeed table for precision cuts
- Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
- Enlarged sheet metal stand provides a sturdy base
- 1HP motor offers plenty of power
- Fence controls are center-mounted for convenience
- Push button switch is lockable to prevent accidental starting
- 4" port for dust collection
- Standard Equipment:
Powermatic 1791317K Specifications
| Rabbeting Capacity (In.) | NA |
| Table Size (L x W) (In.) | 66 x 7-1/4 |
| Helical Knife Size (L x W x T) (In.) | 15 x 15 x 2.5 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1 |
| Cutterhead Speed (RPM) | 6,000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Outfeed Table Length (In.) | 32-1/2 |
| Motor Voltage (V.) | 115/230 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Cutting Capacity (W x D) (In.) | 6 x 1/2 |
| Prewired Voltage (V.) | 115 |
| Motor Phase | 1 |
| Number of Knives | 40 |
| Recommended Circuit Size (Amps.) | 20/10 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (Amps) | 13/6.5 |
| Fence Size (L x H) (In.) | 38 x 4 |
| Table Height from Floor (In.) | 31-1/2 |
| Infeed Table Length (In.) | 32-1/2 |
