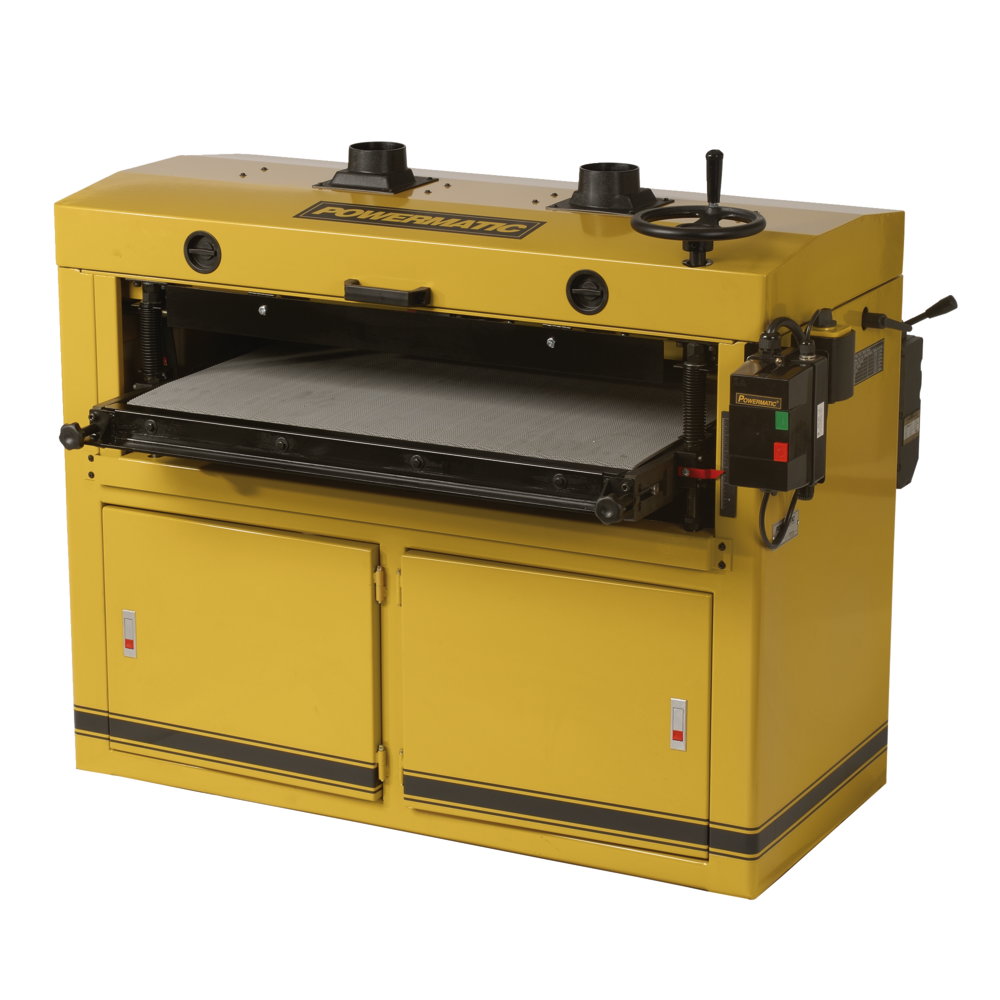

Powermatic PM9-1791321 DDS-237 37" Dual Drum Sander, 10HP, 3PH, 230/460V

FEATURES:
• 10HP motor for plenty of power
• Independently adjustable rear drum for fine tuning
• Hard durometer rubber coating on steel drums provide flat, smooth finish
• Two-speed gearbox for wide range of sanding projects
• Full size cast iron table for solid support
• Forward/reverse poly conveyor belt grips stock evenly
• Dual dust ports with directional baffles for more efficient dust removal
• Standard Equipment:
• Two speed gearbox
• Dual 4" dust ports

SPECIFICATIONS:
• Style (Type): Drum
• Prewired Voltage (V.): 230
• Drum Length (In.): 37
• Conveyor Speed (FPM): 8 & 12
• Motor Phase: 3
• Drum Diameter (In.): 6
• Maximum Board Thickness (In.): 5-1/4
• Motor Voltage (V.): 230/460
• Minimum Board Thickness (In.): 1/32
• Number of Sanding Drums: 2
• Motor Power (HP): 10
• Minimum Board Length (In.): 9
• Conveyor Motor (HP): 1/4
• Dust Collection Minimum CFM Required (CFM): 1,200
• Dust Port Outside Diameter (In.): two @ 4"
• Maximum Board Width (In.): 37
• Recommended Circuit Size (Amps.): 35/20
• Drum Speed (RPM): 1,700


This is a production class Dual Drum Sander that is loaded with features. A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
