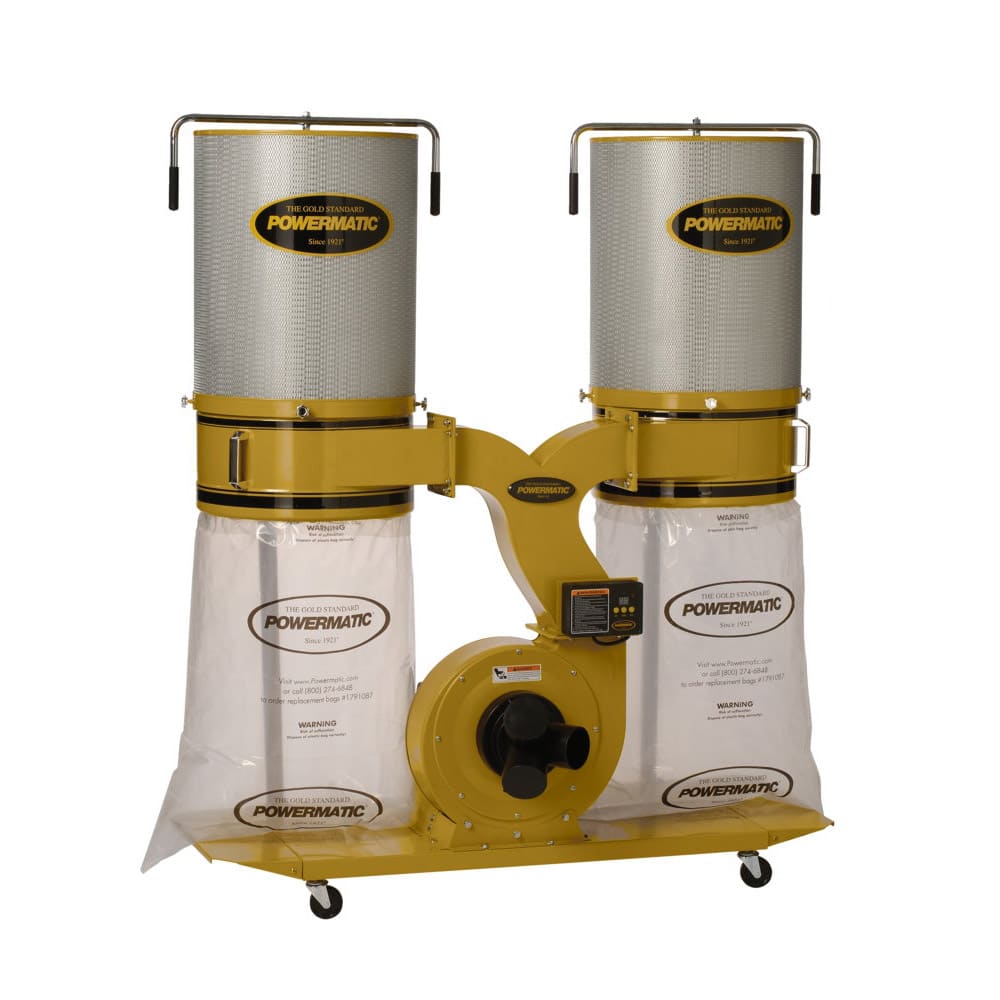

Powermatic PM9-1792074K PM1900TX-CK3 Dust Collector, 2-Micron Canister Kit, 3HP
Description
Description
Powermatic 1792074K Description
The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
Powermatic 1792074K Features
- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- All-metal duct construction for rigidity and improved air flow
- 2-micron canister filters offer over six times filtering surface area of standard bags
- The large impeller is powered by a 3HP motor for peak performance
- Triple 4” dust ports allow for several hoses to be attached at the same time
- Collection bags use a snap ring for rapid installation/removal
- 10 cubic feet collection bag capacity reduces number of bag changes.
- Four swivel casters for easy maneuverability
Powermatic 1792074K Specifications
| Motor Voltage (V.) | 230/460 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Impeller Diameter (In.) | 14 |
| Air Flow @ 8" (CFM) | 1,782 |
| Prewired Voltage (V.) | 230 |
| Impeller Fins | 7 |
| Recommended Circuit Size (Amps.) | 15/10 |
| Motor Current (Amps) | 8.2/4.1 |
| Static Pressure (WC) | 11.31 |
| Filter Bag/Canister Length (In.) | 26 |
| Number of Air Inlets | 1(8") or 3(4") |
| 1-Hose Connection Diameter (In.) | 8 |
| Motor Phase | 3 |
| Motor Power (HP) | 3 |
| Air Flow @ 6" (CFM) | 860 |
| Sound Rating (DB) | 86 - 92 |
| Efficiency (Micron) | 1 |
| Collection Bag Capacity (Cu. Ft.) | 10 |
| Bag Diameter (In.) | 20 |
| Collection Bag Length (In.) | 30 |
| Air Flow @ 4" (CFM) | 236 |
| Impeller Material | Steel |
| Velocity @ 4" (FPM) | 5,200 |
