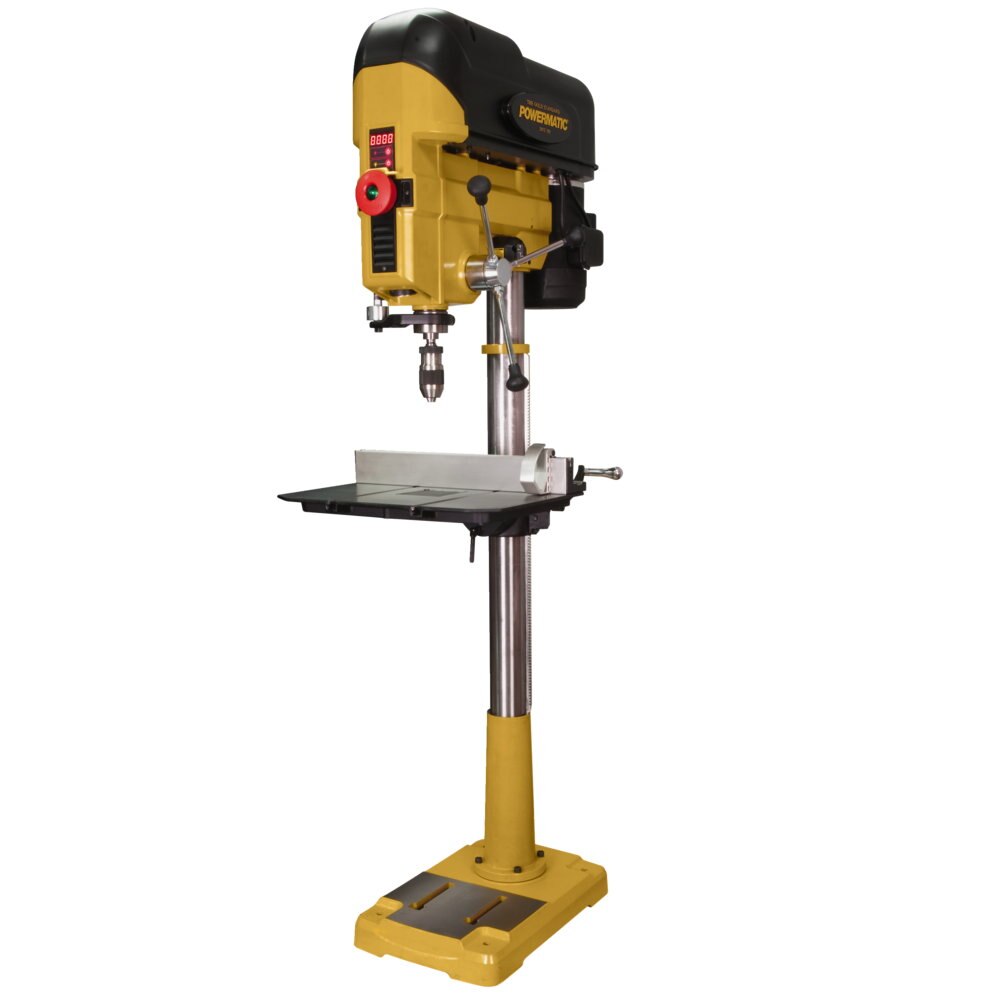

Powermatic PM9-1792800B PM2800B 18" Variable Speed Drill Press, 1HP, 1PH, 115/230V
Description
Description
Powermatic 1792800B Description
At Powermatic, we have a woodworker’s intuition which drives our design process. We look for every opportunity to raise the workshop experience to new levels of performance and functionality. So when we set out to redefine what it means to use a Powermatic Drill Press, we wanted it to be as easy, and as intuitive as possible; to allow you to focus your creative energy on the tasks that make woodworking so rewarding. The PM2800B is the culmination of our efforts. The PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you’ll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.
Powermatic 1792800B Features
- Mechanical variable speed allows for full range of speeds with no belt changes
- 6” of quill travel with one revolution of the handle
- Fence system adjustable for a perfect 90 degree relationship to the table and for rapid alignment of stock
- Adjustable material stop makes repetitive actions accurate and quick
- A digital RPM readout allows user to optimize the spindle speed to the application
- Laser guides provide an accurate indication for tool point
- Keyless chuck makes bit changes easier
- Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
- Two independently adjustable LED worklights eliminates shadows
- Work table can be rotated to a full 90 degree position
Powermatic 1792800B Specifications
| Chuck Distance to Base (In.) | 43-13/32 |
| Prewired Voltage (V.) | 115 |
| Spindle Distance to Base | 46-1/4 |
| Table Size (L x W) (In.) | 20 x 14 |
| Spindle Taper | MT-2/JT-3 |
| Fence Size (L x H) (In.) | 19-13/16 x 2-11/16 |
| Motor Voltage (V.) | 115/230 |
| Base Size (In.) | 13-3/8 x 20 |
| Motor Current (Amps) | 15/7.5 |
| Motor Phase | 1 |
| Spindle Travel (In.) | 6 |
| Column Diameter (In.) | 3-1/8 |
| Motor Power (HP) | 1 |
| Spindle Distance to Table (Max.) (In.) | 27-3/8 |
| Table Tilt (Deg.) | 0 to 90 |
| Number of Spindle Speeds | Variable |
| Chuck Size (In.) | 5/8 |
| Swing (In.) | 18 |
| Chuck Distance to Table (In.) | 24-1/2 |
