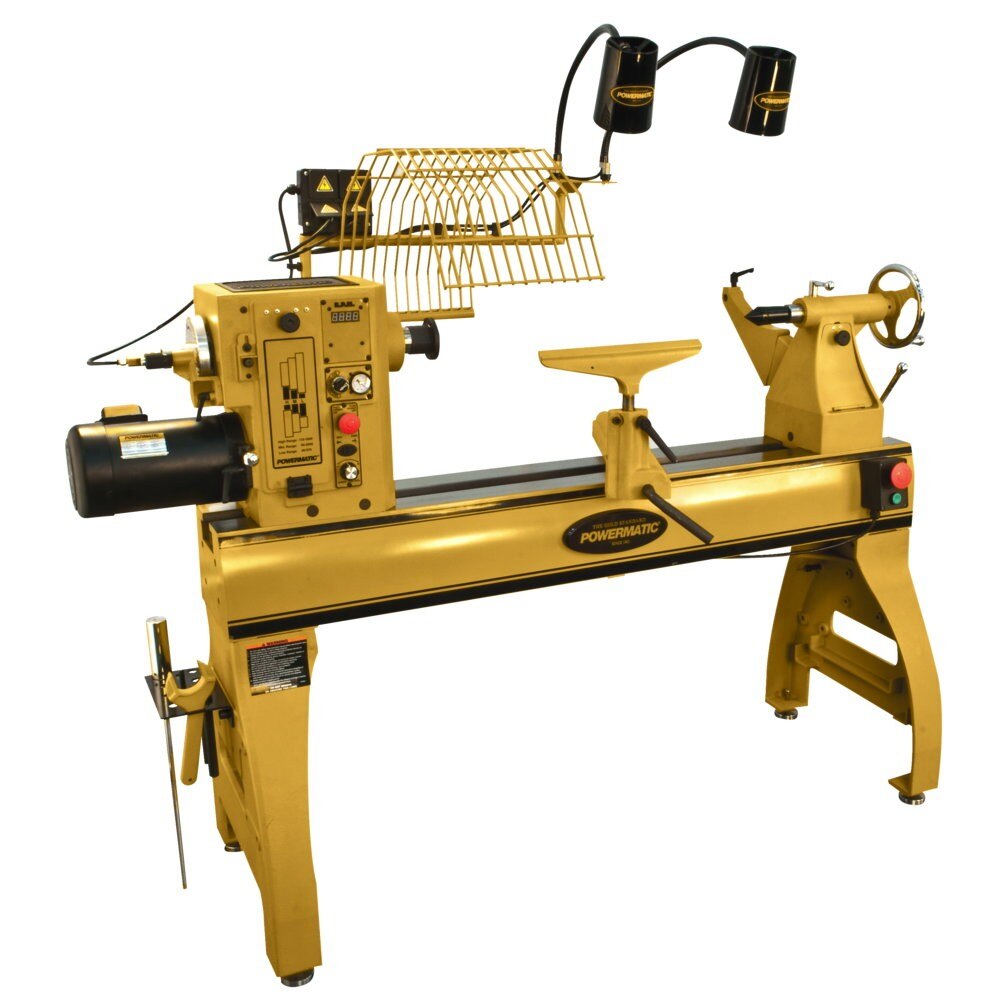

Powermatic PM9-1794224K 4224B Lathe with Lamp Kit, 3HP, 1 or 3PH, 220V
Free Shipping
$8,899.99
$10,934.27
Unit price
/
Unavailable
Description
Description
Powermatic 1794224K Description
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
Powermatic 1794224K Features
- Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
- Vacuum system provides quick method of chucking bowl blanks
- 15-amp quad receptacle for easy reach of powered accessories
- Two 100W task lamps provide ideal lighting
- Air nozzle with quick connect for clearing dust/chips
- Set of dead centers which hold a spindle for visual comparison
- Laser etched quill is self ejecting.
- Two position mount for the optional bed extension
- Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
Powermatic 1794224K Specifications
| Motor Phase | 3 |
| Speed Range | 40-3500 |
| Spindle Threads (In. x TPI) | 1-1/4" x 8 TPI |
| Centerline of Spindle to Floor (In.) | 44 |
| Spindle Bore | 5/8 |
| Headstock Movement | Full Length of Bed |
| Wiring Remarks | VFD will accept 1 or 3 phase power |
| Prewired Voltage (V.) | 230 only |
| Spindle Taper | MT-2 |
| Number of Indexing Positions | 98 |
| Swing Over Tool Rest Base (In.) | 21 |
| Motor Power (HP) | 3 |
| Outboard Turning | 88 |
| Distance Between Centers (In.) | 42 |
| Motor Current (Amps) | 10 |
| Spindle Speeds | High 135-3500/Med 80-2000/Low 40-970 |
| Ram Travel Quill Travel | 4-1/2 |
| Bed Construction | Cast Iron |
| Recommended Circuit Size (Amps.) | 30 |
| Quill Taper | MT-2 |
| Style (Type) | Leg Stand |
| Tailstock Bore | 3/8 |
| Outboard External Threads (In. x TPI) | M35 x 1.5 UNF |
| Swing Over Bed (In.) | 24 |
| Motor Voltage (V.) | 230 only |
| Bed Gap (In.) | 2-1/2 |
