Powermatic  |  SKU: PM9-1797022K  |  Barcode: 731325489248

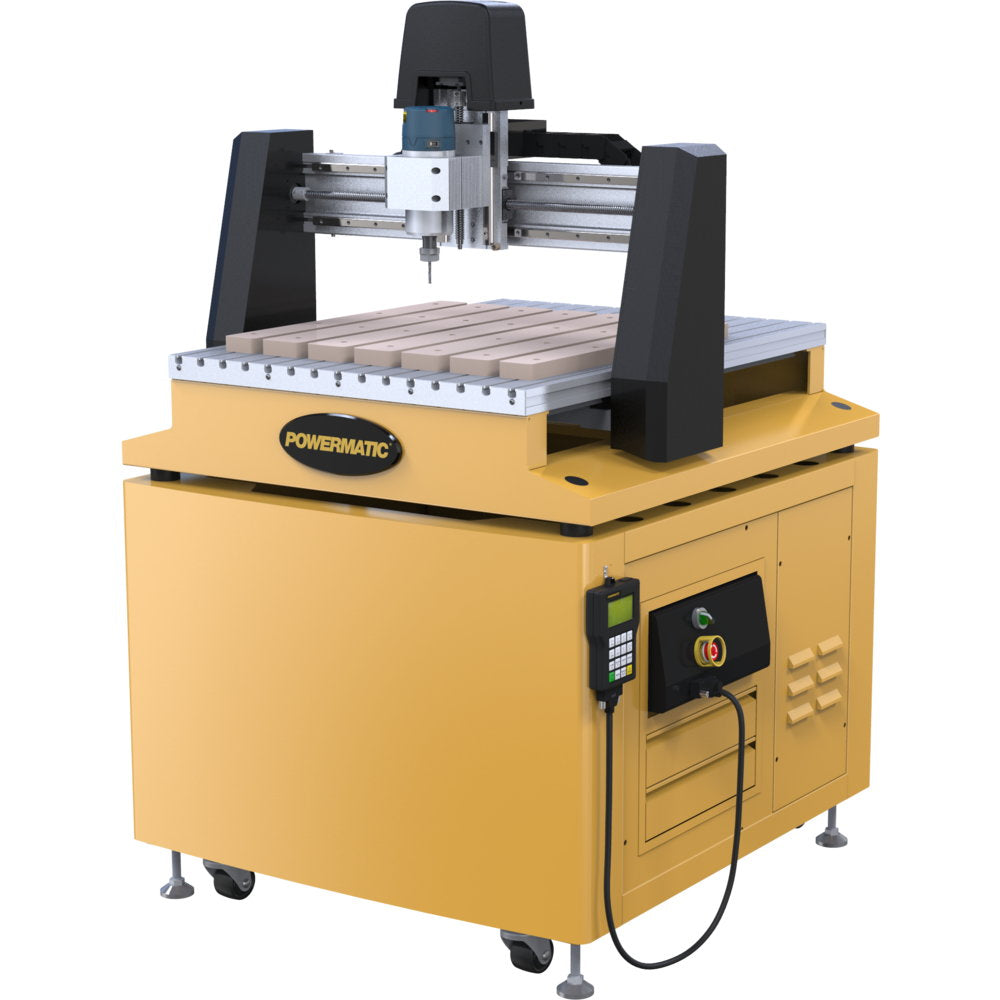

Powermatic PM9-1797022K PM-2X2RK 2'x2' CNC Kit with Router Mount

Free Shipping
$6,999.99 $8,599.99

Description

Powermatic 1797022K Features

  • Heavy-duty welded steel frame provides rigidity and maintains accuracy
  • The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
  • An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program
  • Exclusive, heavy-duty gantry supports are made of gravity cast aluminum
  • Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement
  • Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
  • The handheld controller attaches to the DSP control box via a 8 foot cable that makes it easy to oversee any project from a variety of positions
  • Flexible nylon track chains protect all cables preventing rubbing and stress
  • High-torque stepper motors control each axis, providing fast, quiet and precise movement
  • The included puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller

Powermatic 1797022K Specifications

Style (Type) Router
X-Axis Travel (In.) 24
Z-Axis Travel (In.) 6
Y-Axis Travel (In.) 24
Precision Ball Screw Axis X/Y/Z
Precision Linear Guide Axis X/Y/Z
Router Not included
Rapid Feed Rate (IPM) 200
Collet n/a
Spindle Speed (RPM) n/a
Touch Off Puck Included
Motor Phase 1
Motor Power (HP) n/a
Motor Voltage (V.) 115V only
Prewired Voltage (V.) 115
Recommended Circuit Size (Amps.) 15
Floor Space Required (In.) 52x45
Weight (Lbs.) 598
Dust Collection Minimum CFM Required (CFM) 300
