Powers Fasteners | SKU:
06336

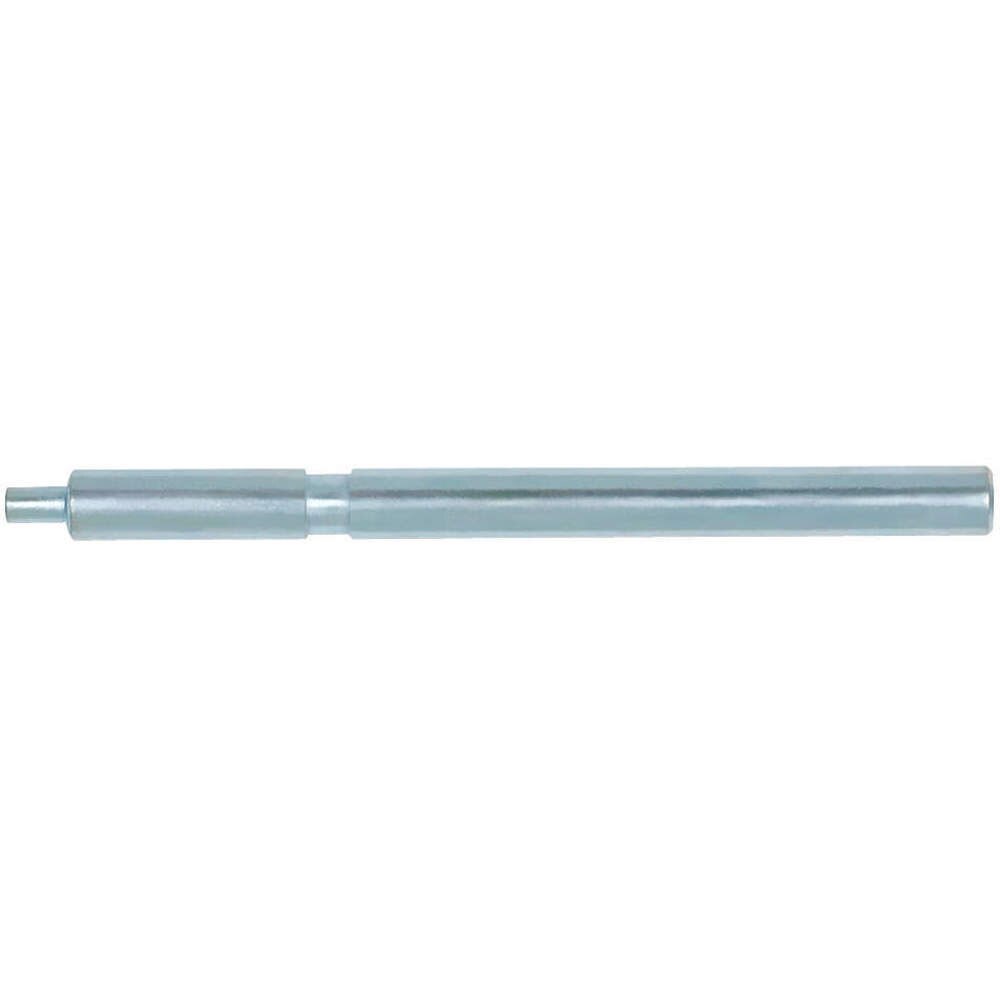

Powers 06336-PWR 1/4" Internal Dia. Mini Drop-In Anchor Setting Tool
$6.94
$7.63
Unit price
/
Unavailable
Description
Description
Powers Fasteners 06336-PWR Description
The Mini Dropin is a carbon steel machine bolt anchor for use in shallow embedment applications. In addition to solid concrete and precast hollow core plank, it can be used in post-tensioned concrete slabs and concrete pours over steel deck. The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, hard stone, and solid block base materials. A coil thread version for forming applications is also available.
Powers Fasteners 06336-PWR Includes
- (1) 1/4" Internal Dia. Mini Drop-In Anchor Setting Tool
Powers Fasteners 06336-PWR Features
- Internally threaded anchor for easy bolt removability and service work
- Flanged (lipped) version installs flush for easy inspection and standard embedment
- Smooth wall dropin can be installed flush mounted or below the base material surface
- Optionally available with a knurled body
- Coil thread version accepts coil rod and typically used for concrete formwork applications
- Tested in accordance with ASTM E 488 and AC01 criteria
- Factory Mutual Research Corporation (FM Approvals) – File No. 3059197. See listing for applicable sizes - www.fmglobal.com
- Internally threaded anchor for easy bolt removability and service work
- Ideal for precast hollow core plank and post-tensioned concrete slabs
- Lip provides flush installation and consistent embedment
- Manual setting tool scores flange when set to verify proper expansion depth
Powers Fasteners 06336-PWR Specifications
| Application | Suspending conduit, Cable Trays and Strut |
| Uses | Fire Sprinkler, Utilities, Pipe Supports and Suspended Lighting |
| Thread Version | UNC Thread |
| Anchor Material | Zinc Plated Carbon Steel |
| ROD/Anchor Size Range | 1/4" diameter through 1/2" diameter |
| Suitable Base Materials | Normal-Weight Concrete, Lightweight Concrete, Precast Hollow Core Plank and Concrete Over Steel Deck |
| Weight | 0.28 lbs |
| Anchor Internal Thread Dia. | 1/4" |
| Material | Steel, Zinc Plated |
| General Applications and Uses | Suspending conduit, Cable trays and struts, Pipe supports, Fire sprinklers, Concrete formwork, Suspended lighting |
