Powers Fasteners | SKU:
06320
Powers Fasteners 06320-PWR 5/8" Powers Dropin Carbon Steel Zinc Plated, 25/Package
$25.38
$45.52
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Powers Fasteners 06320-PWR Description

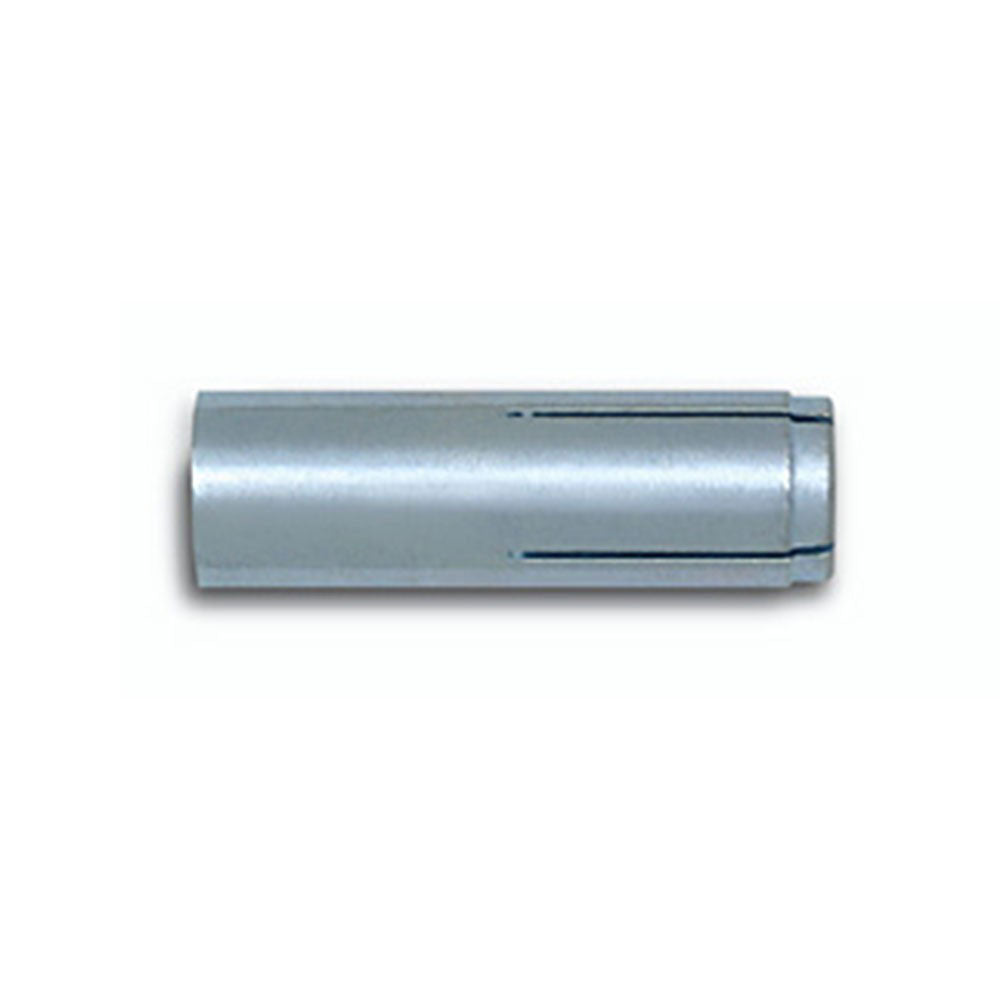

The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, hard stone, and solid block base materials. A coil thread version for forming applications is also available.
Powers Fasteners 06320-PWR Includes
- (25) 5/8" Powers Dropin Carbon Steel Zinc Plated
Powers Fasteners 06320-PWR Features
- Easy removability
- Flange (lipped) verison installs flush for easy inspection and standardizes rod heights
- Smooth wall design drop-in can be installed flush mounted or below the base material surface
- Qualified in seismic and wind loads
- Tested in accordance with ASTM 488 and AC01 criteria
- Underwriters Laboratory (UL Listed) – File No. EX1289 (N)
- FM Approvals (Factory Mutual) – File No. 3059197
- Internally threaded anchor for easy bolt removability and service work
- Flanged (lipped) version installs flush for easy inspection and standard embedment
- Smooth wall dropin can be installed flush mounted or below the base material surface
- Optionally available with a knurled body
- Coil thread version accepts coil rod and typically used for concrete formwork applications
Powers Fasteners 06320-PWR Specifications
| Product Type | Internally Threaded Drop-In Expansion Anchor |
| Material | Carbon Steel |
| Diameter | 5/8" |
| Finish | Zinc Plated |
| Weight | 8 lbs |
