Powers Fasteners  |  SKU: 7439SD1  |  Barcode: 075352776293

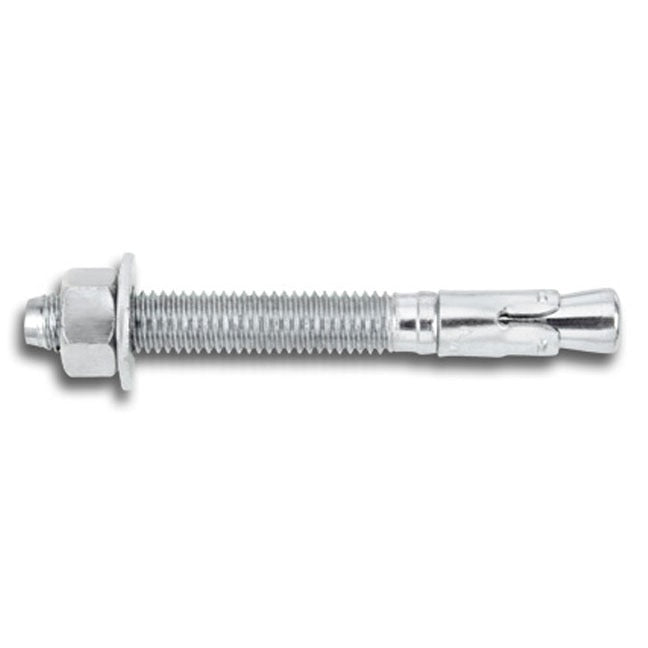

Powers Fasteners 7439SD1-PWR 5/8 X 10 Wedge Anchor

$76.08 $128.94

NOTE: This item is ineligible for free shipping

Description

Powers Fasteners 7439SD1-PWR Description

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.

Powers Fasteners 7439SD1-PWR Includes

  • (25) Wedge Expansion Anchors
  • (1) Nut and Washer

Powers Fasteners 7439SD1-PWR Features

  • International Code Council, Evaluation Service (ICC-ES), ESR-2818 for cracked and uncracked concrete
  • International Code Council, Evaluation Service (ICC-ES), ESR-2966 for masonry
  • Code compliant with the 2015 IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, and 2009 IRC
  • Tested in accordance with ACI 355.2/ASTM E 488 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318-14 Chapter 17 or ACI 318-11/08 Appendix D
  • Evaluated and qualifi ed by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (Category 1 anchors)
  • Tested in accordance with ICC-ES AC01 for use in Masonry
  • Underwriters Laboratories (UL Listed) - File No. EX1289, see listing for sizes
  • Consistent performance in high and low strength concrete
  • Anchor can be installed through standard fixture holes
  • Anchor design allows for follow-up expansion after setting under tensile loading

Powers Fasteners 7439SD1-PWR Specifications

Material Carbon Steel
Diameter 5/8"
Length 10"
Finish Zinc Plated
