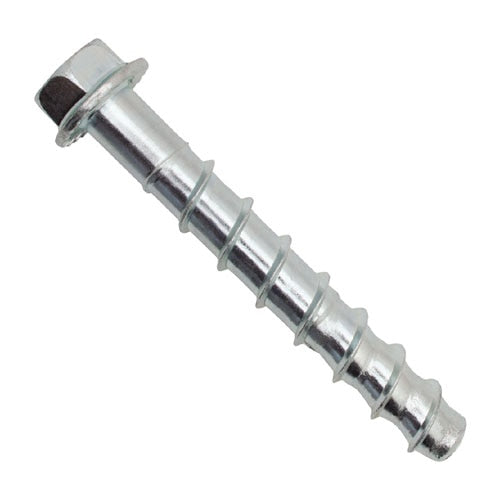

Powers Fasteners PFM1411240 Concrete Anchor Screw, 3/8" x 3", 50/Box
$37.58
$50.51
Unit price
/
Unavailable
Loading delivery estimate...
NOTE: This item is ineligible for free shipping
Description
Description
Powers Fasteners PFM1411240 Description
High-strength heavy-duty one-piece Screw Anchors are for use in both cracked and uncracked concrete. They can be easily installed with standard-size drill bits, and are removable, for temporary anchoring. Vibration- and shock-resistant. For use in fastening conveyors, pallet racking, racking guards, motors, bracing, piping, ladders, fencing, beams, angles, or dimensional lumber to concrete or masonry.
Powers Fasteners PFM1411240 Includes
- (50) Concrete Anchor Screw, 3/8" x 3"
Powers Fasteners PFM1411240 Features
- Designed for standard ANSI tolerance drill bits
- Patented thread design offers low installation torque
- Tough threads for tapping high strength concrete
- Ratchet teeth on underside of hex washer head lock against the fixture
- Can be installed closer to the edge than traditional expansion anchors
- Fully removeable and reinstallable in same hole
- Fast installation with powered impact wrench
- Diameter, length and identifying marking stamped on head of each anchor
- One-piece, finished head design
Powers Fasteners PFM1411240 Specifications
| Anchor Screw Type | Screw Anchor |
| Anchor Screw Head Style | Hex Washer |
| Anchor Material | Steel |
| Material Grade | Not Graded |
| Fastener Finish | Zinc Plated |
| Anchor Dia. | 3/8" |
| Anchor Length | 3" |
| Seismic Approved | Yes |
| ICC Approved for Cracked Concrete | Yes |
| ICC Approved for Un-Cracked Concrete | Yes |
| Min. Embedment | 1-1/2" |
| Edge Distance | 1-1/2" |
| Drill Bit Size | 3/8" |
| Max. Work Thickness | 1-1/2" |
| Ultimate Shear | 4735 lbs |
| Ultimate Tension | 4020 lbs |
| Application | Racking, Shelving, Material Handling, Fencing, Glazing, Curtain Wall |
