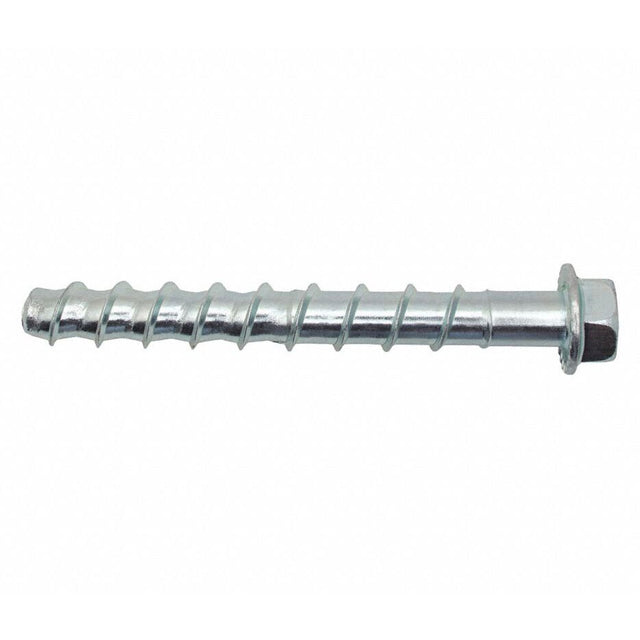

Powers Fasteners PFM1411340 Concrete Anchor Screw, 1/2" x 2", 50/Package
$80.18
$108.94
Unit price
/
Unavailable
Description
Description
Powers Fasteners PFM1411340 Description
High-strength heavy-duty one-piece Screw Anchors are for use in both cracked and uncracked concrete. They can be easily installed with standard-size drill bits, and are removable, for temporary anchoring. Vibration- and shock-resistant. For use in fastening conveyors, pallet racking, racking guards, motors, bracing, piping, ladders, fencing, beams, angles, or dimensional lumber to concrete or masonry.
Powers Fasteners PFM1411340 Includes
- (50) Concrete Anchor Screws, 1/2" x 2"
Powers Fasteners PFM1411340 Features
- International Code Council, Evaluation Service (ICC-ES), ESR-3889 for concrete. Code compliant with 2015 IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, and 2009 IRC.
- Tested in accordance with ACI 355.2 and ICC-ES AC193 for use in structural applications in concrete under the design provisions of ACI 318 (Strength Design Method).
- Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (Category 1 anchors).
- Evaluated and qualified by an accredited independent testing laboratory for reliability against brittle failure, e.g. hydrogen embrittlement.
- Designed for standard ANSI tolerance drill bits
- Patented thread design offers low installation torque
- Tough threads for tapping high strength concrete
- Ratchet teeth on underside of hex washer head lock against the fixture
- Can be installed closer to the edge than traditional expansion anchors
- Fully removeable and reinstallable in same hole
- Fast installation with powered impact wrench
- Diameter, length and identifying marking stamped on head of each anchor
- One-piece, finished head design
Powers Fasteners PFM1411340 Specifications
| Anchor Screw Type | Screw Anchor |
| Anchor Screw Head Style | Hex Washer |
| Anchor Material | Carbon Steel |
| Material Grade | Not Graded |
| Fastener Finish | Zinc Plated |
| Anchor Dia. | 1/2" |
| Anchor Length | 2" |
| Seismic Approved | Yes |
| ICC Approved for Cracked Concrete | Yes |
| ICC Approved for Un-Cracked Concrete | Yes |
| Min. Embedment | 1-3/4" |
| Edge Distance | 1-3/4" |
| Drill Bit Size | 1/2" |
| Max. Work Thickness | 1/4" |
| Ultimate Shear | 6555 lbs |
| Ultimate Tension | 3115 lbs |
| Application | Racking, Shelving, Material Handling, Fencing, Glazing, Curtain Wall |
| Package Quantity | 50 Pieces |
| Package Weight | 8.4 lbs |
