Powers Fasteners | SKU:
PFM1411420

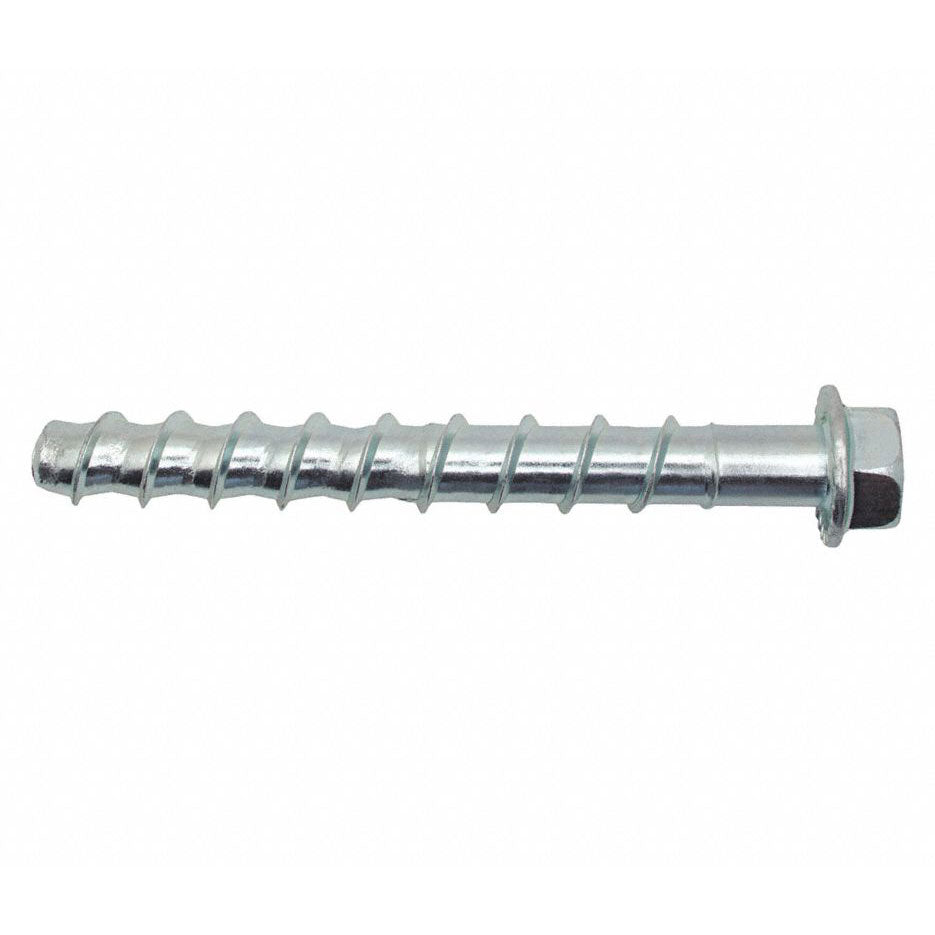

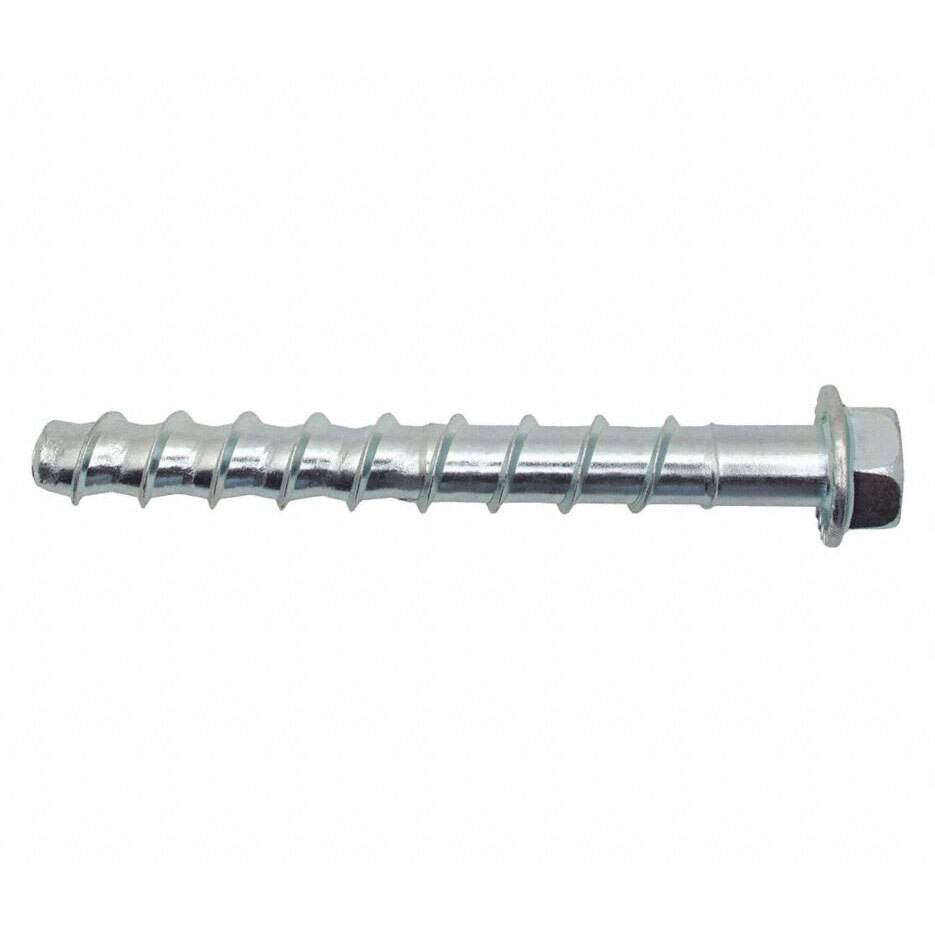

Powers Fasteners PFM1411420 Hex Washer Screw Anchor, 1/2" Dia. x 4", 50/Box
$95.13
$140.67
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Powers Fasteners PFM1411420 Description
High-strength heavy-duty one-piece Screw Anchors are for use in both cracked and uncracked concrete. They can be easily installed with standard-size drill bits, and are removable, for temporary anchoring. Vibration- and shock-resistant. For use in fastening conveyors, pallet racking, racking guards, motors, bracing, piping, ladders, fencing, beams, angles, or dimensional lumber to concrete or masonry.
Powers Fasteners PFM1411420 Includes
- (50) Hex Washer Screw Anchor, 1/2" Dia. x 4"
Powers Fasteners PFM1411420 Features
- Hex drive types have six uniform sides that allow fast rotation and easy adjustment. They are driven by wrenches or sockets and are ideal for limited-clearance applications.
- Carbon steel is a soft, durable metal. It is commonly used on abrasive materials, concrete, nonferrous metals, plastics and wood.
- Designed for standard ANSI tolerance drill bits
- Patented thread design offers low installation torque
- Tough threads for tapping high strength concrete
- Ratchet teeth on underside of hex washer head lock against the fixture
- Can be installed closer to the edge than traditional expansion anchors
- Fully removeable and reinstallable in same hole
- Fast installation with powered impact wrench
- Diameter, length and identifying marking stamped on head of each anchor
- One-piece, finished head design
Powers Fasteners PFM1411420 Specifications
| Anchor Screw Type | Screw Anchor |
| Anchor Screw Head Style | Hex Washer |
| Anchor Material | Steel |
| Material Grade | Not Graded |
| Fastener Finish | Zinc Plated |
| Anchor Dia. | 1/2" |
| Anchor Length | 4" |
| Seismic Approved | Yes |
| ICC Approved for Cracked Concrete | Yes |
| ICC Approved for Un-Cracked Concrete | Yes |
| Min. Embedment | 1-3/4" |
| Edge Distance | 1-3/4" |
| Drill Bit Size | 1/2" |
| Max. Work Thickness | 2-1/4" |
| Ultimate Shear | 8800 lbs |
| Ultimate Tension | 7320 lbs |
| Application | Racking, Shelving, Material Handling, Fencing, Glazing, Curtain Wall |
