Powers Fasteners | SKU:
PFM1411480

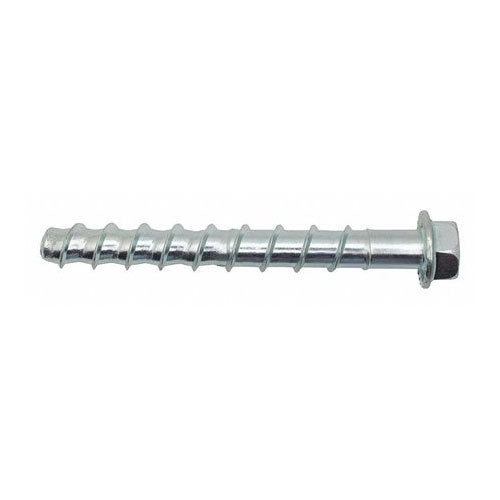

Powers Fasteners PFM1411480 Concrete Anchor Screw, 6" L, 25 Pack
$66.84
$98.84
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Powers Fasteners PFM1411480 Description
High-strength heavy-duty one-piece Screw Anchors are for use in both cracked and uncracked concrete. They can be easily installed with standard-size drill bits, and are removable, for temporary anchoring. Vibration- and shock-resistant. For use in fastening conveyors, pallet racking, racking guards, motors, bracing, piping, ladders, fencing, beams, angles, or dimensional lumber to concrete or masonry.
Powers Fasteners PFM1411480 Includes
- (25) Concrete Anchor Screw, 6" L
Powers Fasteners PFM1411480 Features
- Screw anchors are designed with steel threads along the anchor body tap into the hole during installation. They are heavy-duty anchors that reduce installation torque in concrete and masonry materials.
- Case hardened carbon steel is less brittle than carbon steel and will not fracture under high stress.
Powers Fasteners PFM1411480 Specifications
| Anchor Screw Type | Screw Anchor |
| Anchor Screw Head Style | Hex Washer |
| Anchor Material | Steel |
| Material Grade | Not Graded |
| Fastener Finish | Zinc Plated |
| Anchor Dia. | 1/2" |
| Anchor Length | 6" |
| Seismic Approved | Yes |
| ICC Approved for Cracked Concrete | Yes |
| ICC Approved for Un-Cracked Concrete | Yes |
| Min. Embedment | 1-3/4" |
| Edge Distance | 1-3/4" |
| Drill Bit Size | 1/2" |
| Max. Work Thickness | 4-1/4" |
| Ultimate Shear | 10,290 lbs |
| Ultimate Tension | 17,235 lbs |
| Application | Racking, Shelving, Material Handling, Fencing, Glazing, Curtain Wall |
