Powers Fasteners PFM2111820 Non-Flange Threaded Drop-In Anchor, 3/4"L x 3/8", 100PK
NOTE: This item is ineligible for free shipping
Description
Description
Powers Fasteners PFM2111820 Description

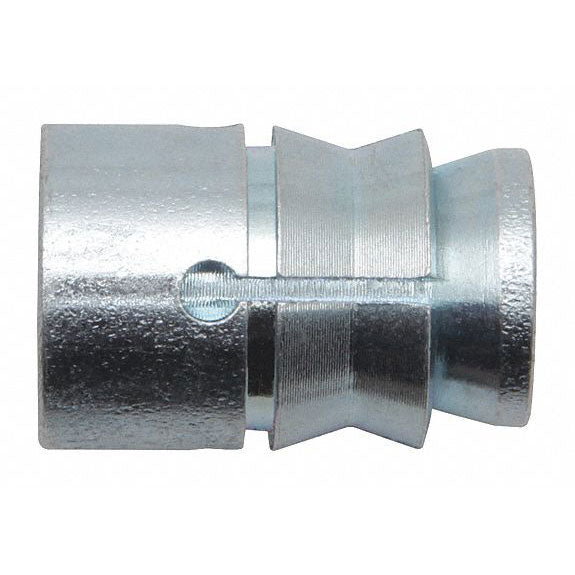

The Mini-Undercut+ anchor is an internally threaded, self-undercutting anchor designed for performance in cracked and uncracked concrete. Suitable base materials include post-tension concrete (PT slabs), hollow-core precast concrete, normal-weight concrete, sand-lightweight concrete and concrete over steel deck. The Mini-Undercut+ anchor is installed into a pre-drilled hole with a power tool and a setting tool. The result is an anchor which can provide consistent behavior at shallow embedments as low as 3/4 of an inch. After installation a steel element is threaded into the anchor body.
Powers Fasteners PFM2111820 Includes
- (100) Non-Flange Threaded Drop-In Anchor, 3/4"L x 3/8"
Powers Fasteners PFM2111820 Features
- Anchor design allows shallow embedment as low as 3/4?
- Redesigned ANSI carbide stop bit with enlarged shoulder for accurate depth
- Internally threaded anchor makes adjustment and removal of threaded rod or bolt easy
- Fast installation – Drill and drive the anchor with just one tool
- Self-Undercut Anchor
- Internally Threaded
Powers Fasteners PFM2111820 Specifications
| Rod/Bolt Thread Diameter | 3/8? |
| Length | 3/4? |
| Drill Diameter | 5/8? |
| Material | Steel |
| Material Grade | 1035 |
| Finish/Coating | Zinc-Plated |
| Head Type | Flat |
| Drive Type | Setting Tool |
| Fastener Standard | ASTM E488; ACI 355.2 |
| Bolt Size | 3/8" |
