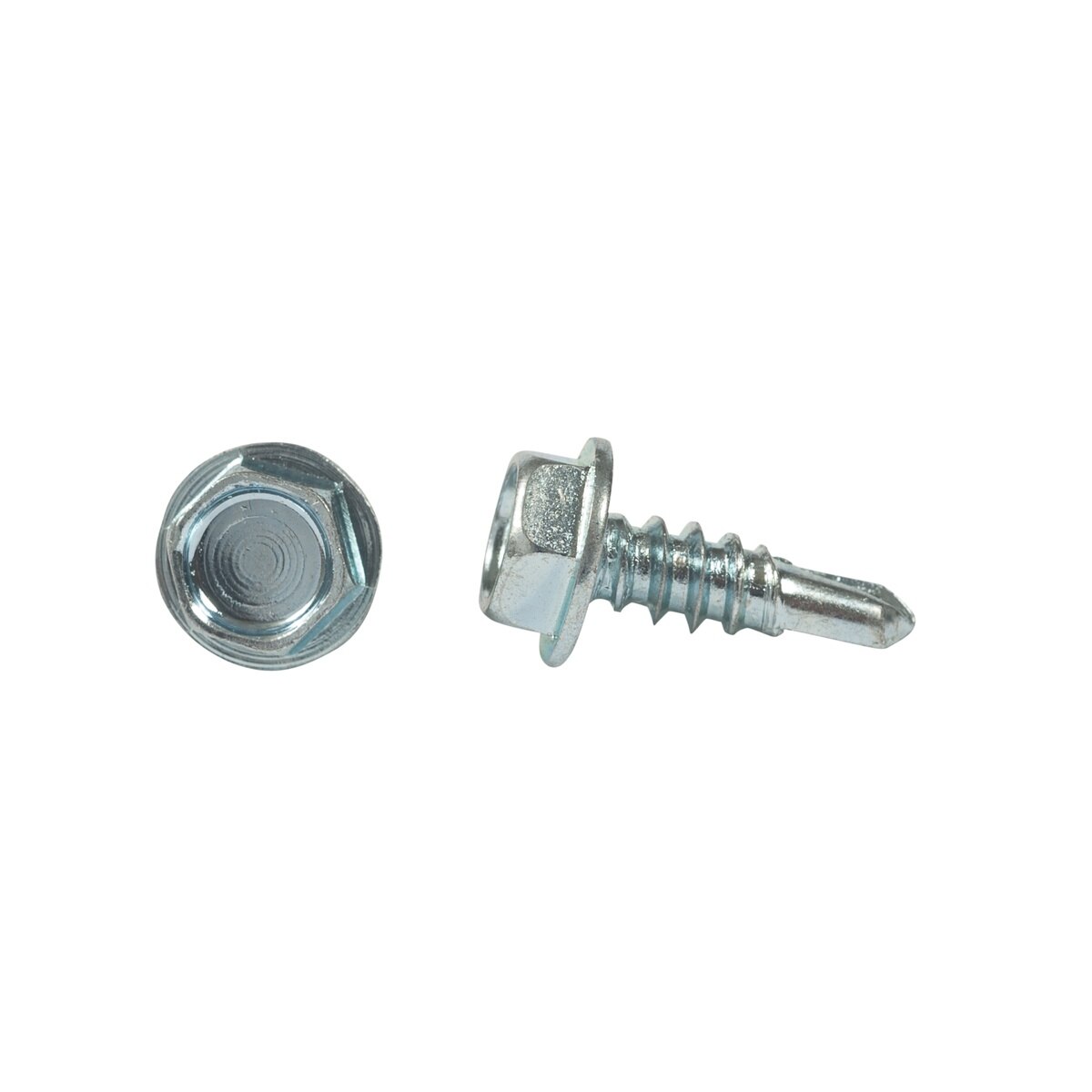

Primesource HWD1058 Description

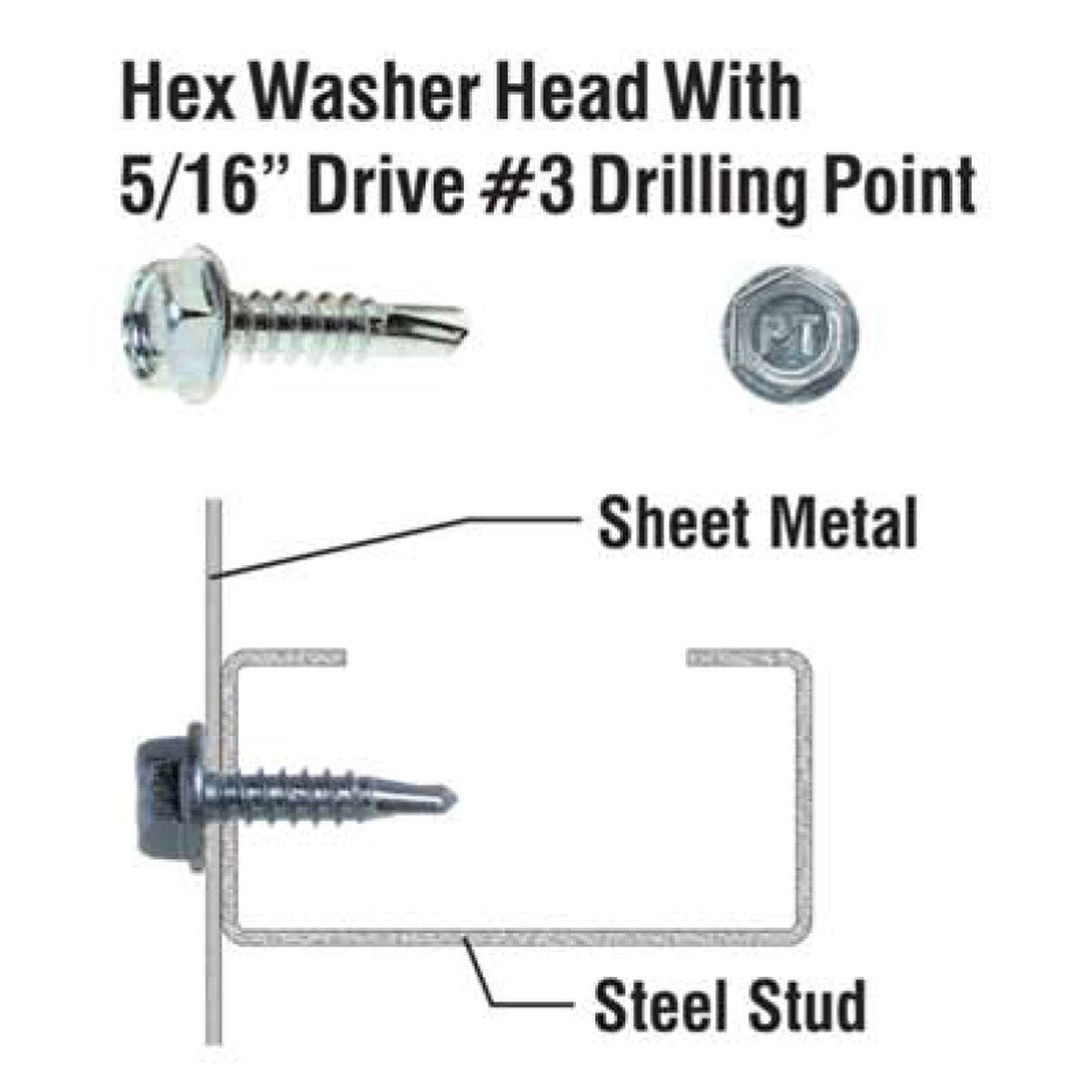

These #10 x 5/8 in. hex washer head self-drilling screws are designed for fastening sheet metal to steel studs with a #3 TEK drilling point. The zinc plated steel construction provides corrosion resistance for HVAC and sheet metal applications.
Primesource HWD1058 Includes
- (7000) #10 x 5/8 in. Hex Washer Head Self-Drilling Zinc Plated Screws (#3 Point, 5/16 in. Hex Drive)
Primesource HWD1058 Features
- #3 self-drilling TEK point for drilling and fastening in one step
- Hex washer head helps provide a secure bearing surface
- 5/16 in. hex drive for quick installation
- Zinc plated finish helps resist corrosion
- Steel construction
- Self-tapping thread design
- 16 TPI thread
- Designed for sheet metal fastening and HVAC fabrication work
- Cold formed manufacturing process
- Drill capacity: 0.11 to 0.175 in.
- Meets ASTM C-954/C-1513 material specification
Primesource HWD1058 Specifications
| Screw Type | Self-Drilling Screw |
| Nominal Diameter | #10 |
| Length | 5/8 in. |
| Head Style | Hex Washer Head |
| Drive Type | Hex |
| Drive Size | 5/16 in. |
| Point Type | Self-Drilling (TEK) |
| Drill Point Size | #3 |
| Thread Type | Self-Tapping |
| Thread Pitch | 16 TPI |
| Material | Steel |
| Material Specification | ASTM C-954/C-1513 |
| Finish | Zinc Plated |
| Process | Cold Formed |
| Head Diameter | 9.76 to 10.5 mm |
| Drill Capacity | 0.11 to 0.175 in. |
| Load Rating (Tension) | 1216 lb |
| Load Rating (Shear) | 1650 lb |
| Torque Strength | 61 lb |
| Application | Sheet metal, HVAC contractor and fabricator |
| Package Quantity | 7000 |
