Primesource | SKU:
MTD8341LB

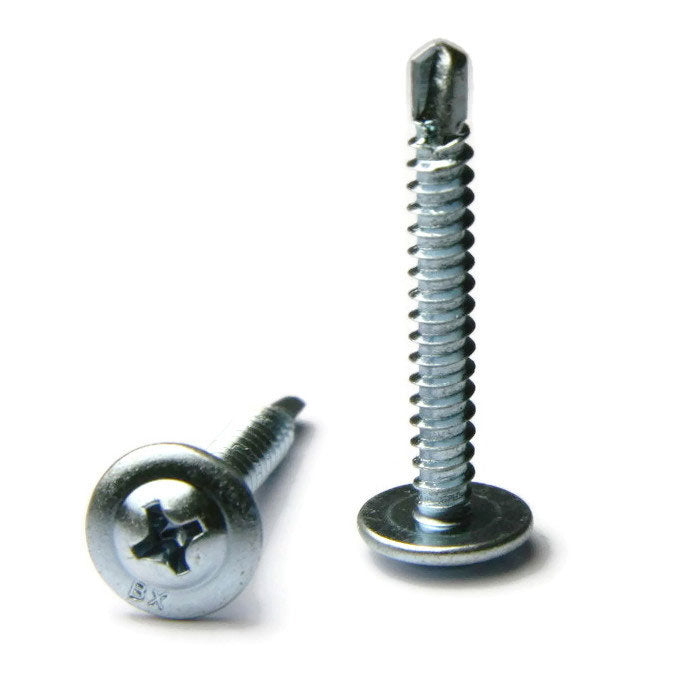

Primesource MTD8341LB 8x 3/4" Zinc Plated Modified Truss Head Self-Drill Screw 1Lb
$11.60
$19.08
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
INCLUDES:
• (221) Screws (1 Lb)
FEATURES:
• The "old standard" head design for the attachment of metal lath and steel framing
• Used for attaching a variety of materials to steel
• Engineered for professional-grade use and specifically designed to drill faster and more consistently than standard grade fasteners
• All self-drilling screws meet or exceed ASTM C-954 and ASTM C-1513 requirements for corrosion resistance and performance
• All zinc-plated screws conform to ASTM F-1941 for corrosion resistance, as tested in accordance with ASTM B-117
• Adheres to the code listing ICC-ES Evaluation Report ESR-1408
SPECIFICATIONS:
• Diameter: 8
• Length: 3/4
• TPI: 18
• Finish: Zinc
• Corrosion: 24 hr. min. B-117
• Head Diameter: 10.8-11.4mm
• Thread: Full
• Drill Capacity: 033"-.100"
• Torsional Strength: 42

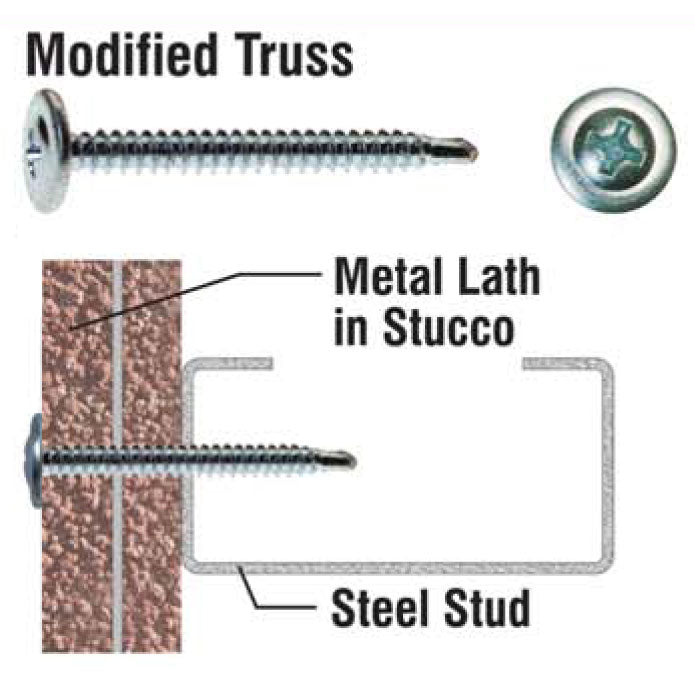

MODIFIED TRUSS, DRILL POINT For attaching metal lath to 20 to 16-gauge steel studs in stucco and other applications. #8 is a #2 Drill Point, and #10 is a #3 Drill Point. Zinc Plated. 1 Lb
• (221) Screws (1 Lb)
FEATURES:
• The "old standard" head design for the attachment of metal lath and steel framing
• Used for attaching a variety of materials to steel
• Engineered for professional-grade use and specifically designed to drill faster and more consistently than standard grade fasteners
• All self-drilling screws meet or exceed ASTM C-954 and ASTM C-1513 requirements for corrosion resistance and performance
• All zinc-plated screws conform to ASTM F-1941 for corrosion resistance, as tested in accordance with ASTM B-117
• Adheres to the code listing ICC-ES Evaluation Report ESR-1408
SPECIFICATIONS:
• Diameter: 8
• Length: 3/4
• TPI: 18
• Finish: Zinc
• Corrosion: 24 hr. min. B-117
• Head Diameter: 10.8-11.4mm
• Thread: Full
• Drill Capacity: 033"-.100"
• Torsional Strength: 42
MODIFIED TRUSS, DRILL POINT For attaching metal lath to 20 to 16-gauge steel studs in stucco and other applications. #8 is a #2 Drill Point, and #10 is a #3 Drill Point. Zinc Plated. 1 Lb
