Primesource | SKU:
PFD7161LB

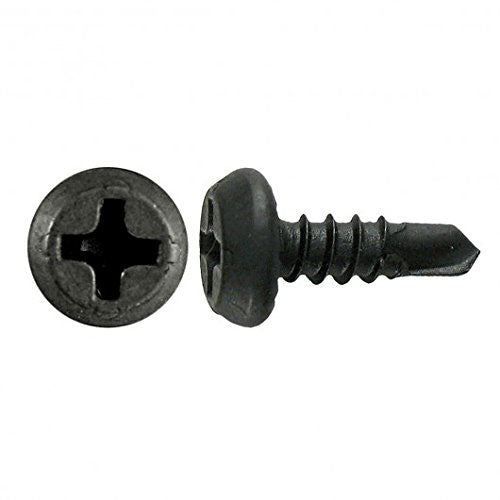

Primesource PFD7161LB 7 x7/16" Black Phosphate Pan Framing Self-Drilling Screw 1Lb
$5.57
$7.80
Unit price
/
Unavailable
Description
Description
Primesource PFD7161LB Description

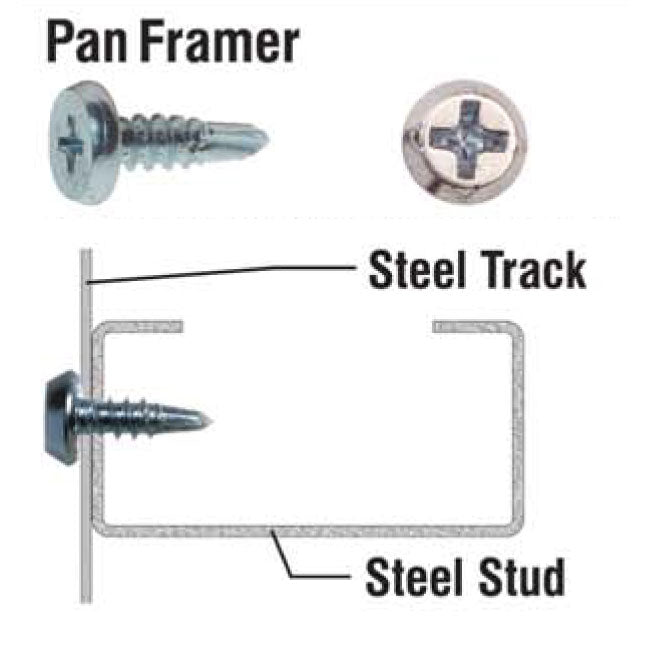

PAN FRAMING HEAD SELF-DRILL SCREW #2 DRILL POINT For attaching 20 to16 gauge steel track to 20 to 16 gauge steel studs. With serrations to reduce spin out. #2 Reduced Phillips Recess. Black Phosphate
Primesource PFD7161LB Includes
- (395) Screws (1 Lb)
Primesource PFD7161LB Features
- Non-load bearing steel framing applications, electrical boxes and plumbing clips to steel.
- Used for attaching a variety of materials to steel
- Engineered for professional-grade use and specifically designed to drill faster and more consistently than standard grade fasteners
- Black Phosphate
- All self-drilling screws meet or exceed ASTM C-954 and ASTM C-1513 requirements for corrosion resistance and performance
- All zinc-plated screws conform to ASTM F-1941 for corrosion resistance, as tested in accordance with ASTM B-117
- Adheres to the code listing ICC-ES Evaluation Report ESR-1408
Primesource PFD7161LB Specifications
| Diameter | 7 |
| Length | 7/16" |
| TPI | 18 |
| Finish | Black Phosphate |
| Head | Pan Framing |
| Head Dia. | 7.4-8.1 mm |
| Corrosion | 48 hr. min. B-117 |
| Drill Capacity | .033"-.100" |
| Point | Piercing 25° |
| Minimum Torsional Strength (Lb) | 56 |
