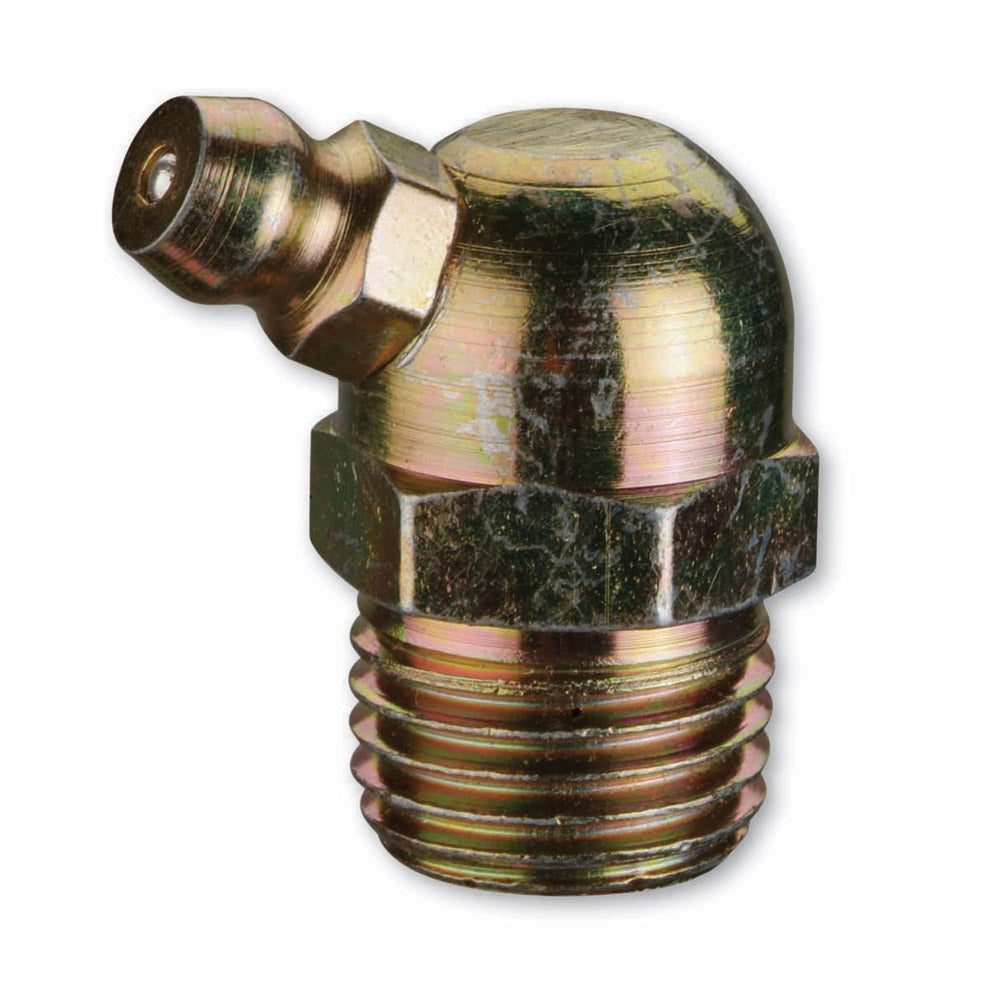

ProLube 46201 45 Degree Grease Fitting, M6 x 1
Description
Description
ProLube 46201 Description
Contained are a pack of 5 45° 6.0x1.0mm taper thread grease fittings. This premium quality grease fitting, made from EN-1A steel, has been manufactured with the most stringent quality standards, being approved by TS16949. The fitting profile and dimensions have been accurately controlled and conform to SAE, DIN, BS, JIS, and IS standards. Every grease fitting has been heat treated to SAE J534 specification with a hardness on the greasing end at a minimum of 83 on the Rockwell 15N scale (case depth of 0.0005" to 0.0009"). In addition, the springs used in the fittings have been heat treated for increased durability. All steel fittings have been plated 0.0002" (5 microns) thick, conforming to ASTM B117 specification and have a guaranteed salt spray life of over 75 hours to red rust. Every grease fitting is rated up to 6000 PSI. The dimensions (for guidance only) are as follows: 4.5mm min. effective thread length, 5.5mm shank length, 21.0mm overall length, and 9.0mm hex size.
ProLube 46201 Includes
- (5) Grease Fittings
ProLube 46201 Features
- Pack of 5 45° 6.0x1.0mm taper thread grease fittings
- Fittings made from EN-1A steel in accordance with TS16949 approved manufacturing
- Fitting profile and dimensions are accurately controlled and conform to SAE, DIN, BS, JIS, and IS standards
- Grease fittings are heat treated to SAE J534 spec with hardness on greasing end to a minimum of 83 on Rockwell 15N scale with a case depth of 0.005" (0.13mm) to 0.009" (0.23mm)
- Plated with a thickness of 0.0002" (5 microns), conforming to ASTM B117 spec
