Proto | SKU:
J07526L

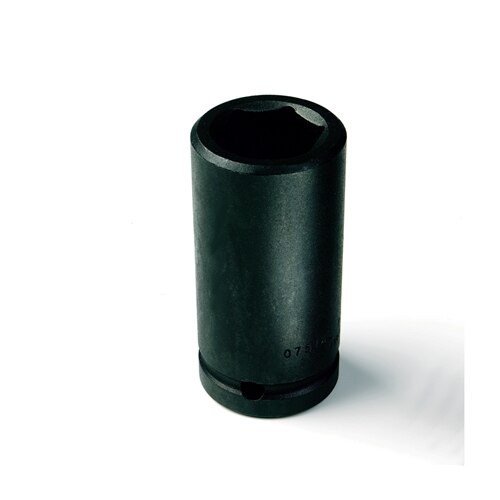

Proto J07526L 3/4" DRIVE DEEP IMPACT SOCKET 1-5/8" - 6 POINT
$50.08
$69.53
Unit price
/
Unavailable
Description
Description
Proto J07526L Includes
- (1) 3/4" DRIVE DEEP IMPACT SOCKET 1-5/8" - 6 POINT
Proto J07526L Features
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Stamped size for easy reference.
- Side locking hole.
Proto J07526L Specifications
| SIZE | 1-5/8'' |
| NUT END OUTSIDE DIAMETER | 2-3/8" |
| DRIVE END OUTSIDE DIAMETER | 1-3/4" |
| NUT DEPTH | 2-1/4" |
| BOLT CLEARANCE DEPTH | 2-5/8" |
| OVERALL LENGTH | 3-13/16" |
| WEIGHT | 2.57 lbs |
| CRUSH RETAINING RING | JRR07526 |
| O-RING | J07500R |
| RETAINING PIN | J07500P |
| DRIVE SIZE | 3/4" |
| POINT SIZE | 6 |
| FINISH | Black Oxide |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Fractional |
