Proto | SKU:
J07538

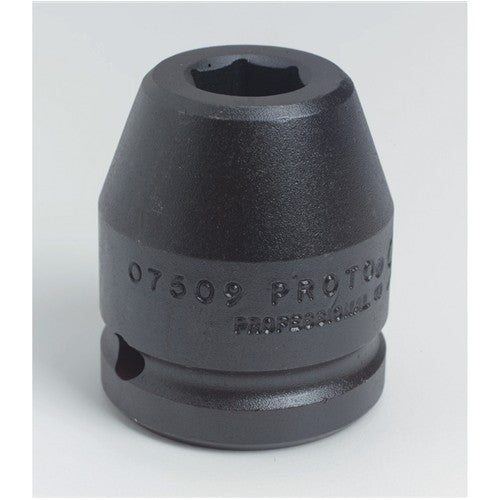

Proto J07538 3/4" DRIVE IMPACT SOCKET 2-3/8" - 6 POINT
$71.49
$115.10
Unit price
/
Unavailable
Description
Description
Proto J07538 Includes
- (1) 3/4" DRIVE IMPACT SOCKET 2-3/8" - 6 POINT
Proto J07538 Features
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Stamped size for easy reference.
- Side locking hole.
Proto J07538 Specifications
SIZE | 2-3/8" |
NUT END OUTSIDE DIAMETER | 3-1/2" |
DRIVE END OUTSIDE DIAMETER | 1-3/4" |
NUT DEPTH | 1-1/2" |
BOLT CLEARANCE DEPTH | 2-7/16" |
OVERALL LENGTH | 3-3/8" |
WEIGHT | 3.45 lbs |
CRUSH RETAINING RING | JRR07526 |
O-RING | J07500R |
RETAINING PIN | J07500P |
DRIVE SIZE | 3/4" |
POINT SIZE | 6 |
FINISH | Black Oxide |
LENGTH TYPE | Standard |
UNIT OF MEASURE | Fractional |
