Proto  |  SKU: J47055LTM  |  Barcode: 662679141875

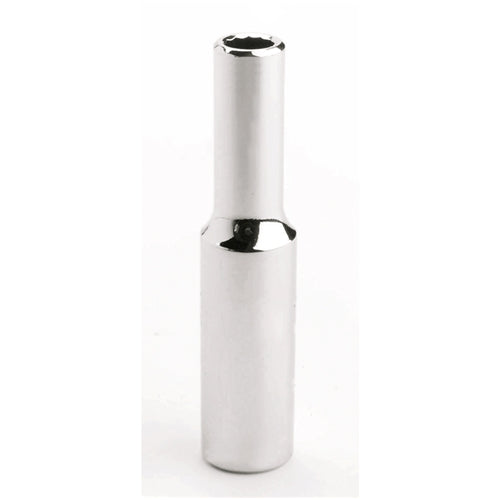

Proto J47055LTM 1/4" Drive Deep Socket 5.5 mm - 12 Point

$9.24 $14.68

Description

Proto J47055LTM Includes

  • (1) 1/4" DRIVE DEEP SOCKET 5.5 MM - 12 POINT

Proto J47055LTM Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J47055LTM Specifications

SIZE 5.5 mm
NUT END OUTSIDE DIAMETER 11/32"
DRIVE END OUTSIDE DIAMETER 29/64"
NUT DEPTH 9/32"
BOLT CLEARANCE DEPTH 49/64"
OVERALL LENGTH 1-63/64"
WEIGHT 0.05 lbs
DRIVE SIZE 1/4"
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASURE Metric
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS955

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Proto  J47055LTM 1/4" Drive Deep Socket 5.5 mm - 12 Point
Proto

Proto J47055LTM 1/4" Drive Deep Socket 5.5 mm - 12 Point

$9.24 $14.68

Proto J47055LTM Includes

  • (1) 1/4" DRIVE DEEP SOCKET 5.5 MM - 12 POINT

Proto J47055LTM Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J47055LTM Specifications

SIZE 5.5 mm
NUT END OUTSIDE DIAMETER 11/32"
DRIVE END OUTSIDE DIAMETER 29/64"
NUT DEPTH 9/32"
BOLT CLEARANCE DEPTH 49/64"
OVERALL LENGTH 1-63/64"
WEIGHT 0.05 lbs
DRIVE SIZE 1/4"
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASURE Metric
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS955
