Proto | SKU:
J4708L

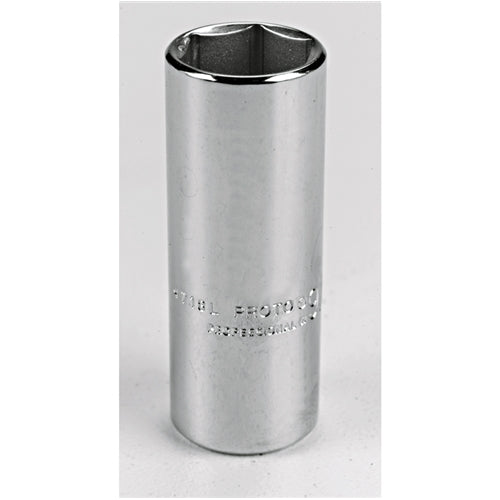

Proto J4708L 1/4" Drive Deep Socket 1/4" - 6 Point
$9.52
$12.95
Unit price
/
Unavailable
Description
Description
Proto J4708L Includes
- (1) 1/4" DRIVE DEEP SOCKET 1/4" - 6 POINT
Proto J4708L Features
- Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded or rusted fasteners.
Proto J4708L Specifications
SIZE | 1/4" |
NUT END OUTSIDE DIAMETER | 25/64" |
DRIVE END OUTSIDE DIAMETER | 15/32" |
NUT DEPTH | 3/8" |
BOLT CLEARANCE DEPTH | 1-1/2" |
OVERALL LENGTH | 2" |
WEIGHT | 0.05 lbs |
DRIVE SIZE | 1/4" |
POINT SIZE | 6 |
FINISH | Full Polish |
LENGTH TYPE | Deep |
UNIT OF MEASURE | Fractional |
SPECIFICATION ASME | ASME B107.110-2012 |
SPECIFICATION AS | SAE AS4984A |
