Proto | SKU:
J4714LM

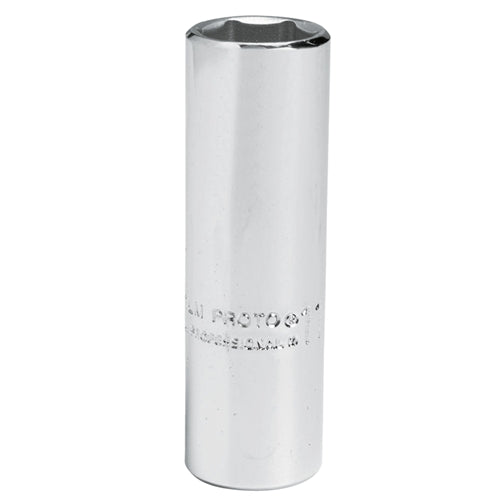

Proto J4714LM 1/4" Drive Deep Socket 14 mm - 6 Point
$9.02
$24.50
Unit price
/
Unavailable
Description
Description
Proto J4714LM Includes
- (1) 1/4" DRIVE DEEP SOCKET 14 MM - 6 POINT
Proto J4714LM Features
- Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J4714LM Specifications
SIZE | 14 mm |
NUT END OUTSIDE DIAMETER | 49/64" |
DRIVE END OUTSIDE DIAMETER | 49/64" |
NUT DEPTH | 5/8" |
BOLT CLEARANCE DEPTH | 1-27/64" |
OVERALL LENGTH | 1-63/64" |
WEIGHT | 0.15 lbs |
DRIVE SIZE | 1/4" |
POINT SIZE | 6 |
FINISH | Full Polish |
LENGTH TYPE | Deep |
UNIT OF MEASURE | Metric |
SPECIFICATION ASME | ASME B107.110-2012 |
SPECIFICATION AS | SAE AS4984A |
