Proto | SKU:
J473-8X3-16-TT

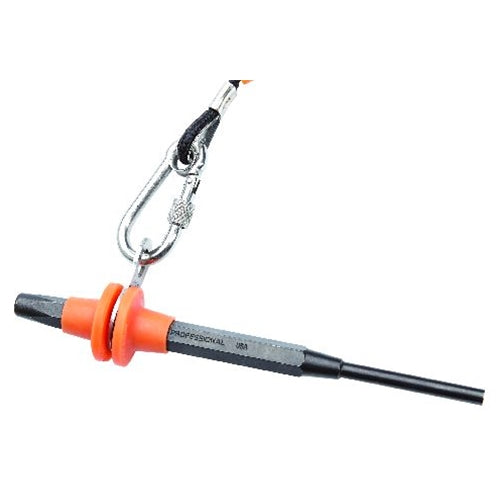

Proto J473-8X3-16-TT Tether-Ready 3/16" Pin Punch
$31.93
$50.65
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) TETHER-READY PIN PUNCH
FEATURES:
• Two-piece design allows the tip to be hard for durability while allowing it to be produced straight to help prevent binding.
• Reverse taper to help prevent binding.
• Made from S2 steel and specially heat-treated for greater strength and durability.
• Modified parabolic striking end to help reduce mushrooming and chipping.
• Black oxide finish to help prevent rust corrosion; extending tool life and performance.
• A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.
SPECIFICATIONS:
• SIZE: 3/16"
• TIP WIDTH: 3/16"
• SHANK WIDTH: 3/8"
• BLADE LENGTH: 1-5/8"
• STRIKING END DIAMETER: 11/32"
• OVERALL LENGTH: 5-7/8"
• WEIGHT: 0.15 lbs
• SPECIFICATION ASME: ASME B107.48
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
• (1) TETHER-READY PIN PUNCH
FEATURES:
• Two-piece design allows the tip to be hard for durability while allowing it to be produced straight to help prevent binding.
• Reverse taper to help prevent binding.
• Made from S2 steel and specially heat-treated for greater strength and durability.
• Modified parabolic striking end to help reduce mushrooming and chipping.
• Black oxide finish to help prevent rust corrosion; extending tool life and performance.
• A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.
SPECIFICATIONS:
• SIZE: 3/16"
• TIP WIDTH: 3/16"
• SHANK WIDTH: 3/8"
• BLADE LENGTH: 1-5/8"
• STRIKING END DIAMETER: 11/32"
• OVERALL LENGTH: 5-7/8"
• WEIGHT: 0.15 lbs
• SPECIFICATION ASME: ASME B107.48
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
