At a Glance
Handle Type
Straight
Overall Length
5-3/16 in
Punch Type
Pin
Material
Tool Steel
Sold As
Individual
Color
Black
Finish
Black Oxide
Description
Description
INCLUDES:

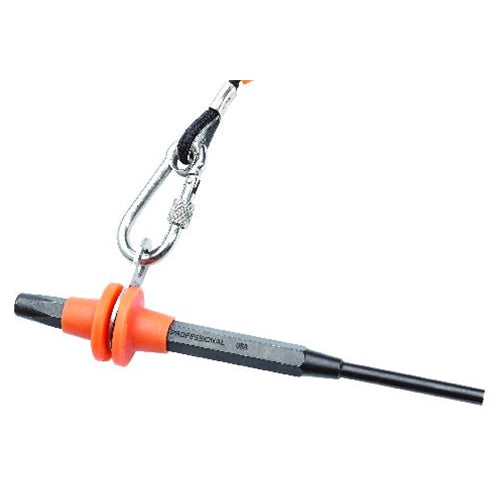

• (1) TETHER-READY PIN PUNCH
FEATURES:
• Two-piece design allows the tip to be hard for durability while allowing it to be produced straight to help prevent binding.
• Reverse taper to help prevent binding.
• Made from S2 steel and specially heat-treated for greater strength and durability.
• Modified parabolic striking end to help reduce mushrooming and chipping.
• Black oxide finish to help prevent rust corrosion; extending tool life and performance.
• A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.
SPECIFICATIONS:
• SIZE: 1/8"
• TIP WIDTH: 1/8"
• SHANK WIDTH: 5/16"
• BLADE LENGTH: 1-3/16"
• STRIKING END DIAMETER: 9/32"
• OVERALL LENGTH: 5-3/16"
• WEIGHT: 0.09 lbs
• SPECIFICATION ASME: ASME B107.48
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
• (1) TETHER-READY PIN PUNCH
FEATURES:
• Two-piece design allows the tip to be hard for durability while allowing it to be produced straight to help prevent binding.
• Reverse taper to help prevent binding.
• Made from S2 steel and specially heat-treated for greater strength and durability.
• Modified parabolic striking end to help reduce mushrooming and chipping.
• Black oxide finish to help prevent rust corrosion; extending tool life and performance.
• A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.
SPECIFICATIONS:
• SIZE: 1/8"
• TIP WIDTH: 1/8"
• SHANK WIDTH: 5/16"
• BLADE LENGTH: 1-3/16"
• STRIKING END DIAMETER: 9/32"
• OVERALL LENGTH: 5-3/16"
• WEIGHT: 0.09 lbs
• SPECIFICATION ASME: ASME B107.48
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
