Proto  |  SKU: J5008M  |  Barcode: 662679160647

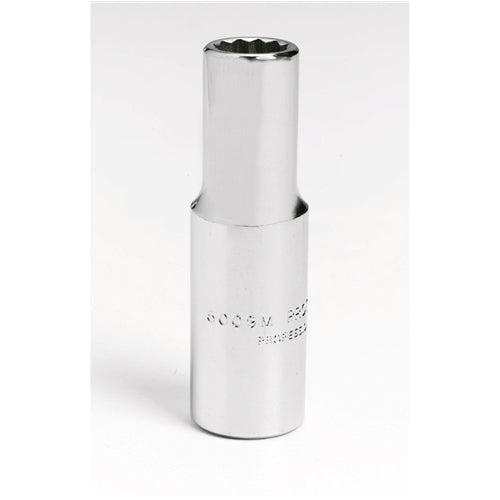

Proto J5008M 3/8" Drive Deep Socket 8 mm - 12 Point

$8.56 $14.28

Description

Proto J5008M Includes

  • (1) 3/8" DRIVE DEEP SOCKET 8 MM - 12 POINT

Proto J5008M Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J5008M Specifications

SIZE 8 mm
NUT END OUTSIDE DIAMETER 15/32"
DRIVE END OUTSIDE DIAMETER 21/32"
NUT DEPTH 25/64"
BOLT CLEARANCE DEPTH 1-47/64"
OVERALL LENGTH 2-1/8"
WEIGHT 0.10 lbs
DRIVE SIZE 3/8"
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASURE Metric
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS955
